TE Connectivity 749084-5 D-Type Connector: Equivalent & Substitute Parts

Part Overview

The TE Connectivity 749084-5 is a 50-position D-Type plug connector with right-angle solder termination, designed for through-hole mounting applications. This connector belongs to the AMPLIMITE .050 III series and features male pins with shielded construction. The part is classified as obsolete, making identification of equivalent and substitute components essential for ongoing system support, maintenance, and new production alternatives where direct sourcing becomes unavailable.

Substiute Parts

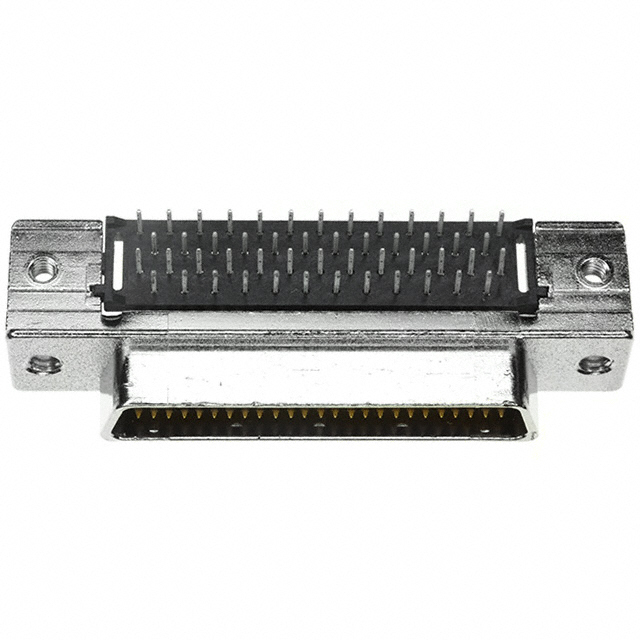

749084-5

TE Connectivity AMP ConnectorsIn Stock: 891749084-5 Datasheet

Current PartRFQ

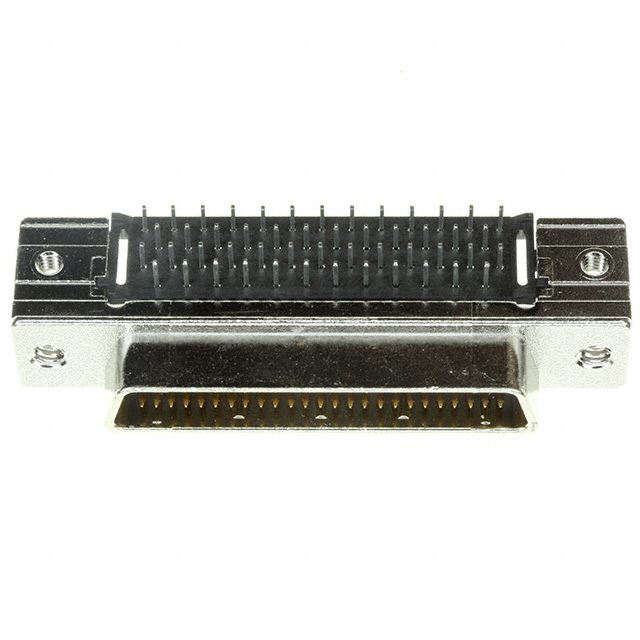

5749084-5

TE Connectivity AMP ConnectorsIn Stock: 16135749084-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of D-Type connectors is determined by strict equivalence across the following critical parameters:

Connector Architecture Parameters:

• Connector style (D-Type)
• Connector type (Plug with male pins)
• Number of positions (50)
• Number of rows (2)
• Shell size and connector layout (0.050 Pitch x 0.100 Row to Row)

Electrical Parameters:

• Current rating (1A)
• Voltage rating (30V)
• Contact finish (Gold)
• Contact material (Phosphor Bronze)

Mechanical Parameters:

• Mounting type (Through Hole, Right Angle)
• Termination method (Solder)
• Flange feature (Housing/Shell with 4-40 specification)
• Shielded construction

Environmental & Compliance Parameters:

• Operating temperature range (-55°C ~ 105°C)
• Material flammability rating (UL94 V-0)
• Dielectric material composition (Liquid Crystal Polymer, Polyester)

The substitute part 5749084-5 maintains complete equivalence across all these parameters, with the primary distinction being packaging format and RoHS compliance status.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement Applications:

The substitute part 5749084-5 provides complete functional and mechanical equivalence to the main part 749084-5. All critical electrical parameters, connector geometry, termination method, and environmental specifications are identical. This part is suitable for direct substitution in existing designs and applications.

Compliance Considerations:

The substitute part 5749084-5 carries RoHS Compliant status, whereas the main part 749084-5 lists RoHS status as not applicable. For applications subject to RoHS regulations or requiring RoHS-compliant components, the substitute part 5749084-5 is the appropriate selection.

Packaging Differences:

The substitute part 5749084-5 is supplied in tube packaging, whereas the main part packaging format is not specified. Packaging selection should be based on assembly process requirements and inventory management protocols.

Obsolescence Status:

Both parts are classified as obsolete. Component selection should prioritize availability and lead time considerations. Current inventory levels indicate 1581 pieces of the substitute part 5749084-5 are available, compared to 809 pieces of the main part 749084-5.

Frequently Asked Questions (FAQ)

Q: Can 5749084-5 be used as a direct replacement for 749084-5 in existing assemblies?

A: Yes. The substitute part 5749084-5 maintains complete equivalence across all functional, electrical, and mechanical parameters. Pin configuration, connector geometry, solder termination, electrical ratings, and environmental specifications are identical.

Q: What is the difference between these two part numbers?

A: The primary differences are packaging format (tube for 5749084-5 versus unspecified for 749084-5) and RoHS compliance status (RoHS Compliant for 5749084-5 versus not applicable for 749084-5). All connector specifications and electrical characteristics are identical.

Q: Are both parts from the same manufacturer?

A: Yes. Both 749084-5 and 5749084-5 are manufactured by TE Connectivity AMP Connectors and belong to the AMPLIMITE .050 III series.

Q: What does the 50-position configuration mean?

A: The connector accommodates 50 signal contacts arranged in 2 rows with 0.050-inch pitch spacing between contacts and 0.100-inch spacing between rows. This is the standard D-Type 50-position layout.

Q: Are these connectors suitable for high-temperature applications?

A: Yes. Both parts are rated for operating temperatures from -55°C to 105°C and carry a UL94 V-0 flammability rating, indicating suitability for industrial and demanding thermal environments.

Q: What is the current-carrying capacity of these connectors?

A: Each contact is rated for 1 ampere at 30 volts maximum. Total system current capacity depends on the number of active contacts and circuit design.

Q: Why is RoHS compliance status different between the two parts?

A: The substitute part 5749084-5 is explicitly RoHS Compliant, while the main part 749084-5 lists RoHS status as not applicable. This distinction reflects manufacturing date and regulatory classification. For applications requiring RoHS compliance, 5749084-5 is the appropriate selection.

Q: Can these connectors be used in shielded applications?

A: Yes. Both parts feature shielded construction, providing electromagnetic interference protection suitable for signal integrity in sensitive applications.

Q: What termination method is used for these connectors?

A: Both parts use solder termination for through-hole mounting on printed circuit boards. The right-angle configuration positions the connector body perpendicular to the board surface.
