TE Connectivity AMP Connectors 749069-9 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 749069-9 is a 100 Position D-Type Receptacle connector with female sockets, designed for through-hole solder termination applications. This connector belongs to the AMPLIMITE .050 III series and features a shielded steel shell with nickel plating and gold-plated contacts. The part is currently in active production status with 1309 pieces available in new original inventory.

Alternative equivalent parts are necessary to support supply chain flexibility, inventory management, and compliance with evolving regulatory requirements across different manufacturing regions and procurement channels.

Substiute Parts

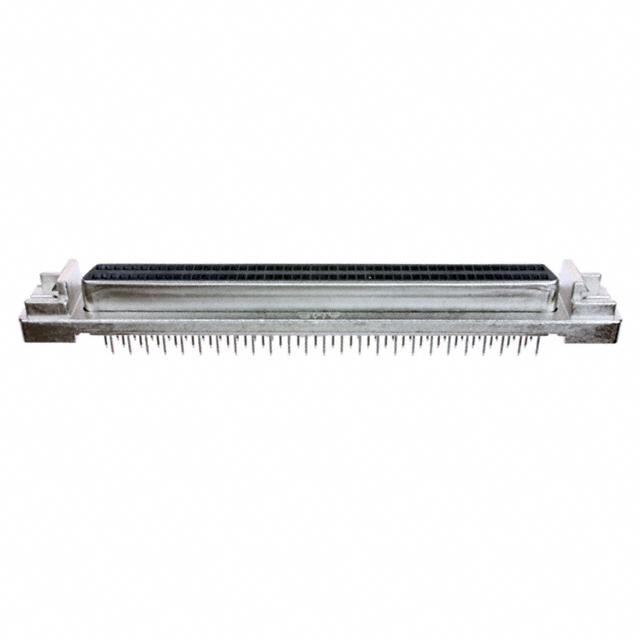

749069-9

TE Connectivity AMP ConnectorsIn Stock: 1411749069-9 Datasheet

Current PartRFQ

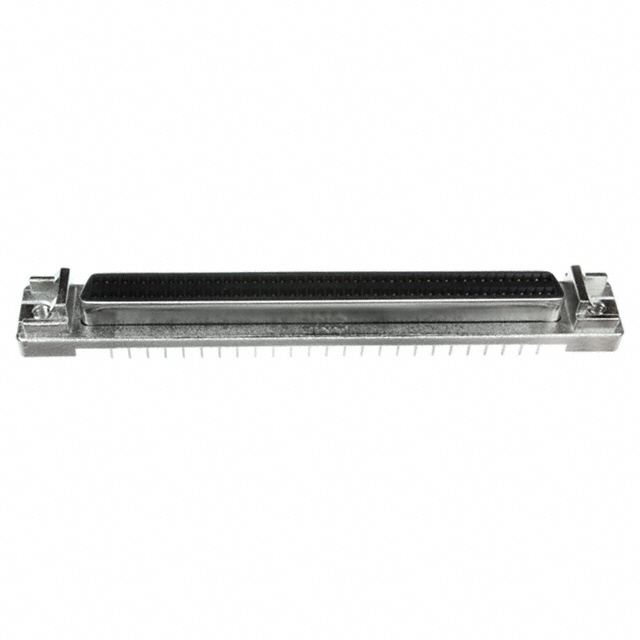

5749069-9

TE Connectivity AMP ConnectorsIn Stock: 22795749069-9 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of D-Type receptacle connectors is determined by strict equivalence across the following critical parameters:

Mechanical Compatibility Parameters:

• Connector style (D-Type)
• Connector type (Receptacle, Female Sockets)
• Number of positions (100)
• Number of rows (2)
• Shell size and connector layout (0.050 Pitch x 0.100 Row to Row)
• Mounting type (Through Hole)
• Flange feature configuration (Housing/Shell with 2-56 threads, Latchblocks, Rails)

Electrical Compatibility Parameters:

• Contact type (Signal)
• Termination method (Solder)
• Current rating (1A)
• Voltage rating (30V)
• Contact material (Phosphor Bronze)
• Contact finish (Gold)

Environmental & Compliance Parameters:

• Operating temperature range (-55°C ~ 105°C)
• Material flammability rating (UL94 V-0)
• Moisture sensitivity level (MSL 1 - Unlimited)
• Series designation (AMPLIMITE .050 III)

The substitute part 5749069-9 maintains full equivalence across all mechanical, electrical, and environmental parameters specified for the main part 749069-9.

Parameter Comparison

Engineering Selection Recommendations

Both the main part 749069-9 and substitute part 5749069-9 are manufactured by TE Connectivity AMP Connectors and maintain identical mechanical, electrical, and environmental specifications. Selection between these parts should be based on the following criteria:

For applications requiring RoHS compliance: Part 5749069-9 is designated as RoHS Compliant, whereas 749069-9 is marked as Not applicable. If regulatory requirements mandate RoHS compliance, 5749069-9 is the appropriate selection.

For applications subject to REACH regulations: Part 5749069-9 is designated as REACH Unaffected, whereas 749069-9 is marked as REACH Affected. If REACH compliance is a procurement requirement, 5749069-9 is the appropriate selection.

For supply chain and inventory considerations: Part 5749069-9 has 2185 pieces in new original inventory compared to 1309 pieces for 749069-9, providing greater availability for high-volume production requirements.

For applications without specific compliance mandates: Either part is functionally equivalent and interchangeable based on all provided electrical, mechanical, and environmental parameters.

Both parts are in active production status and carry identical electrical ratings, operating temperature ranges, and material specifications.

Frequently Asked Questions (FAQ)

Q: Are parts 749069-9 and 5749069-9 mechanically interchangeable?

A: Yes. Both parts are 100 Position D-Type Receptacles with identical shell sizes (0.050 Pitch x 0.100 Row to Row), mounting types (Through Hole), and flange configurations. They are direct mechanical substitutes.

Q: What is the difference between these two part numbers?

A: The primary differences are regulatory compliance designations. Part 5749069-9 is RoHS Compliant and REACH Unaffected, while 749069-9 is marked as Not applicable for RoHS and REACH Affected. All electrical and mechanical specifications are identical.

Q: Can I use 5749069-9 as a replacement for 749069-9 in existing designs?

A: Yes. Part 5749069-9 maintains full equivalence across all mechanical, electrical, and environmental parameters. The substitute part offers enhanced compliance status without any functional or performance differences.

Q: Are the contact materials and finishes identical?

A: Yes. Both parts feature Phosphor Bronze contacts with gold plating, ensuring identical electrical performance and signal integrity.

Q: What is the current and voltage rating for these connectors?

A: Both parts are rated for 1A current and 30V voltage, suitable for signal-level applications within the specified operating temperature range of -55°C to 105°C.

Q: Do these connectors require any special handling or storage?

A: Both parts have Moisture Sensitivity Level (MSL) 1, classified as Unlimited, indicating no special moisture control measures are required during storage or handling.

Q: What is the packaging format for these parts?

A: Both parts are supplied in Tube packaging, standard for D-Type connector distribution.

Q: Are these parts suitable for high-reliability applications?

A: Both parts meet UL94 V-0 material flammability rating and feature shielded construction with gold-plated contacts, suitable for industrial and high-reliability applications within the specified electrical and thermal parameters.
