TE Connectivity 747548-2 D-Sub Receptacle Equivalent & Substitute Parts

Part Overview

The TE Connectivity 747548-2 is a 25-position D-Sub receptacle connector with female sockets, designed for IDC (Insulation Displacement Contact) and discrete wire termination. This connector is part of the AMPLIMITE HDE-20 series and features a shielded, free-hanging in-line mounting configuration with tin-plated steel shell and gold-plated contacts.

The 747548-2 carries an obsolete product status. Locating equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or field replacement requirements for legacy systems utilizing this connector specification.

Substiute Parts

747548-2

TE Connectivity AMP ConnectorsIn Stock: 895747548-2 Datasheet

Current PartRFQ

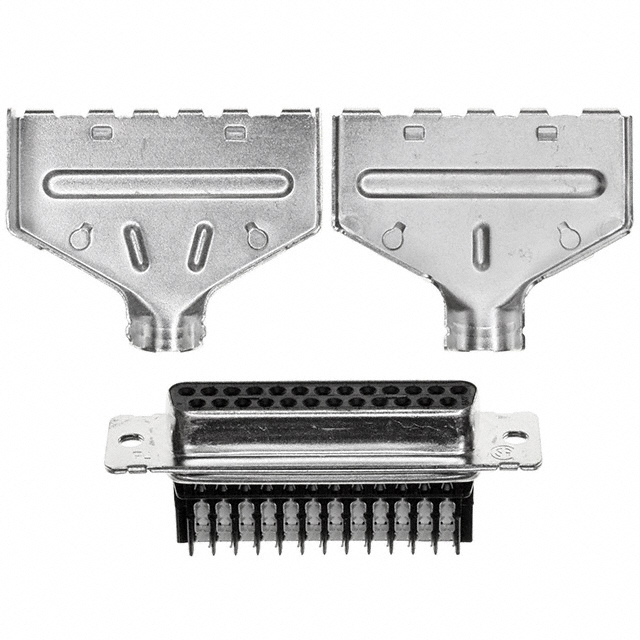

747548-8

TE Connectivity AMP ConnectorsIn Stock: 797747548-8 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the TE Connectivity 747548-2 are identified based on strict electrical and mechanical parameter equivalence within the D-Sub receptacle connector category. The substitution logic is based on the following critical parameters:

Connector Configuration Parameters:

• Connector style (D-Sub)
• Connector type (Receptacle, Female Sockets)
• Number of positions (25)
• Number of rows (2)
• Shell size and layout (3 / DB, B)

Electrical and Environmental Parameters:

• Termination method (IDC, Discrete Wire)
• Voltage rating (250V)
• Operating temperature range (-55°C ~ 105°C)
• Wire gauge compatibility (22-26 AWG)
• Contact material (Phosphor Bronze)

Physical and Material Parameters:

• Mounting type (Free Hanging / In-Line)
• Shell material and finish (Steel, Tin Plated)
• Contact finish (Gold)
• Contact finish thickness (30.0µin / 0.76µm)
• Flange feature (Housing/Shell, Unthreaded)
• Dielectric material (Thermoplastic)
• Flammability rating (UL94 V-0)

Parts meeting all these parameters are classified as direct substitutes and maintain full functional and mechanical compatibility with the original 747548-2 specification.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 747548-8 is the direct substitute for the obsolete 747548-2. Both connectors share identical electrical, mechanical, and environmental specifications within the AMPLIMITE HDE-20 series.

Product Status Consideration: The 747548-2 is classified as obsolete, while the 747548-8 maintains active product status. Selection of the 747548-8 ensures continued availability and supply chain support for new production builds and field replacements.

Compliance and Certification: The 747548-8 provides enhanced regulatory compliance compared to the 747548-2. The substitute part is ROHS3 compliant and carries REACH Unaffected status, whereas the original part is RoHS non-compliant with vendor-undefined REACH status. For applications subject to environmental regulations or customer compliance requirements, the 747548-8 is the appropriate selection.

Functional Equivalence: All electrical parameters, contact specifications, termination methods, and environmental ratings are identical between the two parts. The 747548-8 provides complete functional interchangeability with the 747548-2 in all circuit applications and mounting configurations.

Frequently Asked Questions (FAQ)

Q: Can the 747548-8 be used as a direct replacement for the 747548-2 in existing designs?

A: Yes. The 747548-8 is electrically and mechanically equivalent to the 747548-2. All connector specifications, including pin count, shell size, termination method, voltage rating, temperature range, and contact materials are identical. The 747548-8 provides direct interchangeability in all applications.

Q: What is the primary difference between the 747548-2 and 747548-8?

A: The primary differences are product status and regulatory compliance. The 747548-2 is obsolete, while the 747548-8 is active. The 747548-8 is ROHS3 compliant and REACH Unaffected, whereas the 747548-2 is RoHS non-compliant with vendor-undefined REACH status.

Q: Are there packaging differences between these two parts?

A: The 747548-2 packaging specification is not defined in the available data. The 747548-8 is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: Does the 747548-8 support the same wire gauge and termination methods as the 747548-2?

A: Yes. Both parts support 22-26 AWG wire gauge and IDC (Insulation Displacement Contact) or discrete wire termination methods. Termination compatibility is complete.

Q: Are the contact materials and finishes identical?

A: Yes. Both connectors feature phosphor bronze contacts with 30.0µin (0.76µm) gold plating. Contact material, finish type, and finish thickness are identical.

Q: What is the operating temperature range for both connectors?

A: Both the 747548-2 and 747548-8 operate across the temperature range of -55°C to 105°C. Environmental performance is equivalent.

Q: Is the 747548-8 suitable for applications requiring RoHS compliance?

A: Yes. The 747548-8 is ROHS3 compliant. If your application or customer requirements mandate RoHS compliance, the 747548-8 meets this requirement, whereas the 747548-2 does not.
