TE Connectivity AMP Connectors 747467-2 D-Sub Plug Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 747467-2 is a 9-position D-Sub plug connector with right-angle solder termination, designed for through-hole mounting applications. This connector belongs to the AMPLIMITE HD-20 series and features male pins with gold-plated brass contacts. The part is currently active in production and maintains inventory availability of 946 pieces in tray packaging.

Substitute parts are identified when equivalent electrical and mechanical parameters align with the main part specifications, enabling direct functional replacement in circuit designs. Substitution becomes necessary when primary part availability is limited, packaging requirements differ, or compliance certifications require alternative sourcing.

Substiute Parts

747467-2

TE Connectivity AMP ConnectorsIn Stock: 1016747467-2 Datasheet

Current PartRFQ

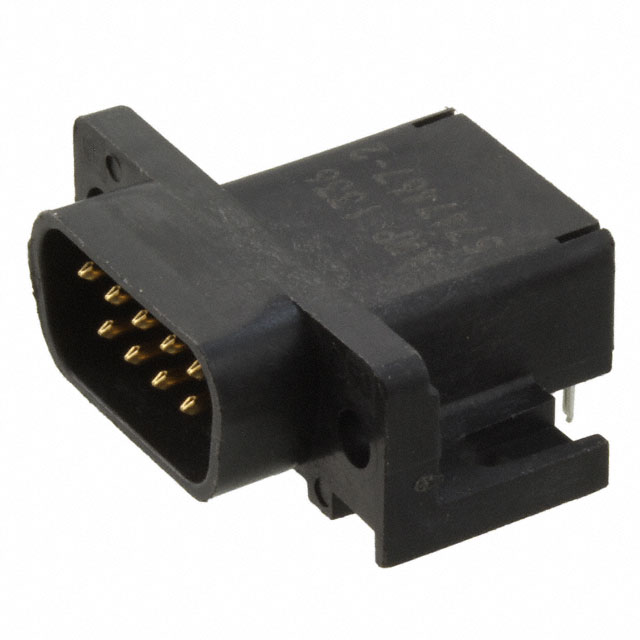

5747467-2

TE Connectivity AMP ConnectorsIn Stock: 12155747467-2 Datasheet

DirectRFQ

625-009-262-033

Mercury United Electronics, Inc.In Stock: 1082625-009-262-033 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 747467-2 are classified based on alignment with critical electrical and mechanical parameters that determine functional compatibility:

Primary Substitution Criteria:

• Connector style (D-Sub)
• Connector type (Plug, Male Pins)
• Number of positions (9)
• Number of rows (2)
• Shell size and layout (1 / DE, E)
• Mounting type (Through Hole, Right Angle)
• Termination method (Solder)
• Contact finish (Gold)
• Material flammability rating (UL94 V-0)
• Moisture sensitivity level (1 / Unlimited)

Direct Equivalent Classification: The substitute 5747467-2 maintains identical electrical and mechanical specifications to the main part, with the primary distinction being packaging format (bulk versus tray) and RoHS compliance status.

Similar Equivalent Classification: The substitute 625-009-262-033 shares core D-Sub connector architecture, 9-position configuration, and solder termination. Variations exist in current rating per contact (3A versus 6A), backset spacing tolerance (0.584" versus 0.590"), operating temperature maximum (85°C versus 105°C), and flange feature design (female screwlock versus unthreaded housing).

Parameter Comparison

Engineering Selection Recommendations

5747467-2 (Direct Equivalent - TE Connectivity AMP Connectors):

This substitute maintains complete electrical and mechanical equivalence to the 747467-2 across all critical parameters. The primary distinction is RoHS compliance status: the 5747467-2 is RoHS Compliant with REACH Unaffected certification, whereas the main part carries RoHS Non-Compliant status with Vendor Undefined REACH status. Selection of the 5747467-2 is appropriate for applications requiring RoHS compliance or when bulk packaging format is preferred. Inventory availability is higher at 1165 pieces compared to 946 pieces for the main part.

625-009-262-033 (Similar Equivalent - Mercury United Electronics, Inc.):

This substitute shares the core D-Sub 9-position connector architecture and solder termination method. However, three parameter variations require engineering evaluation:

1. Current rating is specified as 3A per contact, compared to 6A for the main part. Applications requiring current levels above 3A per contact are not suitable for this substitute.

2. Operating temperature maximum is 85°C, compared to 105°C for the main part. Applications requiring operation above 85°C are not suitable for this substitute.

3. Backset spacing is 0.584" (14.84mm), compared to 0.590" (14.99mm) for the main part. PCB layout designs with tight spacing tolerances may require verification of mechanical fit.

The 625-009-262-033 carries ROHS3 Compliant and REACH Unaffected certifications, making it suitable for regulated applications. Additional features include board lock, grounding indents, mounting brackets, and shielding. Selection is appropriate for lower-current applications operating within the 85°C temperature limit.
