TE Connectivity 747462-2 D-Sub Receptacle Equivalent & Substitute Parts

Part Overview

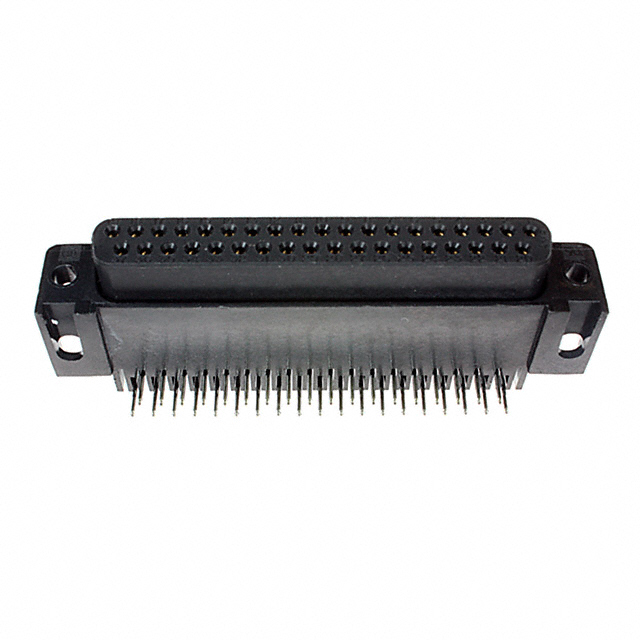

The TE Connectivity 747462-2 is a 37-position D-Sub receptacle connector with female sockets, designed for through-hole, right-angle solder termination applications. This connector belongs to the AMPLIMITE HD-20 series and is classified as an active product. Substitute parts are identified when inventory constraints, compliance requirements, or manufacturing discontinuation necessitate alternative component selection while maintaining electrical and mechanical compatibility.

Substiute Parts

747462-2

TE Connectivity AMP ConnectorsIn Stock: 913747462-2 Datasheet

Current PartRFQ

5747462-2

TE Connectivity AMP ConnectorsIn Stock: 14945747462-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 747462-2 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: D-Sub
• Connector Type: Receptacle, Female Sockets
• Number of Positions: 37
• Number of Rows: 2
• Shell Size, Connector Layout: 4 (DC, C)
• Mounting Type: Through Hole, Right Angle
• Termination: Solder
• Current Rating: 6A
• Voltage Rating: 125V
• Operating Temperature Range: -55°C ~ 105°C
• Contact Finish: Gold, 30.0µin (0.76µm)
• Contact Material: Phosphor Bronze
• Backset Spacing: 0.590" (14.99mm)
• Material Flammability Rating: UL94 V-0
• Flange Feature: Housing/Shell (Unthreaded)
• Color: Black
• Series: AMPLIMITE HD-20

Parts meeting all these parameters are classified as direct equivalents and may be substituted without design modification or re-qualification.

Parameter Comparison

Engineering Selection Recommendations

The substitute part 5747462-2 is electrically and mechanically equivalent to the main part 747462-2 across all functional parameters. Both connectors are manufactured by TE Connectivity, belong to the AMPLIMITE HD-20 series, and maintain identical specifications for connector configuration, electrical ratings, and environmental performance.

The primary distinction between these parts is RoHS compliance status. The 5747462-2 is RoHS Compliant, while the 747462-2 is RoHS non-compliant. Selection between these parts should be based on applicable regulatory requirements for the end application. Both parts are classified as active products with continuous manufacturer support.

Inventory availability differs between the two parts, with 5747462-2 currently stocked at higher quantities (1460 Pcs) compared to 747462-2 (810 Pcs).

Frequently Asked Questions (FAQ)

Q: Can 5747462-2 be used as a direct replacement for 747462-2 in existing designs?

A: Yes. The 5747462-2 is electrically and mechanically equivalent to 747462-2. All functional parameters, including connector type, pin count, electrical ratings, and physical dimensions, are identical. No design modification is required for substitution.

Q: What is the difference between 747462-2 and 5747462-2?

A: The primary difference is RoHS compliance status. The 5747462-2 is RoHS Compliant, while 747462-2 is RoHS non-compliant. All other electrical, mechanical, and environmental specifications are identical.

Q: Are both parts from the same manufacturer?

A: Yes. Both 747462-2 and 5747462-2 are manufactured by TE Connectivity AMP Connectors and belong to the AMPLIMITE HD-20 series.

Q: What are the electrical specifications for these D-Sub receptacles?

A: Both connectors are rated for 6A current and 125V voltage, with an operating temperature range of -55°C to 105°C. Contact finish is gold plated at 30.0µin (0.76µm) thickness over phosphor bronze base material.

Q: What is the connector configuration?

A: Both parts are 37-position D-Sub receptacles with female sockets, arranged in 2 rows, shell size 4 (DC, C), with through-hole, right-angle solder termination.

Q: Are these connectors suitable for high-temperature applications?

A: Yes. Both connectors are rated for operating temperatures up to 105°C and down to -55°C, with UL94 V-0 material flammability rating.

Q: What packaging format is used for these connectors?

A: Both parts are supplied in tray packaging.

Q: Can these connectors be used in applications requiring RoHS compliance?

A: The 5747462-2 is RoHS Compliant and suitable for applications with RoHS requirements. The 747462-2 is RoHS non-compliant and should not be used in applications requiring RoHS certification.
