TE Connectivity 747252-4 D-Sub Connector: Equivalent & Substitute Parts

Part Overview

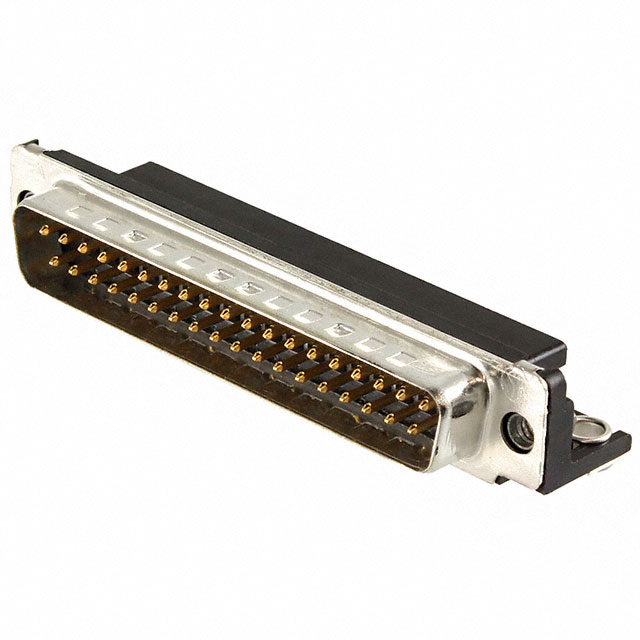

The TE Connectivity 747252-4 is a 37-position D-Sub plug connector with right-angle solder termination, designed for through-hole mounting applications. This connector belongs to the AMPLIMITE HD-20 series and features male pins with a 2-row configuration in shell size 4 (DC, C). The part is currently active in production with 690 pieces available in bulk packaging.

Substitute parts are necessary when bulk packaging is unavailable, when alternative compliance certifications are required, or when sourcing from multiple manufacturers is required for supply chain continuity. The substitute parts listed maintain functional equivalence through matching electrical and mechanical parameters while offering different packaging options and manufacturer sources.

Substiute Parts

747252-4

TE Connectivity AMP ConnectorsIn Stock: 749747252-4 Datasheet

Current PartRFQ

5747252-4

TE Connectivity AMP ConnectorsIn Stock: 27875747252-4 Datasheet

DirectRFQ

174-E37-113R001

NorComp Inc.In Stock: 1369174-E37-113R001 Datasheet

SimilarRFQ

182-037-113R171

NorComp Inc.In Stock: 1001182-037-113R171 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the TE Connectivity 747252-4 is determined by the following critical parameters:

Mandatory Matching Parameters:

• Connector type: D-Sub Plug with Male Pins
• Number of positions: 37
• Number of rows: 2
• Shell size and layout: 4 (DC, C)
• Mounting type: Through Hole, Right Angle
• Termination method: Solder
• Material flammability rating: UL94 V-0

Allowable Variation Parameters:

• Packaging format (Bulk, Tray)
• Manufacturer source (TE Connectivity, NorComp)
• Shell material finish (Tin Plated, Nickel Plated)
• Contact finish thickness (standard, Flash)
• Flange feature configuration (4-40 threaded, Unthreaded)
• Current rating (5A to 6A range)
• Operating temperature range (within -50°C to -55°C minimum and 100°C to 105°C maximum)
• Backset spacing (0.318" to 0.370")

The three substitute parts listed maintain all mandatory matching parameters while accommodating allowable variations in packaging, manufacturer, and secondary specifications.

Parameter Comparison

Engineering Selection Recommendations

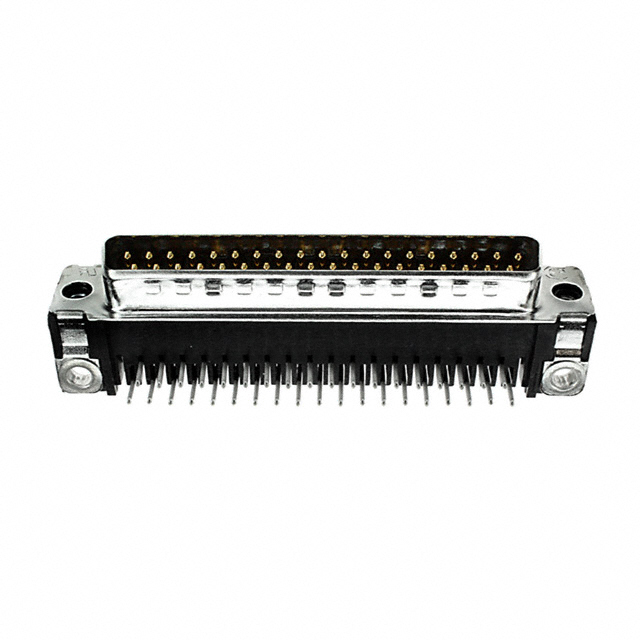

TE Connectivity 5747252-4 (Direct Manufacturer Substitute)

The 5747252-4 is the primary substitute option. This part is manufactured by TE Connectivity, the same manufacturer as the main part, and maintains identical electrical and mechanical specifications including 6A current rating, 125V voltage rating, and -55°C to 105°C operating temperature range. The primary difference is packaging format (Tray versus Bulk) and RoHS3 compliance certification. The 5747252-4 is suitable for applications requiring ROHS3 compliance documentation and offers higher inventory availability (2762 pieces).

NorComp 174-E37-113R001 (Alternative Manufacturer Substitute)

The 174-E37-113R001 provides substitution from an alternative manufacturer with active product status. This part maintains the 37-position, 2-row D-Sub plug configuration with solder termination and UL94 V-0 flammability rating. Notable differences include reduced current rating (5A versus 6A), unthreaded flange feature, nickel-plated shell finish, and slightly different backset spacing (0.370" versus 0.318"). Operating temperature range is -50°C to 100°C, which is narrower than the main part. This substitute is appropriate for applications with lower current requirements and where nickel plating is acceptable.

NorComp 182-037-113R171 (Alternative Manufacturer Substitute)

The 182-037-113R171 provides substitution from NorComp with matching backset spacing (0.318") and operating temperature range (-55°C to 105°C) to the main part. This connector features a 4-40 threaded flange, ground strap, and grounding indents identical to the main part. The primary limitation is reduced current rating (5A versus 6A) and nickel-plated shell finish. This substitute is appropriate for applications with lower current requirements and where the matching backset spacing and temperature range are critical.

All substitute parts maintain active product status and are manufactured by established connector suppliers with ROHS3 compliance certification.
