Part Overview

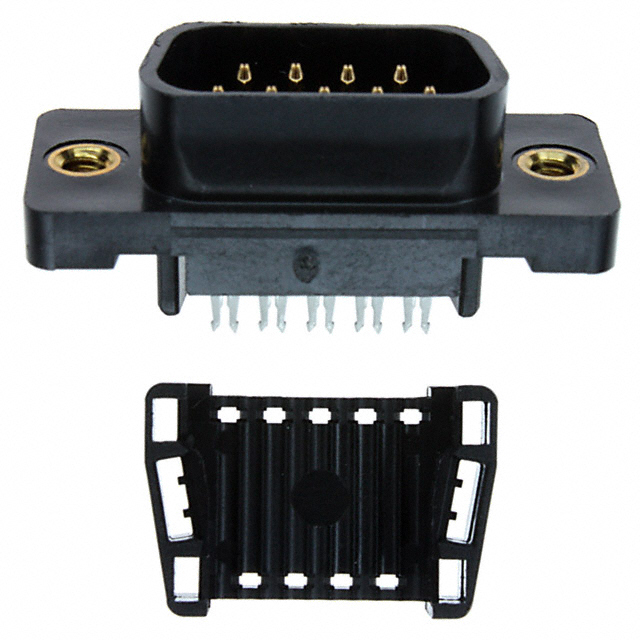

The TE Connectivity 747053-4 is a 9-position D-Sub plug connector with male pins, designed for IDC ribbon cable termination in free-hanging inline applications. This connector belongs to the AMPLIMITE HDF-20 series and features a DE/E shell size with gold-plated phosphor bronze contacts rated for 1.25A operation across a temperature range of -55°C to 105°C.

The 747053-4 carries an obsolete product status. Locating equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or field replacement requirements for systems utilizing this connector configuration.

Substiute Parts

747053-4

TE Connectivity AMP ConnectorsIn Stock: 1144747053-4 Datasheet

Current PartRFQ

1658611-4

TE Connectivity AMP ConnectorsIn Stock: 24101658611-4 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 747053-4 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Connector style (D-Sub)
• Connector type (Plug, Male Pins)
• Number of positions (9)
• Number of rows (2)
• Shell size and layout (1, DE/E)
• Mounting type (Free Hanging, In-Line)
• Termination method (IDC, Ribbon Cable)
• Contact material (Phosphor Bronze)
• Contact finish (Gold)
• Current rating (1.25A)
• Operating temperature range (-55°C to 105°C)
• Flange feature (Housing/Shell 4-40)
• Dielectric material (Thermoplastic)
• Series designation (AMPLIMITE HDF-20)

The substitute part 1658611-4 meets all mandatory matching parameters and is therefore classified as a direct equivalent for the obsolete 747053-4.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1658611-4 is a direct functional equivalent to the obsolete 747053-4 across all critical electrical and mechanical parameters. Both connectors share identical specifications for connector configuration, contact materials, current ratings, and operating temperature ranges.

The 1658611-4 offers the following advantages for component selection:

Product Status: The 1658611-4 maintains active product status, ensuring ongoing manufacturer support and supply chain continuity compared to the obsolete 747053-4.

Regulatory Compliance: The 1658611-4 is ROHS3 compliant, whereas the 747053-4 is RoHS non-compliant. This distinction is significant for applications subject to RoHS regulations and environmental compliance requirements.

Inventory Availability: The 1658611-4 has higher inventory availability (2400 Pcs) compared to the 747053-4 (1100 Pcs), supporting both immediate procurement and long-term supply planning.

Packaging: The 1658611-4 is supplied in bulk packaging, facilitating integration into manufacturing workflows.

Both connectors are classified under the same ECCN (EAR99) and HTSUS (8536.69.4051) codes, indicating equivalent export and tariff treatment.
