TE Connectivity 747053-3 D-Sub Connector Equivalent & Substitute Parts

Part Overview

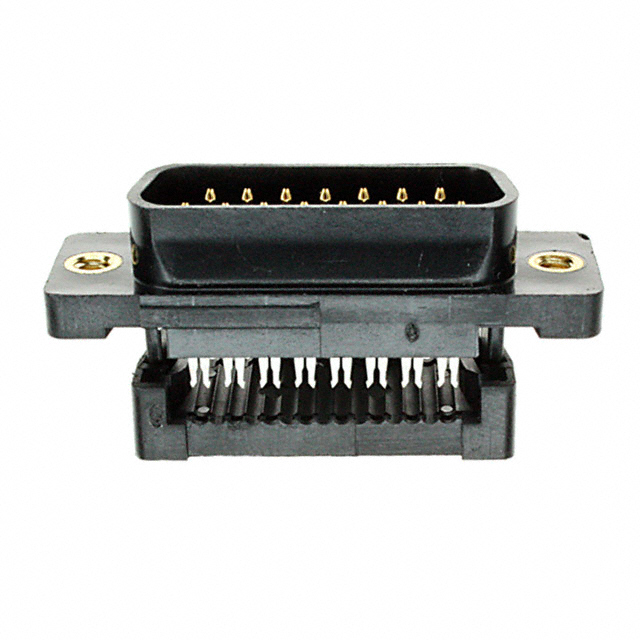

The TE Connectivity 747053-3 is a 15-position D-Sub plug connector with male pins, designed for IDC ribbon cable termination in free-hanging inline applications. This connector is part of the AMPLIMITE HDF-20 series and features a 2-row shell layout (DA, A size) with gold-plated phosphor bronze contacts rated for 1.25A operation across a temperature range of -55°C to 105°C.

The 747053-3 carries an obsolete product status, indicating it is no longer in active production. Locating equivalent substitute parts is necessary to maintain design continuity, ensure supply chain reliability, and support ongoing system maintenance and repairs.

Substiute Parts

747053-3

TE Connectivity AMP ConnectorsIn Stock: 1092747053-3 Datasheet

Current PartRFQ

1658611-3

TE Connectivity AMP ConnectorsIn Stock: 20101658611-3 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity 747053-3 is based on electrical and mechanical parameter equivalence within the D-Sub connector category. The substitute part must satisfy the following critical parameters:

Electrical Compatibility:

• 15-position connector configuration
• 2-row shell layout (DA, A size)
• Male pin connector type
• 1.25A current rating
• Gold contact finish
• Phosphor bronze contact material
• Operating temperature range of -55°C to 105°C

Mechanical Compatibility:

• D-Sub plug connector style
• Free-hanging inline mounting
• IDC ribbon cable termination
• Housing/Shell flange with 4-40 mounting
• Thermoplastic dielectric material
• UL94 V-0 flammability rating
• Black color

Series Compatibility:

• AMPLIMITE HDF-20 series designation

The substitute part TE Connectivity 1658611-3 meets all specified electrical and mechanical parameters, ensuring direct functional equivalence for circuit board integration and system performance.

Parameter Comparison

Engineering Selection Recommendations

The TE Connectivity 1658611-3 is the direct substitute for the obsolete 747053-3 connector. Selection of the 1658611-3 is based on the following engineering criteria:

Product Status Alignment: The 1658611-3 maintains active production status, ensuring long-term availability and supply chain continuity. The obsolete 747053-3 presents supply risk and should be replaced in new designs and system updates.

Electrical and Mechanical Equivalence: All critical electrical parameters (15-position configuration, 1.25A current rating, gold contact finish, phosphor bronze contacts, -55°C to 105°C operating range) and mechanical parameters (D-Sub plug style, free-hanging inline mounting, IDC ribbon cable termination, 4-40 flange mounting) are identical between the two parts.

Compliance and Certification: The 1658611-3 is RoHS compliant, meeting current environmental and regulatory requirements. Both parts carry identical UL94 V-0 flammability ratings and MSL 1 moisture sensitivity levels, confirming equivalent reliability characteristics.

Series Continuity: Both connectors belong to the AMPLIMITE HDF-20 series, ensuring design compatibility and interchangeability within existing circuit board layouts and connector mating interfaces.

Frequently Asked Questions (FAQ)

Q: Can the 1658611-3 directly replace the 747053-3 in existing applications?

A: Yes. The 1658611-3 is electrically and mechanically equivalent to the 747053-3. Both connectors share identical pin configurations, current ratings, operating temperature ranges, contact materials, and mounting specifications. Direct substitution is supported without circuit design modifications.

Q: What is the primary advantage of switching to the 1658611-3?

A: The 1658611-3 is in active production status, whereas the 747053-3 is obsolete. This ensures reliable supply availability, reduces procurement lead times, and eliminates the risk of component discontinuation. Additionally, the 1658611-3 is RoHS compliant, meeting modern environmental standards.

Q: Are there any differences in contact finish specifications between these connectors?

A: Both connectors feature gold-plated contacts. The 747053-3 specifies a contact finish thickness of 30.0µin (0.76µm). The 1658611-3 does not specify contact finish thickness in the provided data; however, both parts maintain identical gold contact finish material and phosphor bronze base material.

Q: What is the wire gauge compatibility for the 1658611-3?

A: The 1658611-3 supports 26-28 AWG wire gauge in both stranded and solid configurations for IDC ribbon cable termination. This specification is provided for the substitute part and ensures proper contact engagement and electrical performance.

Q: Are the packaging formats different between these parts?

A: The 747053-3 packaging format is not specified in the provided data. The 1658611-3 is supplied in tube packaging. Packaging differences do not affect electrical or mechanical compatibility; they only impact storage, handling, and inventory management procedures.

Q: Do both connectors meet the same flammability and moisture sensitivity standards?

A: Yes. Both the 747053-3 and 1658611-3 carry identical UL94 V-0 material flammability ratings and MSL 1 (Unlimited) moisture sensitivity levels. These certifications confirm equivalent reliability and environmental performance characteristics.

Q: What is the current inventory status for the 1658611-3?

A: The 1658611-3 has 1909 pieces in new original stock, providing immediate availability for procurement and deployment. The 747053-3 has 1055 pieces in stock but carries obsolete status, making it unsuitable for new system designs.
