TE Connectivity AMP Connectors 746611-1 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 746611-1 is an 8-position ribbon cable DIP header connector designed for through-hole mounting applications. This connector features IDC (Insulation Displacement Contact) termination, supporting 28 AWG stranded and 26-30 AWG solid wire gauges. The part operates with a 0.050" (1.27mm) cable pitch and 0.100" (2.54mm) board-side pitch across two rows with 0.300" (7.62mm) row spacing.

The 746611-1 is classified as obsolete. Locating equivalent substitute parts is necessary to ensure design continuity, maintain supply chain reliability, and access components with current product status and compliance certifications.

Substiute Parts

746611-1

TE Connectivity AMP ConnectorsIn Stock: 1199746611-1 Datasheet

Current PartRFQ

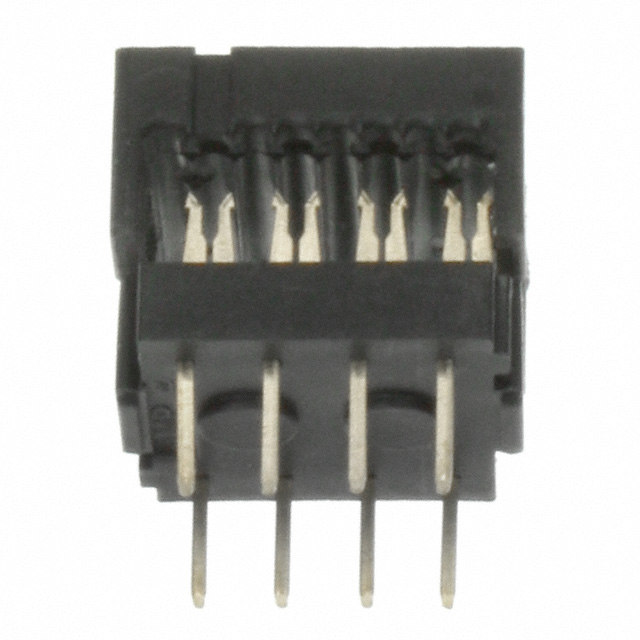

746611-7

TE Connectivity AMP ConnectorsIn Stock: 3338746611-7 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 746611-1 is based on electrical and mechanical parameter equivalence within the AMP-Latch series. The substitute part 746611-7 maintains identical specifications across all critical functional parameters:

Key Parameters for Substitution Compatibility:

• Connector type (Ribbon Cable, DIP Header)
• Number of positions (8)
• Cable pitch (0.050" / 1.27mm)
• Board-side pitch (0.100" / 2.54mm)
• Number of rows (2)
• Row spacing (0.300" / 7.62mm)
• Mounting type (Through Hole)
• Cable termination method (IDC)
• Wire gauge compatibility (28 AWG stranded; 26-30 AWG solid)
• Contact finish (Gold)
• Base product number (746611)

The 746611-7 is functionally equivalent to the 746611-1 and operates as a direct substitute in applications requiring these specifications.

Parameter Comparison

Engineering Selection Recommendations

The 746611-7 is the direct substitute for the obsolete 746611-1. Both parts share identical electrical and mechanical specifications, ensuring functional compatibility in all applications designed for the 746611-1.

Product Status Consideration: The 746611-1 is obsolete, while the 746611-7 maintains active product status. Selection of the 746611-7 ensures access to current manufacturing, ongoing availability, and supply chain continuity.

Compliance Advantage: The 746611-7 is ROHS3 compliant and REACH unaffected, whereas the 746611-1 is RoHS non-compliant with undefined REACH status. For applications subject to environmental regulations or customer compliance requirements, the 746611-7 is the appropriate selection.

Packaging and Inventory: The 746611-7 is supplied in tray packaging with higher inventory availability (3260 pieces versus 1129 pieces), supporting both prototype and production-volume requirements.

Frequently Asked Questions (FAQ)

Q: Are the 746611-1 and 746611-7 electrically and mechanically interchangeable?

A: Yes. Both parts are identical in connector type, position count, pitch specifications, mounting method, wire gauge compatibility, and contact finish. They operate as direct functional equivalents.

Q: What is the primary reason to substitute the 746611-1 with the 746611-7?

A: The 746611-1 is obsolete. The 746611-7 is an active product with current manufacturing status, ensuring reliable supply chain access and compliance with modern environmental standards.

Q: Does the 746611-7 meet RoHS requirements?

A: Yes. The 746611-7 is ROHS3 compliant. The 746611-1 is RoHS non-compliant. Applications requiring RoHS compliance must use the 746611-7.

Q: Are there packaging differences between these parts?

A: The 746611-7 is supplied in tray packaging. The 746611-1 packaging specification is not provided. Both parts are identical in form, fit, and function.

Q: Can the 746611-7 be used in existing designs specified for the 746611-1?

A: Yes. The 746611-7 is a direct substitute with no design modifications required. All electrical and mechanical parameters are equivalent.

Q: What wire gauges are supported by both connectors?

A: Both the 746611-1 and 746611-7 support 28 AWG stranded wire and 26-30 AWG solid wire through IDC termination.

Q: Is the REACH status different between these parts?

A: Yes. The 746611-7 is REACH unaffected, while the 746611-1 has undefined REACH status. For applications subject to REACH regulations, the 746611-7 is the appropriate selection.
