TE Connectivity 745994-4 D-Sub Connector Equivalent & Substitute Parts

Part Overview

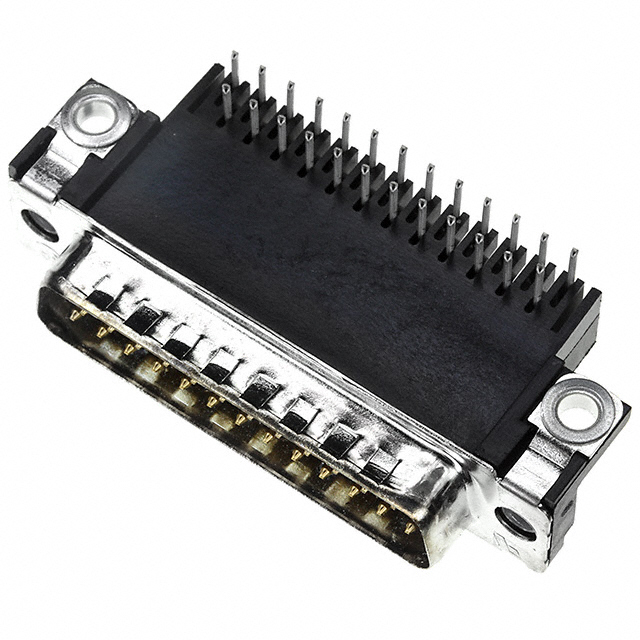

The TE Connectivity 745994-4 is a 25-position D-Sub plug connector with right-angle solder termination, designed for through-hole mounting applications. This connector is classified as obsolete, necessitating identification of active equivalent and substitute parts for ongoing production and maintenance requirements. The AMPLIMITE HD-20 series connector features male pins, tin-plated steel shell, and gold-plated brass contacts suitable for signal applications with 6A current capacity and 125V voltage rating across an operating temperature range of -55°C to 105°C.

Substiute Parts

745994-4

TE Connectivity AMP ConnectorsIn Stock: 785745994-4 Datasheet

Current PartRFQ

5745994-4

TE Connectivity AMP ConnectorsIn Stock: 9355745994-4 Datasheet

DirectRFQ

625-025-662-012

Mercury United Electronics, Inc.In Stock: 1001625-025-662-012 Datasheet

DirectRFQ

183-025-113R171

NorComp Inc.In Stock: 2225183-025-113R171 Datasheet

SimilarRFQ

183-025-113R481

NorComp Inc.In Stock: 988183-025-113R481 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete TE Connectivity 745994-4 is determined by strict alignment of the following critical parameters:

Primary Substitution Criteria:

• Connector style (D-Sub), type (Plug, Male Pins), and position count (25 positions, 2 rows)
• Shell size and layout (3 / DB, B)
• Mounting configuration (Through Hole, Right Angle)
• Termination method (Solder)
• Flange feature compatibility (Housing/Shell 4-40)
• Operating temperature range (-55°C ~ 105°C minimum)
• Material flammability rating (UL94 V-0)

Direct Equivalent: The TE Connectivity 5745994-4 is a direct equivalent, differing only in product status (Active vs. Obsolete), packaging format (Bulk), contact finish thickness specification (Flash vs. 30.0µin), and RoHS compliance status (Compliant vs. non-compliant).

Compatible Substitutes: The NorComp 183-025-113R171 and 183-025-113R481 maintain core D-Sub 25-position plug configuration, right-angle through-hole mounting, solder termination, and operating temperature range. These parts accommodate panel mount capability in addition to through-hole mounting and feature alternative shell finish (Nickel Plated) and dielectric material (Polyamide PA9T, Nylon 9T).

Limited Compatibility Substitute: The Mercury United Electronics 625-025-662-012 shares D-Sub 25-position plug configuration, right-angle mounting, and solder termination but operates at reduced current rating (3A per contact vs. 6A), lower maximum operating temperature (85°C vs. 105°C), and includes board edge mounting capability. Shell finish is Nickel Plated with Copper Alloy contacts and includes shielding features.

Parameter Comparison

Engineering Selection Recommendations

Primary Selection: TE Connectivity 5745994-4

The 5745994-4 is the recommended direct replacement for the obsolete 745994-4. This part maintains identical electrical and mechanical specifications, including 6A current rating, 125V voltage rating, and -55°C to 105°C operating temperature range. The primary advantages are active product status, RoHS compliance, and REACH unaffected classification, supporting modern supply chain and regulatory requirements. Packaging is supplied in bulk format.

Secondary Selection: NorComp 183-025-113R171

The 183-025-113R171 is suitable for applications requiring active product status and RoHS3 compliance. This connector maintains the 25-position D-Sub plug configuration, right-angle solder termination, and full -55°C to 105°C operating temperature range. The part accommodates both panel mount and through-hole mounting configurations. Current rating is 5A, which is acceptable for applications not requiring the full 6A capacity of the original part. Shell finish is Nickel Plated with Polyamide PA9T dielectric material.

Tertiary Selection: NorComp 183-025-113R481

The 183-025-113R481 provides an alternative with female screwlock mating-side flange feature in place of housing-side flange. This configuration is applicable when mating connector design requires screwlock engagement. Electrical and thermal specifications match the 183-025-113R171, with 5A current rating and -55°C to 105°C operating temperature range. RoHS3 and REACH compliance are confirmed.

Limited Compatibility: Mercury United Electronics 625-025-662-012

The 625-025-662-012 is applicable only for applications where reduced current capacity (3A per contact) and lower maximum operating temperature (85°C) are acceptable. This part includes board edge mounting capability and shielding features not present in the original connector. Backset spacing is 0.584" (14.84mm), representing a 0.16mm deviation from the original 0.590" specification. Selection of this part requires verification that application thermal and current requirements do not exceed specified limits.
