TE Connectivity 745919-2 D-Sub Backshell Connector Equivalent & Substitute Parts

Part Overview

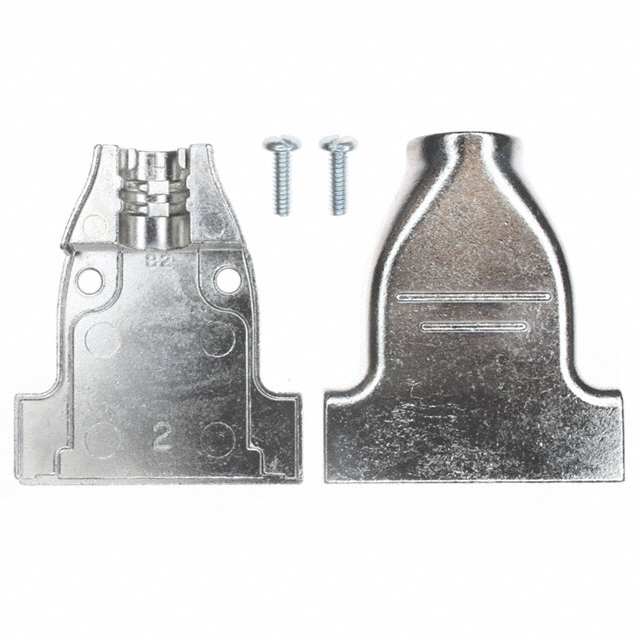

The TE Connectivity 745919-2 is a 15 Position Two Piece Backshell Connector with 180° cable exit, designed for D-Sub applications in the AMPLIMITE HD-20 series. This component provides shielded connectivity with metal construction and nickel over copper plating. The part is currently classified as obsolete, necessitating identification of active equivalent alternatives to maintain design continuity and ensure ongoing component availability for production and field service applications.

Substiute Parts

745919-2

TE Connectivity AMP ConnectorsIn Stock: 754745919-2 Datasheet

Current PartRFQ

5745919-2

TE Connectivity AMP ConnectorsIn Stock: 10865745919-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 745919-2 is determined by strict equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Number of Positions: 15
• Compatible Shell Size: A
• Compatible D-Sub Size: 15pos and HD26pos
• Cable Exit Angle: 180°
• Shielding: Shielded
• Primary Material: Metal, Zinc Alloy
• Plating: Nickel over Copper
• Accessory Type: Two Piece Backshell
• Cable Type: Round
• Series: AMPLIMITE HD-20

The substitute part 5745919-2 meets all mandatory matching parameters and is therefore classified as a direct equivalent. The primary distinction between the main part and its substitute is product status: the 745919-2 is obsolete, while 5745919-2 is active and available in production quantities.

Parameter Comparison

Engineering Selection Recommendations

The 5745919-2 is the direct equivalent substitute for the obsolete 745919-2. Selection of the substitute part is based on the following engineering criteria:

Product Status: The 5745919-2 maintains active product status with current manufacturing support, ensuring long-term availability and supply chain continuity. The 745919-2 is obsolete and no longer manufactured.

Compliance Status: The 5745919-2 is ROHS3 compliant, meeting current environmental and regulatory requirements for electronic components. The 745919-2 is RoHS non-compliant and does not meet modern regulatory standards.

Functional Equivalence: All electrical and mechanical parameters are identical between the two parts. The 5745919-2 provides identical performance characteristics, mechanical fit, and electrical properties as the original 745919-2.

Availability: The 5745919-2 is available in production quantities (1032 pcs in stock) with bulk packaging, supporting both new design implementation and field service requirements.

Frequently Asked Questions (FAQ)

Q: Can the 5745919-2 be used as a direct replacement for the 745919-2 in existing designs?

A: Yes. The 5745919-2 is a direct functional equivalent with identical electrical and mechanical specifications. All critical parameters including position count, shell size, cable exit angle, shielding, material composition, and plating are identical.

Q: What is the primary difference between these two parts?

A: The 745919-2 is obsolete and RoHS non-compliant, while the 5745919-2 is an active product that meets ROHS3 compliance standards. The 5745919-2 is the current production equivalent.

Q: Are there any compatibility concerns when substituting the 5745919-2 for the 745919-2?

A: No compatibility concerns exist. Both parts are compatible with 15-position and HD26-position D-Sub connectors with Shell Size A. The 180° cable exit angle, shielding configuration, and mechanical interface are identical.

Q: What is the difference in packaging between these parts?

A: The 745919-2 packaging is not specified in available documentation. The 5745919-2 is supplied in bulk packaging, suitable for production assembly and field service applications.

Q: Does the RoHS3 compliance of the 5745919-2 affect its electrical performance?

A: No. RoHS3 compliance relates to material composition and environmental standards, not electrical performance. The 5745919-2 maintains identical electrical characteristics to the 745919-2.

Q: Are both parts from the same manufacturer?

A: Yes. Both the 745919-2 and 5745919-2 are manufactured by TE Connectivity AMP Connectors and are part of the AMPLIMITE HD-20 series.

Q: What is the cable type compatibility for these backshells?

A: Both parts are designed for round cable types with 180° cable exit configuration.
