TE Connectivity 745918-2 D-Sub Backshell Equivalent & Substitute Parts
Part Overview
The TE Connectivity 745918-2 is a 15 Position Two Piece Backshell Connector with 90° cable exit and shielding, manufactured as part of the AMPLIMITE series. This component functions as a D-Sub connector accessory designed for round cable termination with metal construction and nickel over copper plating.
The 745918-2 carries an Obsolete product status. Identifying equivalent substitute parts is necessary to maintain design compatibility while ensuring access to actively manufactured alternatives that meet current regulatory and compliance requirements.
Substiute Parts
Key Parameters
| Parameter | Specification |
|---|---|
| Number of Positions | 15 |
| Cable Exit Angle | 90° |
| Shielding | Shielded |
| Compatible Shell Size | A |
| Compatible D-Sub Size | 15pos and HD26pos |
| Cable Type | Round |
| Accessory Type | Two Piece Backshell |
| Material | Metal, Zinc Alloy |
| Plating | Nickel over Copper |
| Color | Silver |
Substitute Part Grouping Explanation
Substitute parts for the 745918-2 are identified based on electrical and mechanical parameter equivalence. The following parameters must match for substitution validity:
- Number of Positions: 15
- Cable Exit Angle: 90°
- Shielding: Shielded
- Compatible Shell Size: A
- Compatible D-Sub Size: 15pos and HD26pos
- Cable Type: Round
- Accessory Type: Two Piece Backshell
- Material: Metal, Zinc Alloy
- Plating: Nickel over Copper
- Color: Silver

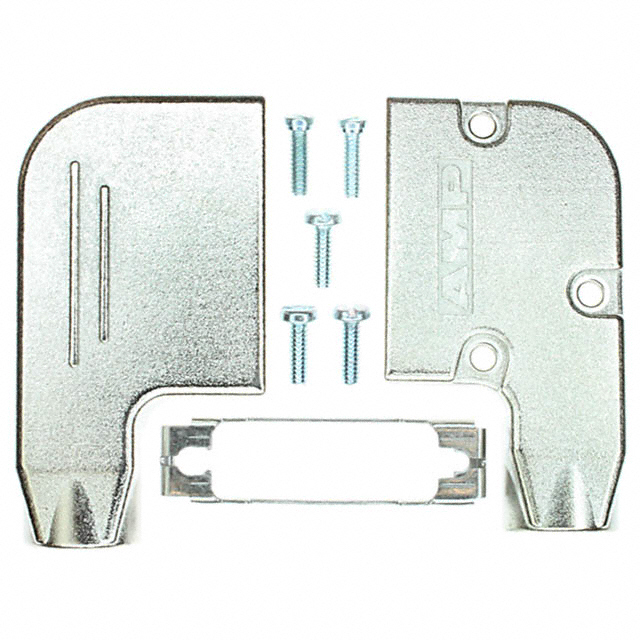

The substitute parts 5745652-2 and 5745652-3 satisfy all these parameters. Both are manufactured by TE Connectivity AMP Connectors within the AMPLIMITE series and maintain identical mechanical and electrical specifications to the original 745918-2 component.
Parameter Comparison
| Parameter | 745918-2 (Main Part) | 5745652-2 (Substitute) | 5745652-3 (Substitute) |
|---|---|---|---|
| Manufacturer | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors | TE Connectivity AMP Connectors |
| Series | AMPLIMITE | AMPLIMITE | AMPLIMITE |
| Number of Positions | 15 | 15 | 15 |
| Cable Exit | 90° | 90° | 90° |
| Shielding | Shielded | Shielded | Shielded |
| Compatible Shell Size | A | A | A |
| Compatible D-Sub Size | 15pos and HD26pos | 15pos and HD26pos | 15pos and HD26pos |
| Cable Type | Round | Round | Round |
| Accessory Type | Two Piece Backshell | Two Piece Backshell | Two Piece Backshell |
| Material | Metal, Zinc Alloy | Metal, Zinc Alloy | Metal, Zinc Alloy |
| Plating | Nickel over Copper | Nickel over Copper | Nickel over Copper |
| Color | Silver | Silver | Silver |
| Product Status | Obsolete | Active | Active |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | RoHS Compliant |
| REACH Status | Vendor Undefined | REACH Affected | REACH Affected |
| Moisture Sensitivity Level | 1 (Unlimited) | 1 (Unlimited) | 1 (Unlimited) |
| ECCN | EAR99 | EAR99 | EAR99 |
| HTSUS | 8538.90.8180 | 8538.90.8180 | 8538.90.8180 |
Engineering Selection Recommendations
Both 5745652-2 and 5745652-3 are direct functional equivalents to the obsolete 745918-2 based on identical electrical and mechanical parameters. The primary differentiators between substitute options are product status and regulatory compliance.
The 745918-2 is classified as Obsolete with RoHS non-compliant status and undefined REACH compliance. Both substitute parts carry Active product status, ensuring continued manufacturing availability and supply chain reliability.
5745652-2 is designated ROHS3 Compliant with REACH Affected status. 5745652-3 is designated RoHS Compliant with REACH Affected status. Both substitutes satisfy current regulatory frameworks for D-Sub connector accessories.
Selection between 5745652-2 and 5745652-3 depends on specific regulatory requirements within the end application. Both parts are manufactured in Bulk packaging and maintain identical mechanical and electrical specifications to the original component.
Frequently Asked Questions (FAQ)
Q: Can 5745652-2 or 5745652-3 be used as direct replacements for 745918-2?
A: Yes. Both substitute parts maintain identical specifications across all critical parameters including position count, cable exit angle, shielding configuration, compatible shell size, material composition, and plating. Mechanical and electrical compatibility is confirmed.
Q: What is the primary reason for substitution?
A: The 745918-2 carries Obsolete product status. The substitute parts 5745652-2 and 5745652-3 are Active products, ensuring continued availability and manufacturing support.
Q: How do the RoHS compliance statuses differ between the substitutes?
A: 5745652-2 is ROHS3 Compliant. 5745652-3 is RoHS Compliant. Both meet current regulatory requirements. Selection depends on specific application compliance mandates.
Q: Are there packaging differences between the main part and substitutes?
A: The 745918-2 packaging is not specified in available data. Both 5745652-2 and 5745652-3 are supplied in Bulk packaging.
Q: Do the substitute parts include additional features?
A: Both 5745652-2 and 5745652-3 include Slide Lock features. The 745918-2 features are not specified in available data.
Q: Are the REACH compliance statuses identical?
A: The 745918-2 has Vendor Undefined REACH status. Both 5745652-2 and 5745652-3 are designated REACH Affected, indicating defined regulatory status.
Q: What is the inventory availability for each part?
A: 745918-2 has 1041 Pcs in stock. 5745652-2 has 1518 Pcs in stock. 5745652-3 has 1339 Pcs in stock.
