TE Connectivity 745833-7 D-Sub Backshell Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 745833-7 is a 25 Position Two Piece Backshell Connector with 180° shielded cable exit, designed for D-Sub connector assemblies. This component is classified as an accessory backshell within the AMPLIMITE series and is currently listed as obsolete. The part features nickel over copper plating, thermoplastic construction, and assembly hardware including 4-40 mating screws.

Due to the obsolete product status of the 745833-7, locating equivalent substitute parts with active availability and current compliance certifications is necessary for ongoing production and maintenance applications.

Key Parameters

Parameter	Specification
Number of Positions	25
Accessory Type	Two Piece Backshell
Compatible Shell Size	B
Compatible D-Sub Size	25pos and HD44pos
Cable Exit Angle	180°
Shielding	Shielded
Cable Type	Round
Material	Thermoplastic
Plating	Nickel over Copper
Hardware	Assembly Hardware with 4-40 Mating Screws
Color	Silver

Substitute Part Grouping Explanation

Substitution eligibility for the 745833-7 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part must maintain identical specifications for:

Number of positions (25)
Accessory type (Two Piece Backshell)
Compatible shell size (B)
Compatible D-Sub sizes (25pos and HD44pos)
Cable exit angle (180°)
Shielding configuration (Shielded)
Cable type (Round)
Material composition (Thermoplastic)
Plating specification (Nickel over Copper)
Hardware configuration (4-40 Mating Screws)
Color (Silver)

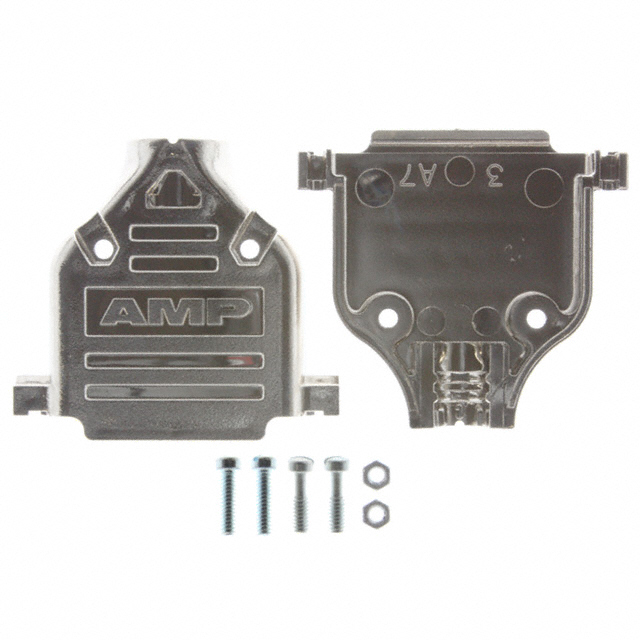

The TE Connectivity 5745833-7 meets all these criteria and qualifies as a direct equivalent substitute for the obsolete 745833-7 model.

Parameter Comparison

Parameter	745833-7 (Main Part)	5745833-7 (Substitute)
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Category	D-Sub, D-Shaped Connectors	D-Sub, D-Shaped Connectors
Series	AMPLIMITE	AMPLIMITE
Description	CONN BACKSHELL 25POS 180DEG SHLD	CONN BACKSHELL 25POS 180DEG SHLD
Number of Positions	25	25
Accessory Type	Two Piece Backshell	Two Piece Backshell
Compatible Shell Size	B	B
Compatible D-Sub Size	25pos and HD44pos	25pos and HD44pos
Cable Type	Round	Round
Cable Exit	180°	180°
Shielding	Shielded	Shielded
Primary Material	Plastic	Plastic
Material	Thermoplastic	Thermoplastic
Plating	Nickel over Copper	Nickel over Copper
Hardware	Assembly Hardware with 4-40 Mating Screws	Assembly Hardware with 4-40 Mating Screws
Color	Silver	Silver
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99
HTSUS	8538.90.8180	8538.90.8180
Product Status	Obsolete	Active
RoHS Status	RoHS non-compliant	RoHS Compliant
REACH Status	Vendor Undefined	REACH Affected
Packaging	Not specified	Bulk
Inventory Status	800 Pcs New Original In Stock	1347 Pcs New Original In Stock

Engineering Selection Recommendations

The TE Connectivity 5745833-7 is the direct equivalent substitute for the obsolete 745833-7 backshell connector. Both parts maintain identical electrical and mechanical specifications across all critical parameters including position count, cable exit angle, shielding configuration, and hardware specifications.

The primary distinction between these parts is regulatory and availability status. The 5745833-7 is classified as an active product with RoHS compliance certification and REACH affected status, whereas the 745833-7 is obsolete and RoHS non-compliant. The 5745833-7 offers superior long-term supply chain reliability with higher current inventory levels (1347 units versus 800 units).

For new designs and ongoing production requiring D-Sub 25 position shielded backshell connectors with 180° cable exit and Shell Size B compatibility, the 5745833-7 is the appropriate selection. The part maintains full mechanical and electrical interchangeability with the legacy 745833-7 while providing current regulatory compliance and active manufacturer support.

Frequently Asked Questions (FAQ)

Q: Is the 5745833-7 a direct replacement for the 745833-7?

A: Yes. The 5745833-7 is a direct equivalent substitute. Both parts share identical specifications for position count (25), cable exit angle (180°), shielding configuration, material composition, plating, and hardware specifications. The parts are mechanically and electrically interchangeable.

Q: What is the primary reason to transition from 745833-7 to 5745833-7?

A: The 745833-7 is classified as obsolete, while the 5745833-7 is an active product. The 5745833-7 also provides RoHS compliance certification and REACH affected status, meeting current regulatory requirements. Transitioning to the 5745833-7 ensures ongoing supply chain availability and regulatory compliance.

Q: Are there any differences in mechanical compatibility?

A: No. Both parts are compatible with Shell Size B and D-Sub connector sizes of 25pos and HD44pos. The two-piece backshell design, cable type (round), and all hardware specifications remain identical.

Q: What is the packaging difference between these parts?

A: The 745833-7 packaging is not specified in available documentation. The 5745833-7 is supplied in bulk packaging. Contact the manufacturer for specific packaging requirements for the legacy part if needed.

Q: Are there any electrical performance differences?

A: No. Both parts maintain identical shielding configuration, plating specification (nickel over copper), and material composition (thermoplastic). Electrical performance characteristics are equivalent.

Q: What is the Moisture Sensitivity Level for both parts?

A: Both the 745833-7 and 5745833-7 are rated MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
