TE Connectivity 745653-5 D-Sub Backshell Connector Equivalent & Substitute Parts

Part Overview

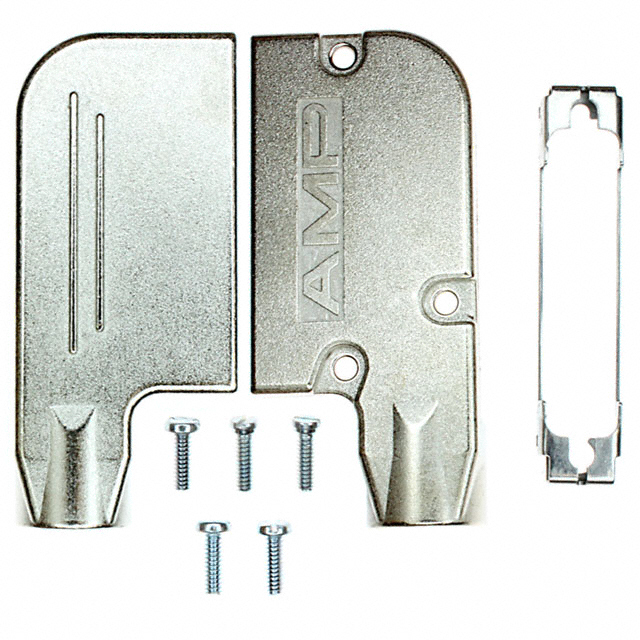

The TE Connectivity 745653-5 is a 25-position two-piece backshell connector with 90° cable exit and shielding, designed for D-Sub applications. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain supply chain continuity and ensure long-term project viability. The backshell serves as a protective and strain-relief accessory for D-Sub connectors in the AMPLIMITE series, providing mechanical support and electromagnetic shielding for round cable configurations.

Substiute Parts

745653-5

TE Connectivity AMP ConnectorsIn Stock: 950745653-5 Datasheet

Current PartRFQ

5745653-5

TE Connectivity AMP ConnectorsIn Stock: 13165745653-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 745653-5 is determined by strict equivalence across the following critical parameters:

• Number of Positions: Must be 25
• Compatible Shell Size: Must be B
• Compatible D-Sub Size: Must support 25pos and HD44pos
• Cable Exit Angle: Must be 90°
• Shielding Configuration: Must be shielded
• Material Composition: Must be metal with zinc alloy construction
• Plating Specification: Must be nickel over copper
• Accessory Type: Must be two-piece backshell
• Cable Type: Must accommodate round cable
• Features: Must include slide lock mechanism

The substitute part 5745653-5 meets all these parameters and is classified as an active product with improved compliance status, making it a direct functional and mechanical equivalent.

Parameter Comparison

Engineering Selection Recommendations

The 5745653-5 is the direct active equivalent for the obsolete 745653-5. All mechanical, electrical, and dimensional parameters are identical. The substitute part offers the following advantages:

Product Status: The 5745653-5 maintains active product status, ensuring continued availability and manufacturer support, whereas the 745653-5 is obsolete and subject to discontinuation.

Regulatory Compliance: The 5745653-5 is RoHS compliant, meeting current environmental regulations. The original part is RoHS non-compliant, which may present compliance challenges for new designs or applications subject to RoHS requirements.

REACH Status: The 5745653-5 has a defined REACH status (REACH Affected), providing clarity on substance compliance. The original part has an undefined REACH status from the vendor.

Functional Equivalence: Both parts are manufactured by TE Connectivity AMP Connectors within the AMPLIMITE series and share identical specifications for connector configuration, shielding, material composition, and mechanical features.

For applications requiring new procurement or long-term supply assurance, the 5745653-5 is the appropriate selection. For legacy systems currently using the 745653-5, direct substitution is mechanically and electrically valid.

Frequently Asked Questions (FAQ)

Q: Can the 5745653-5 be used as a direct replacement for the 745653-5?

A: Yes. The 5745653-5 is a direct functional and mechanical equivalent. All critical parameters including position count, shell size, cable exit angle, shielding, material composition, plating, and mechanical features are identical. The substitute part is compatible with the same D-Sub connector configurations (25pos and HD44pos).

Q: What is the primary difference between these two parts?

A: The main differences are product status and regulatory compliance. The 745653-5 is obsolete and RoHS non-compliant, while the 5745653-5 is an active product with RoHS compliance and defined REACH status. Functionally and mechanically, they are equivalent.

Q: Are there packaging differences between the 745653-5 and 5745653-5?

A: The 745653-5 packaging is listed as unspecified in the provided data. The 5745653-5 is supplied in bulk packaging. Both parts are identical in form, fit, and function.

Q: Does the RoHS compliance of the 5745653-5 affect its performance?

A: No. RoHS compliance indicates adherence to environmental regulations regarding restricted substances. The 5745653-5 maintains identical electrical and mechanical performance characteristics to the 745653-5 while meeting RoHS requirements.

Q: Can I use the 5745653-5 in applications currently specified for the 745653-5?

A: Yes. The 5745653-5 is fully compatible with all applications designed for the 745653-5. The identical specifications for connector configuration, shielding, material, and mechanical features ensure seamless integration.

Q: What is the compatibility of these backshells with D-Sub connectors?

A: Both parts are compatible with 25-position D-Sub connectors and HD44-position D-Sub connectors using shell size B. The 90° cable exit and shielded configuration are maintained across both compatible connector types.

Q: Is the slide lock feature present on both parts?

A: Yes. Both the 745653-5 and 5745653-5 include the slide lock feature for secure cable retention and strain relief.
