TE Connectivity 745497-2 D-Sub 37-Position Receptacle Connector: Equivalent & Substitute Parts

Part Overview

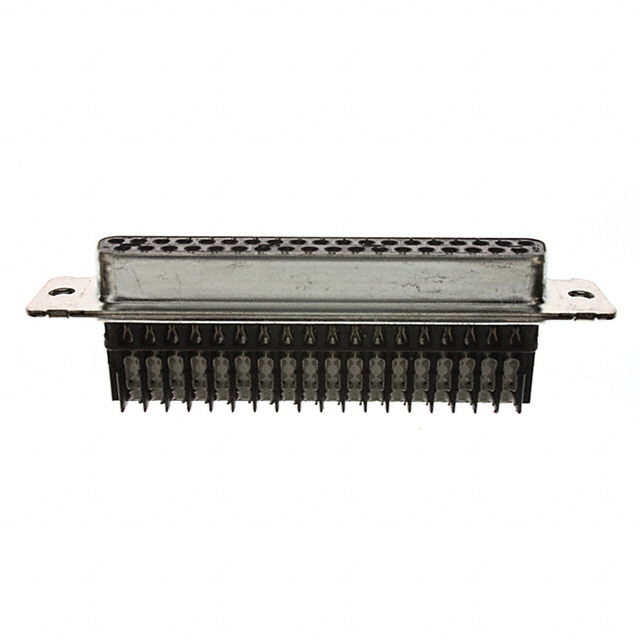

The TE Connectivity AMP Connectors 745497-2 is a 37-position D-Sub receptacle connector with female sockets, designed for IDC (Insulation Displacement Contact) and discrete wire termination. This connector belongs to the AMPLIMITE HDE-20 series and features a free-hanging, in-line mounting configuration with shell size 4 (DC, C) layout.

The 745497-2 is classified as obsolete. Locating equivalent or substitute components is necessary to support legacy system maintenance, repair, and field replacement requirements where original inventory is depleted or unavailable.

Substiute Parts

745497-2

TE Connectivity AMP ConnectorsIn Stock: 916745497-2 Datasheet

Current PartRFQ

1-745497-5

TE Connectivity AMP ConnectorsIn Stock: 13381-745497-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the obsolete 745497-2 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part must maintain identical specifications in the following critical areas:

Connector Architecture: D-Sub receptacle configuration with 37 positions arranged in 2 rows, shell size 4 (DC, C) layout, and free-hanging in-line mounting.

Electrical Characteristics: 250V voltage rating, gold-plated contacts with 30.0µin thickness, phosphor bronze contact material, and support for 22-26 AWG wire gauges.

Termination Compatibility: IDC and discrete wire termination capability.

Environmental & Material Specifications: Steel tin-plated shell, thermoplastic glass-filled dielectric, UL94 V-0 flammability rating, and -55°C to 105°C operating temperature range.

Series Designation: AMPLIMITE HDE-20 series membership.

The substitute part 1-745497-5 meets all these criteria and is therefore a direct functional equivalent.

Parameter Comparison

Engineering Selection Recommendations

The 1-745497-5 is the direct equivalent substitute for the obsolete 745497-2. Both components are manufactured by TE Connectivity AMP Connectors and share identical electrical, mechanical, and environmental specifications across all critical parameters.

Product Status Advantage: The 1-745497-5 maintains active product status, ensuring continued availability and supply chain support. The 745497-2 is obsolete and subject to inventory depletion.

Compliance Improvement: The 1-745497-5 is ROHS3 compliant, whereas the 745497-2 is RoHS non-compliant. This represents an advancement in environmental and regulatory compliance for new installations or system upgrades.

Functional Interchangeability: All electrical ratings, termination methods, contact specifications, and environmental operating parameters are identical. The 1-745497-5 is a direct pin-for-pin and functionally equivalent replacement.

Packaging Consideration: The 1-745497-5 is supplied in bulk packaging, whereas the 745497-2 packaging specification is not defined. Bulk packaging is standard for active production components and supports efficient inventory management.

Frequently Asked Questions (FAQ)

Q: Can the 1-745497-5 be used as a direct replacement for the 745497-2 in existing applications?

A: Yes. The 1-745497-5 is a direct functional equivalent. All electrical ratings (250V), contact specifications (gold-plated phosphor bronze, 30.0µin thickness), termination methods (IDC and discrete wire), and environmental operating parameters (-55°C to 105°C) are identical. The connector maintains the same D-Sub 37-position receptacle configuration, shell size 4 layout, and free-hanging in-line mounting.

Q: What is the difference between the 745497-2 and 1-745497-5?

A: The primary differences are product status and regulatory compliance. The 745497-2 is obsolete and RoHS non-compliant. The 1-745497-5 is an active product with ROHS3 compliance. All functional and electrical specifications are identical.

Q: Are there any compatibility issues when substituting the 1-745497-5 for the 745497-2?

A: No compatibility issues exist. Both connectors are AMPLIMITE HDE-20 series components with identical pin configurations, contact materials, voltage ratings, and termination capabilities. The 1-745497-5 is mechanically and electrically interchangeable.

Q: What wire gauges are supported by the 1-745497-5?

A: The 1-745497-5 supports 22-26 AWG wire gauges for both IDC and discrete wire termination, identical to the 745497-2 specification.

Q: Is the 1-745497-5 available in different packaging options?

A: The 1-745497-5 is supplied in bulk packaging. The 745497-2 packaging specification is not defined in the available documentation.

Q: What is the operating temperature range for the 1-745497-5?

A: The operating temperature range is -55°C to 105°C, identical to the 745497-2. This range is maintained by the thermoplastic glass-filled dielectric material and UL94 V-0 flammability rating.

Q: Does the 1-745497-5 meet RoHS requirements?

A: Yes. The 1-745497-5 is ROHS3 compliant. The 745497-2 is RoHS non-compliant. For applications requiring RoHS compliance, the 1-745497-5 is the appropriate selection.
