TE Connectivity 745494-1 D-Sub Connector Equivalent & Substitute Parts

Part Overview

The TE Connectivity 745494-1 is a 15-position D-Sub plug connector with male pins, designed for IDC (Insulation Displacement Contact) and discrete wire termination. This connector belongs to the AMPLIMITE HDE-20 series and features a free-hanging, in-line mounting configuration with a 2-row layout in shell size 2 (DA, A).

The 745494-1 is classified as obsolete. Locating equivalent and substitute parts is necessary to support legacy system maintenance, repair, and component replacement in applications where this connector is currently deployed.

Key Parameters

Parameter	Specification
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Number of Positions	15
Number of Rows	2
Shell Size, Connector Layout	2 (DA, A)
Mounting Type	Free Hanging (In-Line)
Termination Type	IDC, Discrete Wire
Shell Material, Finish	Steel, Tin Plated
Contact Finish	Gold
Voltage Rating	250V
Operating Temperature Range	-55°C ~ 105°C
Wire Gauge	26-30 AWG
Contact Material	Phosphor Bronze
Dielectric Material	Thermoplastic, Glass Filled
Flammability Rating	UL94 V-0
Features	Grounding Indents

Substitute Part Grouping Explanation

Substitution of the 745494-1 is determined by strict equivalence across all electrical and mechanical parameters. The substitute part must maintain identical specifications in the following critical areas:

Electrical Parameters:

Connector type (Plug, Male Pins)
Number of positions (15)
Number of rows (2)
Shell size and layout (2 DA, A)
Voltage rating (250V)
Contact material (Phosphor Bronze)
Contact finish (Gold)

Mechanical Parameters:

Mounting type (Free Hanging, In-Line)
Termination method (IDC, Discrete Wire)
Shell material and finish (Steel, Tin Plated)
Wire gauge compatibility (26-30 AWG)
Operating temperature range (-55°C ~ 105°C)

Compliance Parameters:

Flammability rating (UL94 V-0)
Dielectric material (Thermoplastic, Glass Filled)

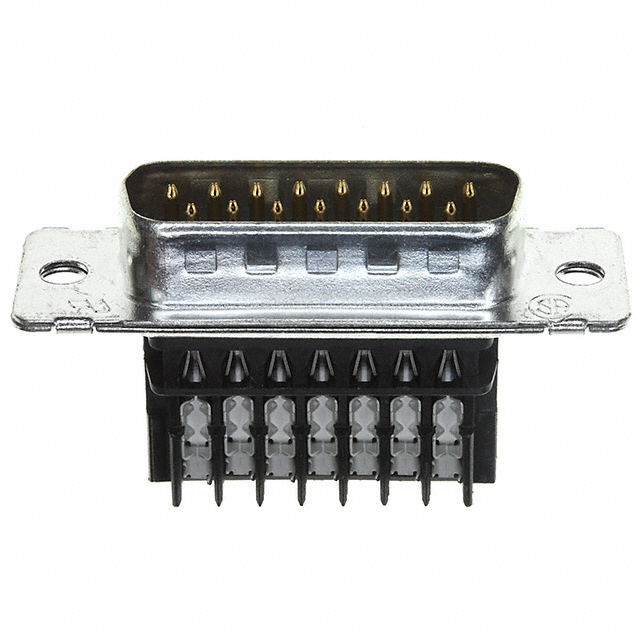

The substitute part 1-745494-7 meets all these criteria and is therefore a direct functional equivalent.

Parameter Comparison

Parameter	745494-1 (Main Part)	1-745494-7 (Substitute)
Manufacturer	TE Connectivity AMP Connectors	TE Connectivity AMP Connectors
Series	AMPLIMITE HDE-20	AMPLIMITE HDE-20
Connector Style	D-Sub	D-Sub
Connector Type	Plug, Male Pins	Plug, Male Pins
Number of Positions	15	15
Number of Rows	2	2
Shell Size, Connector Layout	2 (DA, A)	2 (DA, A)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Termination	IDC, Discrete Wire	IDC, Discrete Wire
Shell Material, Finish	Steel, Tin Plated	Steel, Tin Plated
Contact Finish	Gold	Gold
Contact Finish Thickness	Not specified	30.0µin (0.76µm)
Voltage Rating	250V	250V
Wire Gauge	26-30 AWG	26-30 AWG
Contact Material	Phosphor Bronze	Phosphor Bronze
Operating Temperature	-55°C ~ 105°C	-55°C ~ 105°C
Dielectric Material	Thermoplastic, Glass Filled	Thermoplastic, Glass Filled
Flammability Rating	UL94 V-0	UL94 V-0
Features	Grounding Indents	Grounding Indents
Product Status	Obsolete	Active
RoHS Status	RoHS non-compliant	ROHS3 Compliant
ECCN	EAR99	EAR99
HTSUS	8536.69.8000	8536.69.8000

Engineering Selection Recommendations

The substitute part 1-745494-7 is a direct functional equivalent to the 745494-1 across all electrical and mechanical parameters. Both connectors are manufactured by TE Connectivity within the same AMPLIMITE HDE-20 series and share identical specifications for connector type, pin configuration, termination method, voltage rating, temperature range, and material composition.

The primary distinction between these parts is product status and regulatory compliance. The 745494-1 is obsolete and RoHS non-compliant, while the 1-745494-7 is an active product with ROHS3 compliance. For new designs or system upgrades, the 1-745494-7 is the appropriate selection. For legacy system maintenance where the original 745494-1 is no longer available, the 1-745494-7 provides identical electrical and mechanical performance.

Both parts carry the same ECCN (EAR99) and HTSUS classification, indicating equivalent export and tariff treatment.

Frequently Asked Questions (FAQ)

Q: Can the 1-745494-7 be used as a direct replacement for the 745494-1?

A: Yes. The 1-745494-7 is a direct functional equivalent. Both connectors share identical specifications for connector type, pin count, shell size, termination method, voltage rating, operating temperature range, and material composition. The 1-745494-7 is the active production equivalent of the obsolete 745494-1.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and regulatory compliance. The 745494-1 is obsolete and RoHS non-compliant. The 1-745494-7 is an active product with ROHS3 compliance. The 1-745494-7 also specifies a contact finish thickness of 30.0µin (0.76µm), whereas the 745494-1 does not provide this specification. All other electrical and mechanical parameters are identical.

Q: Are there packaging differences between these parts?

A: The 745494-1 packaging is not specified in the available data. The 1-745494-7 is supplied in bulk packaging. Confirm packaging requirements with your procurement specifications.

Q: What wire gauges are compatible with these connectors?

A: Both the 745494-1 and 1-745494-7 support wire gauges from 26 to 30 AWG for IDC and discrete wire termination.

Q: What is the maximum voltage these connectors can handle?

A: Both connectors are rated for 250V operation.

Q: What is the operating temperature range?

A: Both connectors operate across a temperature range of -55°C to 105°C.

Q: Are these connectors RoHS compliant?

A: The 745494-1 is RoHS non-compliant. The 1-745494-7 is ROHS3 compliant. For applications requiring RoHS compliance, the 1-745494-7 is the appropriate selection.

Q: Can these connectors be used in applications requiring grounding?

A: Yes. Both connectors feature grounding indents as part of their design.
