TE Connectivity 745493-5 D-Sub Receptacle 15-Position Equivalent & Substitute Parts

Part Overview

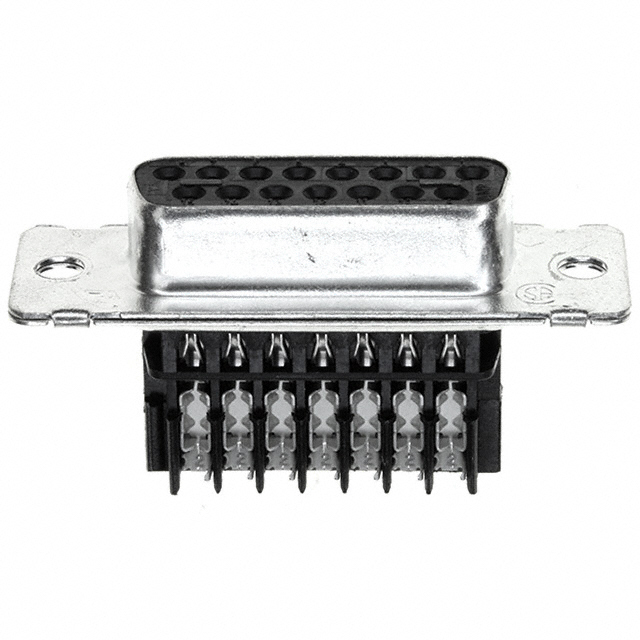

The TE Connectivity 745493-5 is a 15-position D-Sub receptacle connector with female sockets, designed for IDC (Insulation Displacement Contact) and discrete wire termination. This connector is part of the AMPLIMITE HDE-20 series and features a 2-row configuration in shell size 2 (DA, A) layout. The 745493-5 is classified as obsolete product status, necessitating identification of active equivalent parts to ensure continued availability and supply chain continuity for applications requiring this connector specification.

Substiute Parts

745493-5

TE Connectivity AMP ConnectorsIn Stock: 879745493-5 Datasheet

Current PartRFQ

1-745493-5

TE Connectivity AMP ConnectorsIn Stock: 18181-745493-5 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 745493-5 is determined by strict equivalence across all electrical and mechanical parameters. The primary substitute part, 1-745493-5, maintains identical specifications across connector style, type, position count, row configuration, shell size layout, mounting type, termination method, shell material and finish, contact finish and thickness, voltage rating, wire gauge compatibility, operating temperature range, dielectric material, contact material, and flammability rating.

The substitution is valid based on the following key parameters:

• Connector Style: D-Sub (identical)
• Connector Type: Receptacle, Female Sockets (identical)
• Number of Positions: 15 (identical)
• Number of Rows: 2 (identical)
• Shell Size, Connector Layout: 2 (DA, A) (identical)
• Mounting Type: Free Hanging (In-Line) (identical)
• Termination: IDC, Discrete Wire (identical)
• Shell Material, Finish: Steel, Tin Plated (identical)
• Contact Finish: Gold (identical)
• Contact Finish Thickness: 1.00µin (0.025µm) (identical)
• Voltage Rating: 250V (identical)
• Wire Gauge: 22-26 AWG (identical)
• Operating Temperature Range: -55°C ~ 105°C (identical)
• Dielectric Material: Thermoplastic, Glass Filled (identical)
• Contact Material: Phosphor Bronze (identical)
• Material Flammability Rating: UL94 V-0 (identical)

Parameter Comparison

Engineering Selection Recommendations

The 1-745493-5 is the direct equivalent substitute for the obsolete 745493-5. Both parts are manufactured by TE Connectivity and share identical electrical and mechanical specifications across all critical parameters including connector configuration, termination method, material composition, and performance ratings.

The primary distinction between the two parts is product status and regulatory compliance. The 745493-5 is classified as obsolete, while the 1-745493-5 maintains active product status with improved RoHS compliance (RoHS Compliant versus RoHS non-compliant) and defined REACH status (REACH Unaffected versus Vendor Undefined). These compliance improvements in the substitute part align with current regulatory requirements for electronic components.

For applications currently utilizing the 745493-5, direct substitution with the 1-745493-5 is supported by complete parameter equivalence. The substitute part is available in bulk packaging and maintains higher inventory levels, ensuring supply chain continuity.

Frequently Asked Questions (FAQ)

Q: Can the 1-745493-5 be used as a direct replacement for the 745493-5?

A: Yes. The 1-745493-5 is a direct equivalent substitute. Both parts share identical specifications across all electrical and mechanical parameters including connector type, position count, termination method, material composition, voltage rating, temperature range, and flammability rating.

Q: What is the difference between the 745493-5 and 1-745493-5?

A: The primary differences are product status and regulatory compliance. The 745493-5 is obsolete, while the 1-745493-5 is active. The substitute part is RoHS Compliant with defined REACH status, whereas the main part is RoHS non-compliant with undefined REACH status. All functional and electrical specifications are identical.

Q: Are there packaging differences between these parts?

A: The 745493-5 packaging specification is not defined in the available data. The 1-745493-5 is supplied in bulk packaging. Both parts are manufactured by TE Connectivity and are part of the AMPLIMITE HDE-20 series.

Q: What wire gauges are compatible with these connectors?

A: Both the 745493-5 and 1-745493-5 support wire gauges from 22 to 26 AWG for IDC and discrete wire termination.

Q: What is the operating temperature range for these connectors?

A: Both parts operate across a temperature range of -55°C to 105°C, with a dielectric material rated UL94 V-0 for flammability.

Q: Is the 1-745493-5 suitable for applications requiring RoHS compliance?

A: Yes. The 1-745493-5 is RoHS Compliant, making it suitable for applications with RoHS compliance requirements. The original 745493-5 is RoHS non-compliant.

Q: What is the voltage rating for these D-Sub receptacles?

A: Both the 745493-5 and 1-745493-5 are rated for 250V operation.

Q: Are these connectors suitable for high-temperature applications?

A: Yes. Both connectors are rated for operation up to 105°C and maintain their specifications across the full operating temperature range of -55°C to 105°C.
