TE Connectivity AMP Connectors 745175-2 D-Sub Backshell Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 745175-2 is a 50 Position Two Piece Backshell Connector with 180° shielded cable exit, designed for D-Sub connectors in the AMPLIMITE series. This component functions as a protective and strain relief accessory for D-shaped connector assemblies, providing electromagnetic shielding and mechanical support for round cable configurations.

The 745175-2 carries an Obsolete product status, necessitating identification of functionally equivalent alternatives for ongoing procurement and system maintenance. Direct substitutes maintain identical electrical and mechanical specifications while offering improved availability and compliance status.

Substiute Parts

745175-2

TE Connectivity AMP ConnectorsIn Stock: 666745175-2 Datasheet

Current PartRFQ

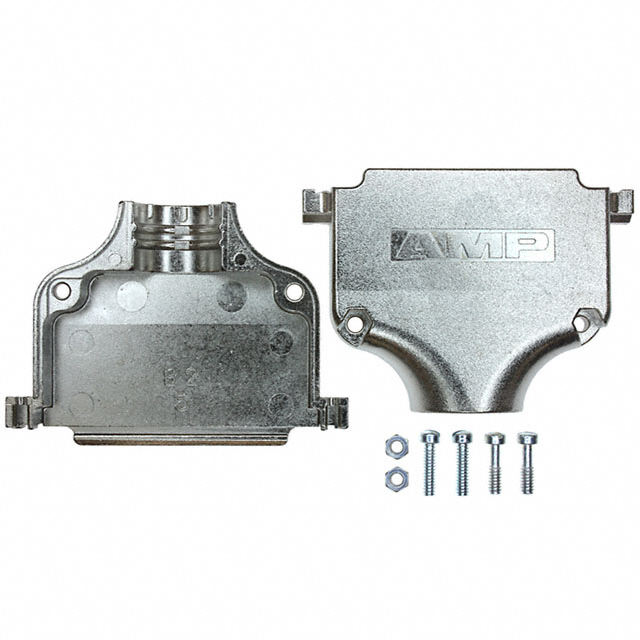

5745175-2

TE Connectivity AMP ConnectorsIn Stock: 7945745175-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 745175-2 is determined by strict equivalence across all critical electrical and mechanical parameters. The substitute part 5745175-2 maintains identical specifications for connector positioning, shielding characteristics, cable interface geometry, and hardware compatibility.

The following parameters establish substitution validity:

• Number of Positions: 50 (exact match required)
• Compatible Shell Size: D (exact match required)
• Compatible D-Sub Size: 50pos and HD78pos (exact match required)
• Cable Exit: 180° (exact match required)
• Shielding: Shielded (exact match required)
• Cable Type: Round (exact match required)
• Accessory Type: Two Piece Backshell (exact match required)
• Material Composition: Metal, Zinc Alloy (exact match required)
• Plating: Nickel over Copper (exact match required)
• Hardware: Assembly Hardware, Strain Relief with 4-40 Mating Screws (exact match required)

Parameter Comparison

Engineering Selection Recommendations

The 5745175-2 serves as the direct functional equivalent to the obsolete 745175-2. Selection of the substitute part is based on the following engineering criteria:

Functional Equivalence: All electrical and mechanical parameters are identical. The 5745175-2 maintains the same 50-position configuration, D-shell size compatibility, 180° shielded cable exit, and hardware specifications as the original part.

Product Status: The 5745175-2 carries Active product status, ensuring continued availability and manufacturer support. The 745175-2 is classified as Obsolete, limiting future procurement options.

Compliance Improvement: The 5745175-2 is RoHS Compliant, whereas the 745175-2 is RoHS non-compliant. The substitute part also provides defined REACH status (REACH Unaffected) compared to the undefined status of the original part.

Regulatory Classification: Both parts share identical ECCN (EAR99) and HTSUS (8538.90.8180) classifications, indicating no change in export control or tariff treatment.

Packaging: The 5745175-2 is supplied in Bulk packaging, compared to the unspecified packaging of the 745175-2. This difference does not affect functional compatibility.

Frequently Asked Questions (FAQ)

Q: Can the 5745175-2 be used as a direct replacement for the 745175-2 in existing assemblies?

A: Yes. The 5745175-2 is functionally identical to the 745175-2 across all electrical and mechanical parameters. Both parts are 50-position D-shell backshells with 180° shielded cable exit, identical material composition, plating, and hardware specifications. Direct substitution is supported without design modification.

Q: What is the difference between the 745175-2 and 5745175-2?

A: The primary differences are product status and compliance certifications. The 745175-2 is Obsolete with RoHS non-compliant status and undefined REACH status. The 5745175-2 is Active, RoHS Compliant, and has defined REACH status (REACH Unaffected). All functional specifications are identical.

Q: Are there any compatibility concerns when substituting the 5745175-2 for the 745175-2?

A: No compatibility concerns exist. Both parts are designed for the same D-Sub connector configurations (50pos and HD78pos), support identical cable types (round), and feature the same 4-40 mating screw hardware. Mechanical and electrical interfaces are fully compatible.

Q: Does the packaging difference between the two parts affect compatibility?

A: No. The packaging difference (Bulk for 5745175-2 versus unspecified for 745175-2) is a supply chain consideration only and does not affect the functional performance or compatibility of the component.

Q: Why is the 745175-2 classified as Obsolete?

A: The 745175-2 carries Obsolete status, indicating that TE Connectivity AMP Connectors has discontinued active production and support. The 5745175-2 is the Active equivalent and is the recommended part for new procurement.

Q: Is the 5745175-2 suitable for applications requiring RoHS compliance?

A: Yes. The 5745175-2 is RoHS Compliant, making it suitable for applications with RoHS requirements. The original 745175-2 is RoHS non-compliant and would not satisfy such requirements.

Q: What is the inventory status of these parts?

A: The 745175-2 has 645 pieces in stock (New Original). The 5745175-2 has 754 pieces in stock (New Original). Both parts are currently available.

Q: Are the export control classifications the same for both parts?

A: Yes. Both the 745175-2 and 5745175-2 share identical ECCN (EAR99) and HTSUS (8538.90.8180) classifications. No change in export control or tariff treatment occurs when substituting between these parts.
