TE Connectivity 745172-2 D-Sub Backshell Connector Equivalent & Substitute Parts

Part Overview

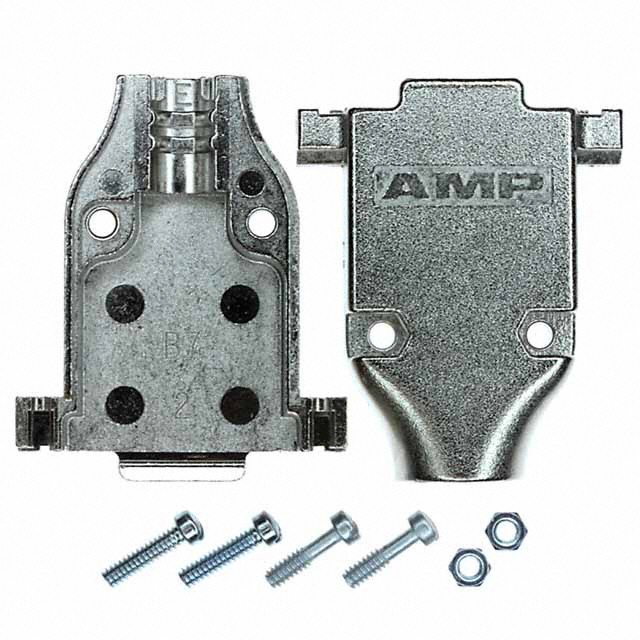

The TE Connectivity 745172-2 is a 15-position two-piece backshell connector with 180° cable exit and shielding, designed for D-Sub applications. This component functions as an accessory assembly for D-Sub connectors in the AMPLIMITE series, providing mechanical strain relief and electromagnetic shielding for circular cable configurations.

The 745172-2 carries an obsolete product status, indicating discontinuation from active manufacturing. Identification of equivalent substitute parts is necessary to maintain design continuity and ensure procurement availability for new production runs and field replacements.

Substiute Parts

745172-2

TE Connectivity AMP ConnectorsIn Stock: 923745172-2 Datasheet

Current PartRFQ

5745172-2

TE Connectivity AMP ConnectorsIn Stock: 15915745172-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 745172-2 is determined by strict equivalence across the following critical parameters:

Mechanical Compatibility Parameters:

• Number of positions: 15
• Compatible shell size: A
• Compatible D-Sub size: 15pos and HD26pos
• Cable exit angle: 180°
• Cable type: Round
• Accessory type: Two piece backshell

Electrical & Environmental Parameters:

• Shielding configuration: Shielded
• Material composition: Metal, Zinc Alloy
• Plating specification: Nickel over Copper
• Hardware specification: Mating Screws 4-40

The substitute part 5745172-2 maintains complete equivalence across all mechanical and electrical parameters specified for the original 745172-2. Both parts are manufactured by TE Connectivity AMP Connectors within the AMPLIMITE series and share identical functional specifications for D-Sub backshell applications.

Parameter Comparison

Engineering Selection Recommendations

The 5745172-2 serves as the direct functional equivalent to the obsolete 745172-2 for all D-Sub backshell applications requiring 15-position, 180° shielded configurations with round cable compatibility.

Product Status Consideration: The 5745172-2 maintains active product status with current manufacturing availability, whereas the 745172-2 is obsolete. For new designs and ongoing production requirements, the 5745172-2 is the appropriate selection.

Regulatory Compliance: The 5745172-2 achieves ROHS3 compliance, representing an advancement over the non-compliant 745172-2. This compliance status aligns with current regulatory requirements for electronic component procurement in regulated markets.

Mechanical and Electrical Equivalence: Both parts maintain identical specifications across all functional parameters: 15-position configuration, shell size A compatibility, 180° cable exit, shielded design, and identical material and plating specifications. Direct substitution is supported without design modification.

Frequently Asked Questions (FAQ)

Q: Can the 5745172-2 be used as a direct replacement for the 745172-2 in existing designs?

A: Yes. The 5745172-2 maintains complete mechanical and electrical equivalence to the 745172-2 across all functional parameters, including position count, shell size compatibility, cable exit angle, shielding configuration, and material specifications. Direct substitution is supported without design changes.

Q: What is the primary difference between these two part numbers?

A: The 5745172-2 is the active production equivalent of the obsolete 745172-2. The substitute part includes improved regulatory compliance (ROHS3 compliant versus non-compliant) and maintains current manufacturing availability. Functional specifications remain identical.

Q: Are there packaging differences between the 745172-2 and 5745172-2?

A: The 745172-2 is listed without specified packaging, while the 5745172-2 is supplied in bulk packaging. Both parts are identical in form, fit, and function for D-Sub backshell applications.

Q: What D-Sub connector sizes are compatible with these backshell parts?

A: Both the 745172-2 and 5745172-2 are compatible with 15-position D-Sub connectors and HD26-position D-Sub connectors using shell size A. The 180° cable exit and round cable type specifications apply to both compatible connector sizes.

Q: Is the 5745172-2 suitable for applications requiring RoHS compliance?

A: Yes. The 5745172-2 is ROHS3 compliant, making it appropriate for applications and markets with RoHS compliance requirements. The original 745172-2 is non-compliant and should not be used in RoHS-regulated applications.

Q: What hardware specifications apply to these backshell connectors?

A: Both parts feature mating screws with 4-40 specifications. The 5745172-2 includes additional strain relief hardware as part of its assembly specification, providing enhanced mechanical support compared to the original part.
