Pomona Electronics 73007 MCX Connector Receptacle Equivalent & Substitute Parts

Part Overview

The Pomona Electronics 73007 is an MCX connector receptacle designed for 50-ohm coaxial RF applications. This female socket connector features through-hole solder termination and operates across a frequency range up to 3 GHz with an operating temperature range of -55°C to 155°C. The part is classified as obsolete, making equivalent substitute parts necessary for ongoing system maintenance and new designs requiring MCX receptacle functionality.

Substiute Parts

73007

Pomona ElectronicsIn Stock: 94073007 Datasheet

Current PartRFQ

133-3701-211

Cinch Connectivity SolutionsIn Stock: 8247133-3701-211 Datasheet

DirectRFQ

133-3701-201

Cinch Connectivity Solutions JohnsonIn Stock: 5651133-3701-201 Datasheet

SimilarRFQ

133-3701-206

Cinch Connectivity SolutionsIn Stock: 729133-3701-206 Datasheet

SimilarRFQ

133-3701-216

Cinch Connectivity SolutionsIn Stock: 1890133-3701-216 Datasheet

SimilarRFQ

133-9701-201

Cinch Connectivity Solutions JohnsonIn Stock: 883133-9701-201 Datasheet

SimilarRFQ

133-9701-211

Cinch Connectivity SolutionsIn Stock: 2555133-9701-211 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Pomona Electronics 73007 are qualified based on the following critical parameters that must match or exceed the original specification:

Core Electrical Parameters (Must Match):

• Connector Style: MCX
• Connector Type: Receptacle, Female Socket
• Impedance: 50 Ohms
• Contact Termination: Solder
• Shield Termination: Solder

Core Mechanical Parameters (Must Match):

• Mounting Type: Through Hole
• Fastening Type: Snap-On
• Center Contact Material: Beryllium Copper
• Dielectric Material: Polytetrafluoroethylene (PTFE)

Performance Parameters (Must Meet or Exceed):

• Frequency - Max: 3 GHz minimum
• Operating Temperature: Must encompass -55°C to 155°C range
• Voltage Rating: 170 V minimum
• Mating Cycles: 500 minimum

Material & Finish Considerations: Substitute parts may vary in body material (Brass, Copper Alloy, or Copper) and body finish (Gold or Nickel), provided all electrical and mechanical specifications are maintained. Housing color variations (Gold or Silver) are acceptable when other parameters align.

Compliance Requirements: All substitute parts must maintain RoHS3 compliance to ensure regulatory alignment with the original part.

The following Cinch Connectivity Solutions MCX connector receptacles meet these substitution criteria:

• 133-3701-211 (Direct substitute, Active status)
• 133-3701-201 (Active status)

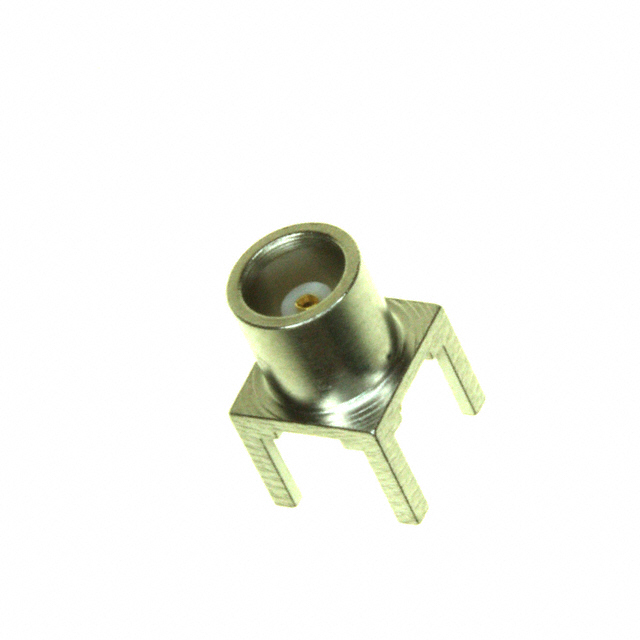

• 133-3701-206 (Active status, Nickel finish variant)
• 133-3701-216 (Active status, Nickel finish variant)

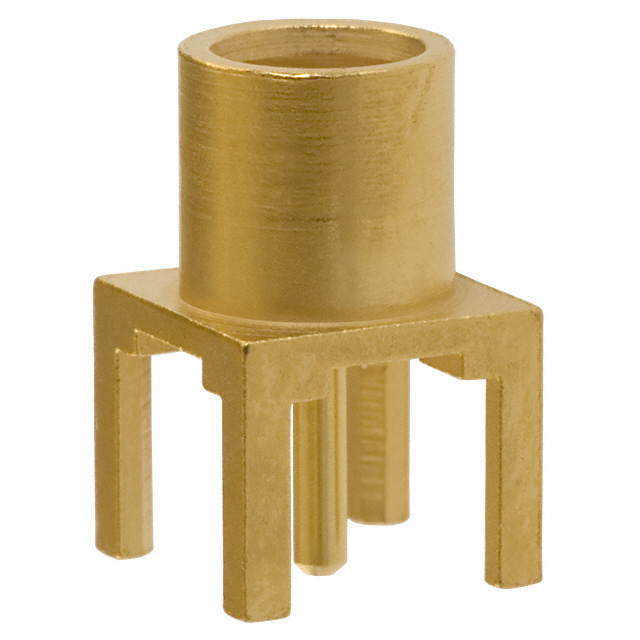

• 133-9701-201 (Active status, Non-Magnetic, Copper Alloy body)

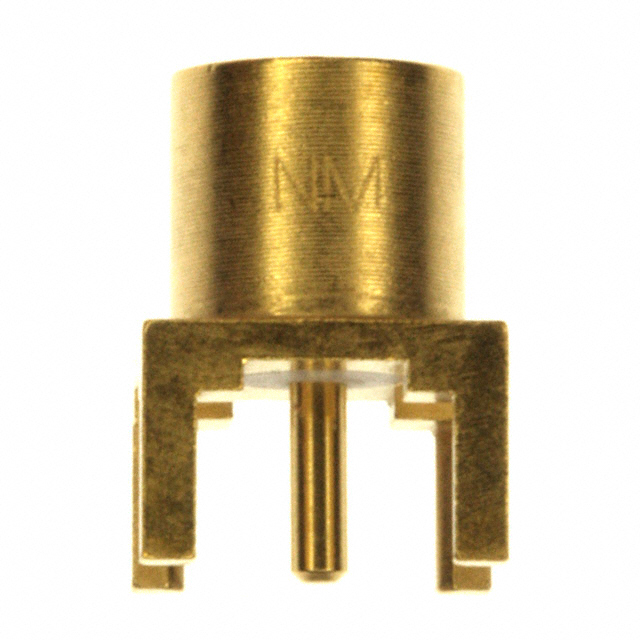

• 133-9701-211 (Active status, Non-Magnetic, Copper body)

Parameter Comparison

Engineering Selection Recommendations

Primary Recommendation: Cinch Connectivity Solutions 133-3701-211

The 133-3701-211 is the direct functional equivalent to the Pomona Electronics 73007. This part maintains identical core specifications while offering enhanced performance margins. It is currently in active production status, ensuring long-term availability and supply chain stability. The part carries ROHS3 compliance and REACH Affected designation, meeting current regulatory requirements.

Alternative Selections Based on Application Requirements:

For Gold-Finish Applications (Corrosion Resistance):

• 133-3701-211 (Brass body, Gold finish)
• 133-9701-201 (Copper Alloy body, Gold finish, Non-Magnetic)
• 133-9701-211 (Copper body, Gold finish, Non-Magnetic)

For Nickel-Finish Applications (Cost Optimization):

• 133-3701-206 (Brass body, Nickel finish)
• 133-3701-216 (Brass body, Nickel finish)

For Non-Magnetic Applications:

• 133-9701-201 (Copper Alloy body)
• 133-9701-211 (Copper body)

All substitute parts exceed the original specification in frequency capability (6 GHz vs. 3 GHz), operating temperature range (-65°C to 165°C vs. -55°C to 155°C), and voltage rating (335 V vs. 170 V), providing enhanced performance headroom for system designs.

Frequently Asked Questions (FAQ)

Q: Can I use Cinch 133-3701-211 as a direct replacement for Pomona 73007?

A: Yes. The 133-3701-211 meets all core electrical and mechanical specifications of the Pomona 73007. Both are MCX female socket receptacles with 50-ohm impedance, solder termination, through-hole mounting, and snap-on fastening. The Cinch part is currently in active production, addressing the obsolescence of the original Pomona part.

Q: What is the difference between the gold-finish and nickel-finish variants?

A: The primary difference is body finish material. Gold-finish parts (133-3701-211, 133-9701-201, 133-9701-211) provide enhanced corrosion resistance and are typically specified for high-reliability applications. Nickel-finish parts (133-3701-206, 133-3701-216) offer cost optimization while maintaining electrical performance. Both finishes maintain the same electrical characteristics and impedance.

Q: Why do some substitute parts have higher frequency ratings (6 GHz vs. 3 GHz)?

A: The substitute parts are engineered to support higher frequency operation while maintaining backward compatibility with 3 GHz applications. The higher frequency capability provides design margin and future-proofing for system upgrades without requiring connector replacement.

Q: Are the non-magnetic variants (133-9701-201, 133-9701-211) compatible with standard MCX applications?

A: Yes. The non-magnetic designation indicates the body material composition (Copper Alloy or Copper) rather than a functional difference. These parts maintain identical electrical specifications and are fully compatible with standard MCX receptacle applications. The non-magnetic property is beneficial in applications sensitive to magnetic field interference.

Q: What is the difference between Brass, Copper Alloy, and Copper body materials?

A: All three materials provide equivalent electrical performance and impedance characteristics. Brass (133-3701 series) is the standard material. Copper Alloy (133-9701-201) and Copper (133-9701-211) bodies offer alternative material compositions that may be specified for specific manufacturing processes or supply chain requirements. Material selection does not affect connector functionality or RF performance.

Q: Do all substitute parts maintain RoHS3 compliance?

A: Most substitute parts are ROHS3 compliant. The exception is 133-3701-206, which carries RoHS Compliant designation without the "3" specification. For applications requiring strict ROHS3 compliance, select from 133-3701-211, 133-3701-201, 133-3701-216, 133-9701-201, or 133-9701-211.

Q: What is the REACH status of these substitute parts?

A: Most substitute parts carry REACH Affected designation (133-3701-211, 133-3701-201, 133-3701-216, 133-9701-201, 133-9701-211), indicating they are subject to REACH regulations. The 133-3701-206 does not specify REACH status in the provided data. Verify REACH compliance requirements for your specific application and regulatory jurisdiction.

Q: Are there inventory considerations when selecting a substitute?

A: Current inventory levels vary across substitute parts. 133-3701-211 has 8,227 units in stock, providing strong availability. 133-9701-211 has 2,511 units, 133-3701-216 has 1,799 units, 133-3701-201 has 5,551 units, 133-9701-201 has 840 units, and 133-3701-206 has 704 units. For high-volume requirements, 133-3701-211 or 133-3701-201 are recommended.
