TE Connectivity 7-215464-6 Equivalent & Substitute Parts

Part Overview

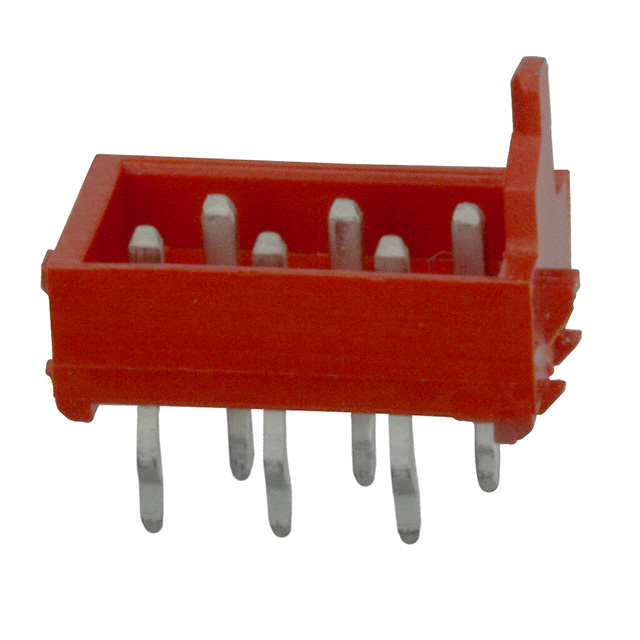

The TE Connectivity 7-215464-6 is a Micro-MaTch rectangular connector header designed for through-hole board-to-board or cable applications. This vertical header features 6 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing and shrouded 4-wall construction. The connector utilizes press-fit and solder termination methods with tin-plated brass contacts rated for 1.5A at 230V operation across -40°C to 105°C temperature range.

The 7-215464-6 is discontinued at DiGi Electronics, necessitating identification of functionally equivalent alternatives. While 1128 pieces remain in stock from original inventory, substitute parts provide continued access to compatible connector solutions within the Micro-MaTch series.

Substiute Parts

7-215464-6

TE Connectivity AMP ConnectorsIn Stock: 11397-215464-6 Datasheet

Current PartRFQ

7-215083-6

TE Connectivity AMP ConnectorsIn Stock: 2204057-215083-6 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 7-215464-6 is determined by alignment of core electrical and mechanical parameters within the Micro-MaTch connector series. The substitute part 7-215083-6 shares the following critical parameters:

Matching Parameters:

• Manufacturer: TE Connectivity AMP Connectors
• Series: Micro-MaTch
• Number of Positions: 6
• Number of Rows: 2
• Pitch: 0.100" (2.54mm)
• Contact Type: Male Pin
• Contact Finish: Tin
• RoHS Status: ROHS3 Compliant
• Moisture Sensitivity Level: 1 (Unlimited)

Functional Differences: The 7-215083-6 operates as a free-hanging plug connector with IDC (Insulation Displacement Contact) termination for ribbon cable applications, whereas the 7-215464-6 functions as a through-hole header with press-fit and solder termination. These differences reflect distinct application contexts within the same connector family.

Parameter Comparison

Engineering Selection Recommendations

The 7-215083-6 substitute part maintains compatibility within the Micro-MaTch connector ecosystem through identical pitch spacing, position count, and row configuration. Both parts carry ROHS3 compliance and MSL 1 ratings, ensuring regulatory and environmental consistency.

Selection between the main part and substitute depends on application termination requirements. The 7-215464-6 header accommodates through-hole PCB mounting with press-fit or solder termination. The 7-215083-6 plug connector serves ribbon cable applications via IDC termination and free-hanging installation.

The 7-215083-6 maintains active product status with significantly higher inventory availability (220,383 pieces), providing supply continuity for applications requiring Micro-MaTch 6-position, 2-row connector solutions. Both parts operate across the same temperature range and carry equivalent electrical ratings for general-purpose applications.

Frequently Asked Questions (FAQ)

Q: Can the 7-215083-6 directly replace the 7-215464-6 in existing PCB designs?

A: Direct replacement is not applicable. The 7-215464-6 is a through-hole header for PCB mounting, while the 7-215083-6 is a free-hanging plug for ribbon cable termination. Different mounting and termination methods require design-level evaluation.

Q: What connector type pairs with the 7-215464-6 header?

A: The 7-215464-6 header mates with Micro-MaTch receptacle connectors featuring 6 positions, 2 rows, and 0.100" (2.54mm) pitch spacing. The 7-215083-6 plug connector is designed for ribbon cable IDC termination rather than header mating.

Q: Are both parts compliant with current environmental regulations?

A: Both the 7-215464-6 and 7-215083-6 are ROHS3 compliant and carry MSL 1 (Unlimited) moisture sensitivity ratings, meeting current regulatory requirements for general-purpose connector applications.

Q: What is the significance of the pitch and row spacing parameters?

A: The 0.100" (2.54mm) pitch and row spacing define the physical footprint and mating interface geometry. These parameters must align between header and receptacle connectors for proper mechanical and electrical engagement. Both parts share identical pitch specifications within the Micro-MaTch series.

Q: Why is the 7-215464-6 discontinued while the 7-215083-6 remains active?

A: Product discontinuation reflects market demand and manufacturing decisions by TE Connectivity. The 7-215083-6 plug connector with IDC termination maintains active status, indicating continued demand for ribbon cable connector solutions within the Micro-MaTch family.

Q: What termination methods are available for each part?

A: The 7-215464-6 header supports press-fit and solder termination for through-hole PCB mounting. The 7-215083-6 plug uses IDC (Insulation Displacement Contact) termination for direct ribbon cable connection without additional crimping or soldering.
