7201SD9CBE Toggle Switch DPDT Equivalent & Substitute Parts

Part Overview

The 7201SD9CBE is an active production toggle switch manufactured by C&K, featuring DPDT (Double Pole Double Throw) circuitry with On-On switching function. This through-hole mounted component is rated for 0.4VA at 20V AC/DC operation and is designed for applications requiring reliable electromechanical switching with epoxy sealed terminals. Finding equivalent and substitute parts is necessary when addressing supply chain constraints, lead time requirements, or when design specifications allow for compatible alternatives that meet or exceed the electrical and mechanical requirements of the original component.

Substiute Parts

7201SD9CBE

C&KIn Stock: 7577201SD9CBE Datasheet

Current PartRFQ

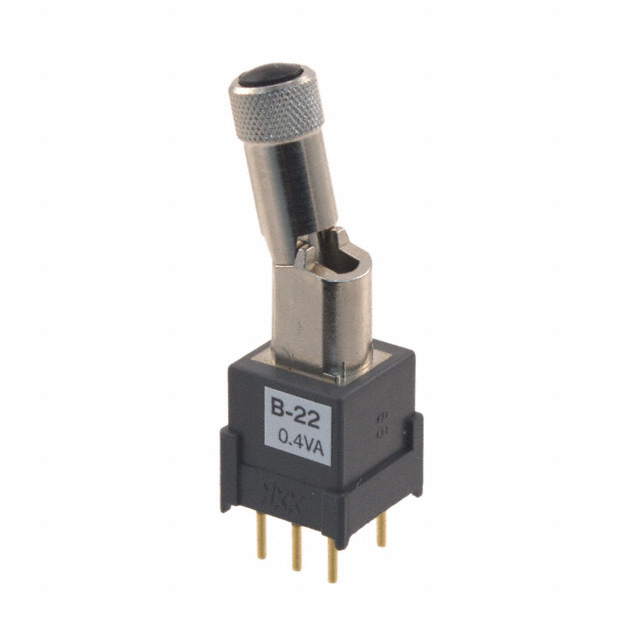

B22LP

NKK SwitchesIn Stock: 851B22LP Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 7201SD9CBE is determined by the following critical parameters:

Mandatory Compatibility Criteria:

• Circuit configuration must be DPDT
• Switch function must be On-On
• Current rating must support minimum 0.4VA (AC/DC)
• Voltage rating must support minimum 20V (both AC and DC)
• Mounting type must be Through Hole
• Termination style must be PC Pin
• Operating temperature range must encompass -30°C to 85°C

Acceptable Variation Parameters:

• Actuator type (Standard Round or alternative designs)
• Actuator length (within mechanical compatibility limits)
• Electrical life rating (equal to or exceeding 100,000 cycles)
• Manufacturer identity (different manufacturers acceptable if specifications met)

The B22LP from NKK Switches qualifies as a substitute part because it meets all mandatory compatibility criteria while offering enhanced voltage rating (28V) and maintains equivalent current handling, temperature range, and termination specifications.

Parameter Comparison

Engineering Selection Recommendations

The B22LP from NKK Switches is electrically compatible with the 7201SD9CBE for applications operating at or below 20V. Both components maintain active production status and ROHS3 compliance, ensuring continued availability and regulatory alignment.

The primary consideration for substitution is the difference in electrical life rating: the 7201SD9CBE is rated for 100,000 cycles while the B22LP is rated for 50,000 cycles. Applications requiring extended cycle life should retain the original 7201SD9CBE specification.

The actuator type differs between the two parts (Standard Round versus Locking Lever). Mechanical integration must be verified to ensure the locking lever design of the B22LP does not conflict with panel cutout dimensions or mechanical constraints of the target application.

Both components are ROHS3 compliant and maintain equivalent operating temperature ranges, supporting deployment in industrial and commercial environments within the specified -30°C to 85°C range.

Frequently Asked Questions (FAQ)

Q: Can the B22LP be used as a direct replacement for the 7201SD9CBE?

A: The B22LP meets all electrical requirements for applications operating at 20V or below. However, the actuator type differs (Locking Lever versus Standard Round), requiring mechanical verification. Additionally, the B22LP has a lower electrical life rating (50,000 cycles versus 100,000 cycles), which may impact suitability for high-cycle applications.

Q: What is the significance of the voltage rating difference (20V versus 28V)?

A: The B22LP's higher voltage rating (28V) indicates it can safely operate at higher voltages than the 7201SD9CBE. For applications using 20V or lower, this difference does not affect compatibility. The higher rating provides additional design margin but does not change the component's performance at lower voltages.

Q: Are there any compliance or certification differences between these parts?

A: Both the 7201SD9CBE and B22LP are ROHS3 compliant and maintain active production status. The 7201SD9CBE is REACH Affected while the B22LP is REACH Unaffected; however, both carry the same ECCN and HTSUS classifications, indicating equivalent regulatory treatment for export and trade purposes.

Q: How do the actuator length specifications compare?

A: The actuator lengths are nearly identical (12.45mm versus 12.50mm), with only a 0.05mm difference. This minimal variance typically does not affect mechanical fit in standard through-hole applications, though panel cutout dimensions should be verified for the specific application.

Q: What is the impact of the electrical life rating difference?

A: The 7201SD9CBE supports 100,000 switching cycles while the B22LP supports 50,000 cycles. For applications with moderate switching frequency, the B22LP remains suitable. Applications requiring extended operational life or high-frequency switching should prioritize the 7201SD9CBE to ensure component longevity.
