Amphenol ICC 71922-126 Rectangular Connector Header – Equivalent & Substitute Parts

Part Overview

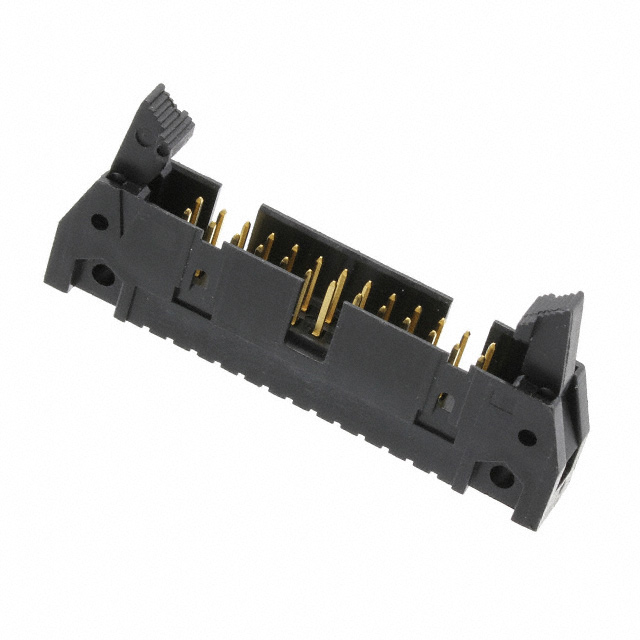

The Amphenol ICC 71922-126 is a through-hole, right-angle rectangular connector header with 26 positions at 0.100" (2.54mm) pitch, configured as a 2-row shrouded design with male pins. This connector is classified as obsolete, which necessitates identification of active equivalent and substitute parts for ongoing design support and procurement.

The 71922-126 features gold-plated mating contacts with phosphor bronze material, thermoplastic glass-filled insulation, and latch lock/eject hook fastening. With UL94 V-0 flammability rating and RoHS non-compliant status, alternative parts must be evaluated for compliance requirements and functional compatibility.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	26
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole, Right Angle
Shrouding	Shrouded - 4 Wall
Termination	Solder
Contact Finish - Mating	Gold, GXT™
Contact Material	Phosphor Bronze
Insulation Material	Thermoplastic, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Gray
RoHS Status	RoHS non-compliant

Substitute Part Grouping Explanation

Substitution of the 71922-126 is determined by strict equivalence across the following critical parameters:

Primary Matching Criteria:

Connector type: Header
Contact type: Male Pin
Pitch: 0.100" (2.54mm)
Number of positions: 26
Number of rows: 2
Row spacing: 0.100" (2.54mm)
Mounting type: Through Hole, Right Angle
Shrouding: Shrouded - 4 Wall
Termination: Solder
Fastening type: Latch Lock/Eject Hooks

Secondary Compatibility Parameters:

Contact finish - Mating: Gold
Contact shape: Square
Insulation material: Thermoplastic or PBT glass-filled variants
Material flammability: UL94 V-0
Moisture sensitivity: MSL 1 (Unlimited)

Substitutes are grouped into two categories: direct functional equivalents from Amphenol ICC with improved compliance status, and manufacturer-recommended alternatives from HARTING and Amphenol CONEC that maintain electrical and mechanical compatibility while offering active product status and enhanced RoHS compliance.

Parameter Comparison

Part Number	Manufacturer	Series	Product Status	Pitch (mm)	Positions	Rows	Mounting	Contact Finish - Mating	Contact Material	Insulation Material	Flammability	RoHS Status	Inventory (Pcs)
71922-126	Amphenol ICC (FCI)	Quickie™	Obsolete	2.54	26	2	Through Hole, Right Angle	Gold, GXT™	Phosphor Bronze	Thermoplastic, Glass Filled	UL94 V-0	RoHS non-compliant	806
71922-126LF	Amphenol ICC (FCI)	Quickie™	Active	2.54	26	2	Through Hole, Right Angle	Gold, GXT™	Phosphor Bronze	Thermoplastic, Glass Filled	UL94 V-0	RoHS Compliant	3556
09185265911	HARTING	SEK	Active	2.54	26	2	Through Hole, Right Angle	Gold	Copper Alloy	PBT, Glass Filled	UL94 V-0	ROHS3 Compliant	840
09185265913	HARTING	SEK	Active	2.54	26	2	Through Hole, Right Angle	Gold	Copper Alloy	PBT, Glass Filled	UL94 V-0	ROHS3 Compliant	1033
09185266911	HARTING	SEK	Active	2.54	26	2	Through Hole, Right Angle	Gold	Copper Alloy	PBT, Glass Filled	UL94 V-0	ROHS3 Compliant	805
09185266913	HARTING	SEK	Active	2.54	26	2	Through Hole, Right Angle	Gold	Copper Alloy	PBT, Glass Filled	UL94 V-0	ROHS3 Compliant	861
09185267911	HARTING	SEK	Active	2.54	26	2	Through Hole, Right Angle	Gold	Copper Alloy	PBT, Glass Filled	UL94 V-0	ROHS3 Compliant	711
09185267913	HARTING	SEK	Active	2.54	26	2	Through Hole, Right Angle	Gold	Copper Alloy	PBT, Glass Filled	UL94 V-0	ROHS3 Compliant	1055
09195266903	HARTING	SEK	Active	2.54	26	2	Through Hole, Right Angle	Not specified	Copper Alloy	PCT, Glass Filled	UL94 V-0	ROHS3 Compliant	959
141A10959X	Amphenol CONEC	Not specified	Active	2.54	26	2	Through Hole, Right Angle	Gold	Copper Alloy	PBT, Glass Filled	UL94 V-0	ROHS3 Compliant	921

Engineering Selection Recommendations

Primary Substitute – Amphenol ICC 71922-126LF: The 71922-126LF is the direct functional equivalent manufactured by the original supplier. It maintains identical electrical and mechanical specifications while transitioning to RoHS Compliant status. This part is recommended for designs requiring continuity with the original Amphenol ICC Quickie™ series and is currently in active production with substantial inventory availability (3556 units).

Secondary Substitutes – HARTING SEK Series (09185265911, 09185265913, 09185266911, 09185266913, 09185267911, 09185267913): These HARTING parts are manufacturer-recommended alternatives that meet all critical electrical and mechanical parameters. All are ROHS3 Compliant and in active production. Differentiation among these variants is based on contact length specifications:

Parts ending in "11" or "911": Contact Length - Post 0.177" (4.50mm)
Parts ending in "13" or "913": Contact Length - Post 0.114" (2.90mm)

Selection between these variants depends on application-specific post length requirements. All maintain the same mating contact length (0.240" / 6.10mm) and insulation height (0.335" / 8.51mm).

Alternative Substitute – HARTING 09195266903: This variant uses Polycyclohexylenedimethylene Terephthalate (PCT) glass-filled insulation instead of PBT, with beige insulation color. It is ROHS3 Compliant and active. This part is suitable for applications where insulation material composition is not design-critical.

Alternative Substitute – Amphenol CONEC 141A10959X: This part offers ROHS3 Compliance and active status with a current rating of 1A specified. It is suitable for applications with defined current requirements and represents an alternative source from the Amphenol family.

Frequently Asked Questions (FAQ)

Q: Can the 71922-126 be directly replaced with the 71922-126LF? A: Yes. The 71922-126LF is the direct successor from Amphenol ICC. Both parts share identical connector type, pitch, position count, row configuration, mounting style, shrouding, and termination method. The primary difference is RoHS compliance status, with the 71922-126LF meeting RoHS requirements.

Q: What is the difference between HARTING parts ending in "11/911" and "13/913"? A: The difference is in the contact post length. Parts designated "11" or "911" have a post length of 0.177" (4.50mm), while parts designated "13" or "913" have a post length of 0.114" (2.90mm). The mating contact length remains constant at 0.240" (6.10mm) across all variants. Selection depends on PCB pad depth and solder joint requirements.

Q: Are HARTING SEK series parts electrically compatible with the original 71922-126? A: Yes. All HARTING SEK series substitutes maintain the same pitch (2.54mm), position count (26), row configuration (2 rows), shrouding (4-wall), and termination method (solder). Contact material differs (copper alloy vs. phosphor bronze) and insulation material is PBT glass-filled instead of thermoplastic glass-filled, but these differences do not affect electrical compatibility for standard applications.

Q: What is the significance of the "LF" designation in 71922-126LF? A: The "LF" suffix indicates lead-free compliance, reflecting RoHS Directive adherence. This designation confirms that the part meets current environmental and regulatory requirements for electronic components.

Q: Can I use the HARTING 09195266903 if my design specifies thermoplastic or PBT insulation? A: The 09195266903 uses PCT (Polycyclohexylenedimethylene Terephthalate) glass-filled insulation instead of PBT. If your design has specific insulation material requirements, this part may not be suitable. Refer to design specifications for insulation material constraints before selection.

Q: What packaging options are available for these substitutes? A: The 71922-126LF is supplied in tube packaging. HARTING parts (09185265911, 09185265913, 09185266911, 09185266913, 09185267911, 09185267913, 09195266903) and the Amphenol CONEC 141A10959X are supplied in bulk packaging. Packaging selection may affect procurement logistics and handling procedures.

Q: Are all substitute parts RoHS compliant? A: The 71922-126LF is RoHS Compliant. All HARTING parts and the Amphenol CONEC 141A10959X are ROHS3 Compliant. The original 71922-126 is RoHS non-compliant. For applications requiring RoHS compliance, select from the compliant alternatives listed above.

Q: What is the operating temperature range for these connectors? A: The original 71922-126 does not specify an operating temperature range. HARTING parts specify -55°C to 125°C. The Amphenol CONEC 141A10959X does not specify an operating temperature range. Verify application temperature requirements against available specifications before final selection.
