Amphenol ICC 71918-130R Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 71918-130R is a rectangular connector header with vertical orientation, 30 positions, and 2.54mm pitch designed for through-hole mounting with solder termination. This connector features shrouded 4-wall construction with latch lock/eject hooks and is part of the Quickie™ series. The part is currently obsolete, making equivalent and substitute parts necessary for ongoing production and maintenance applications requiring 30-position 0.100" (2.54mm) pitch header connectors with board-to-cable/wire configuration.

Key Parameters

Parameter	71918-130R Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	30
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Shrouding	Shrouded - 4 Wall
Fastening Type	Latch Lock/Eject Hooks
Contact Shape	Square
Material Flammability Rating	UL94 V-0
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution for the 71918-130R is determined by strict equivalence in the following critical parameters:

Primary Substitution Criteria:

Connector type: Header
Contact type: Male Pin
Number of positions: 30
Number of rows: 2
Pitch - mating: 0.100" (2.54mm)
Row spacing - mating: 0.100" (2.54mm)
Mounting type: Through Hole
Termination: Solder
Shrouding: Shrouded - 4 Wall
Fastening type: Latch Lock/Eject Hooks
Contact shape: Square
Material flammability rating: UL94 V-0
Moisture sensitivity level: 1 (Unlimited)

Substitute parts are grouped into two categories:

Category 1: Direct Amphenol ICC Equivalent

71918-130RLF: Active product status variant with identical electrical and mechanical specifications, differing only in packaging (Tube) and RoHS compliance status (RoHS Compliant).

Category 2: TE Connectivity AMP Connectors (AMP-Latch Series)

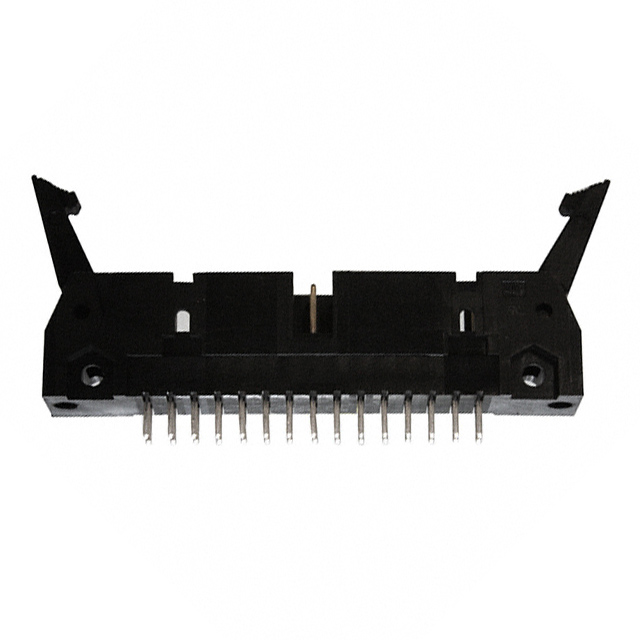

102321-7, 5102321-7, 499206-7, 499922-7, 5499206-7, 5499922-7, 5499923-7: All meet core substitution criteria with identical pitch, position count, mounting type, and termination. These parts feature extended fastening type (Latch Lock/Eject Hooks, Long) and provide active product status with operating temperature range (-65°C ~ 105°C) and voltage rating (250VAC, 1A per contact).

Category 3: 3M 3000 Series

N3440-6302RB, N3440-6303RB: Meet all core substitution criteria with identical pitch, position count, and mounting configuration. These parts feature extended fastening type (Latch Lock/Eject Hooks, Long), operating temperature range (-55°C ~ 105°C), and higher current rating (1.75A).

Parameter Comparison

Parameter	71918-130R	71918-130RLF	102321-7 / 5102321-7	499206-7 / 5499206-7	499922-7 / 5499922-7	5499923-7	N3440-6302RB	N3440-6303RB
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	3M	3M
Series	Quickie™	Quickie™	AMP-Latch	AMP-Latch	AMP-Latch	AMP-Latch	3000	3000
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active
Number of Positions	30	30	30	30	30	30	30	30
Number of Rows	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall	Shrouded - 4 Wall
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long	Latch Lock/Eject Hooks, Long
Contact Length - Mating	0.228" (5.80mm)	0.228" (5.80mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)	0.240" (6.10mm)
Contact Length - Post	0.114" (2.90mm)	0.114" (2.90mm)	0.155" (3.94mm)	0.110" (2.79mm)	0.110" (2.79mm)	0.155" (3.94mm)	0.112" (2.84mm)	0.155" (3.94mm)
Insulation Height	0.685" (17.40mm)	0.685" (17.40mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.549" (13.94mm)	0.680" (17.27mm)	0.680" (17.27mm)
Contact Shape	Square	Square	Square	Square	Square	Square	Square	Square
Contact Finish - Mating	Gold, GXT™	Gold, GXT™	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold or Gold-Palladium	Gold	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	30.0µin (0.76µm)	15.0µin (0.38µm)	15.0µin (0.38µm)	30.0µin (0.76µm)	30.0µin (0.76µm)
Contact Finish - Post	Not specified	Tin	Tin-Lead	Tin-Lead	Tin-Lead	Tin	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze	Not specified	Not specified	Not specified	Not specified	Copper Alloy	Copper Alloy
Operating Temperature	Not specified	Not specified	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 105°C
Current Rating (Amps)	Not specified	Not specified	1A per Contact	1A	1A	1A per Contact	1.75A	1.75A
Voltage Rating	Not specified	Not specified	250VAC	250VAC	250VAC	250VAC	Not specified	Not specified
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS non-compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

Primary Recommendation: 71918-130RLF

The 71918-130RLF is the direct equivalent to the obsolete 71918-130R, maintaining identical electrical and mechanical specifications within the Amphenol ICC Quickie™ series. This part is currently in active production status with 680 pieces in stock. The primary advantage is design continuity with the original specification. The 71918-130RLF achieves RoHS Compliant status, addressing regulatory requirements for new designs. Packaging is supplied in Tube format.

Secondary Recommendations: TE Connectivity AMP-Latch Series

The TE Connectivity AMP-Latch series (102321-7, 5102321-7, 499206-7, 499922-7, 5499206-7, 5499922-7, 5499923-7) provides active product status with extended availability. These parts meet all core substitution criteria and offer specified operating temperature range (-65°C ~ 105°C) and voltage rating (250VAC). Selection within this series depends on contact post length requirements and RoHS compliance needs:

5102321-7 and 5499923-7 provide ROHS3 Compliant or RoHS Compliant status with 0.155" (3.94mm) contact post length, matching the original 71918-130R post length specification.
499206-7 and 5499206-7 offer 0.110" (2.79mm) contact post length with RoHS Compliant status.
499922-7 and 5499922-7 provide 0.110" (2.79mm) contact post length with ROHS3 Compliant status.

Tertiary Recommendations: 3M 3000 Series

The 3M N3440-6302RB and N3440-6303RB connectors meet all core substitution criteria with RoHS Compliant status and higher current rating (1.75A). These parts feature operating temperature range (-55°C ~ 105°C) and are suitable for applications requiring enhanced current handling. N3440-6303RB provides 0.155" (3.94mm) contact post length; N3440-6302RB provides 0.112" (2.84mm) contact post length.

Compliance Considerations

All substitute parts maintain UL94 V-0 material flammability rating and MSL 1 (Unlimited) moisture sensitivity level. Parts with RoHS Compliant or ROHS3 Compliant status are required for new designs subject to RoHS regulations. The original 71918-130R is RoHS non-compliant; therefore, 71918-130RLF or equivalent compliant alternatives are necessary for regulatory compliance in new applications.

Frequently Asked Questions (FAQ)

Q: Can I use TE Connectivity AMP-Latch parts as direct replacements for the Amphenol ICC 71918-130R?

A: Yes. TE Connectivity AMP-Latch series parts (102321-7, 5102321-7, 499206-7, 499922-7, 5499206-7, 5499922-7, 5499923-7) meet all core electrical and mechanical substitution criteria: 30 positions, 2 rows, 0.100" (2.54mm) pitch, through-hole mounting, solder termination, shrouded 4-wall construction, and square contact shape. However, contact post length varies between parts. Verify post length compatibility with your PCB design before selection.

Q: What is the difference between 71918-130R and 71918-130RLF?

A: Both parts are Amphenol ICC Quickie™ series connectors with identical electrical and mechanical specifications. The primary differences are: 71918-130RLF is in active production status (71918-130R is obsolete), 71918-130RLF is RoHS Compliant (71918-130R is RoHS non-compliant), and 71918-130RLF is packaged in Tube format. For new designs, 71918-130RLF is the recommended direct replacement.

Q: How do contact post lengths differ among substitute parts, and why does this matter?

A: Contact post length determines how far the connector pin extends into the PCB. The original 71918-130R specifies 0.114" (2.90mm) post length. Substitute parts vary: 71918-130RLF maintains 0.114" (2.90mm); TE Connectivity parts range from 0.110" (2.79mm) to 0.155" (3.94mm); 3M parts range from 0.112" (2.84mm) to 0.155" (3.94mm). Verify your PCB design accommodates the selected post length to ensure proper solder joint formation and mechanical stability.

Q: Are there RoHS compliance differences among the substitute parts?

A: Yes. The original 71918-130R is RoHS non-compliant. Substitute parts offer varying compliance levels: 71918-130RLF, 499206-7, 5499206-7, and 5499923-7 are RoHS Compliant; 5102321-7, 499922-7, 5499922-7 are ROHS3 Compliant; N3440-6302RB and N3440-6303RB are RoHS Compliant. For applications subject to RoHS regulations, select a compliant part. ROHS3 Compliant parts meet the most current RoHS requirements.

Q: What packaging options are available for substitute parts?

A: Packaging varies by part number. 71918-130RLF is supplied in Tube format. TE Connectivity parts are supplied in Tray format (102321-7, 5102321-7, 499206-7, 5499206-7, 5499922-7) or Bulk format (499922-7, 5499923-7). 3M parts are supplied in Tray format. Packaging selection may affect procurement lead times and handling requirements.

Q: Can I use 3M N3440 series connectors as substitutes?

A: Yes. N3440-6302RB and N3440-6303RB meet all core substitution criteria with identical pitch, position count, and mounting configuration. These parts offer higher current rating (1.75A versus 1A for TE Connectivity parts) and RoHS Compliant status. Operating temperature range is -55°C ~ 105°C. Contact post length differs: N3440-6302RB provides 0.112" (2.84mm); N3440-6303RB provides 0.155" (3.94mm). Verify post length compatibility with your PCB design.

Q: What is the difference between Tin and Tin-Lead contact finish on the post?

A: Contact finish on the post affects solder joint formation and reliability. Tin finish (71918-130RLF, 5102321-7, 5499206-7, 5499923-7, N3440-6302RB, N3440-6303RB) is lead-free and complies with RoHS regulations. Tin-Lead finish (102321-7, 499206-7, 499922-7) contains lead and is used in legacy designs. For new designs, Tin finish is standard. Finish thickness also varies; thicker finishes (200.0µin for 3M parts) provide enhanced durability.

Q: Are all substitute parts currently in stock?

A: Inventory availability varies. 71918-130RLF has 680 pieces in stock. TE Connectivity parts range from 1103 to 2569 pieces in stock depending on part number. 3M parts have 1089 to 1466 pieces in stock. Verify current inventory with your supplier before finalizing part selection for time-sensitive applications.
