Equivalent & Substitute Parts for Qualtek Electronics 718-30/28

Part Overview

The Qualtek Electronics 718-30/28 is a power entry connector receptacle designed for IEC 320-2-2/H panel mount applications with snap-in installation. This component features female sockets for AC power inlet connections in commercial unfiltered configurations. The product is currently obsolete, making equivalent substitute parts necessary for ongoing maintenance, repair, and new design implementations where compatible alternatives are required.

Substiute Parts

718-30/28

Qualtek Electronics Corp.In Stock: 759718-30/28 Datasheet

Current PartRFQ

716W-X2/02

QualtekIn Stock: 12382716W-X2/02 Datasheet

MFR RecommendedRFQ

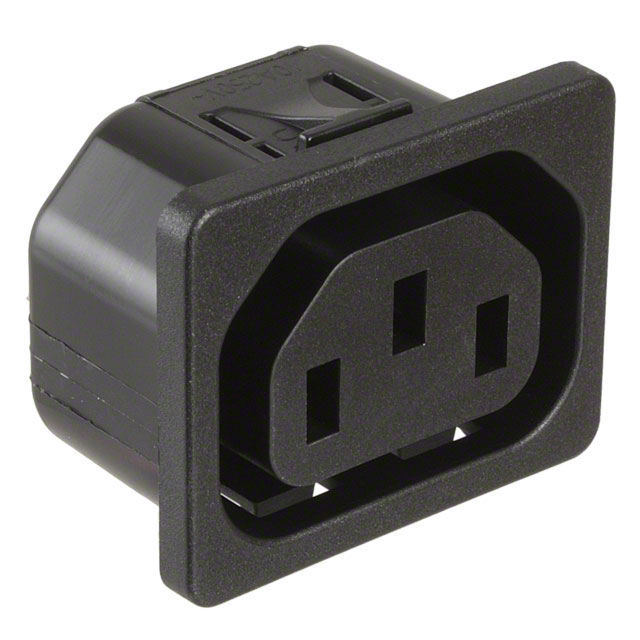

6600.4215

SCHURTER Inc.In Stock: 12376600.4215 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 718-30/28 are identified based on the following critical parameters that determine functional compatibility:

Primary Compatibility Criteria:

• Connector type: Receptacle, Female Sockets
• Mounting configuration: Panel Mount, Snap-In
• Filter classification: Unfiltered - Commercial
• Termination method: Quick Connect
• IEC 320 series compliance
• RoHS3 compliance status

Substitute Parts Identified:

1. Qualtek 716W-X2/02 - Active product with IEC 320-2-2/F connector style, 3-position configuration, 10A/250VAC rating
2. SCHURTER 6600.4215 - Active product with IEC 320-2-2/F connector style, 3-position configuration, 10A/250VAC rating, IP30 ingress protection

Both substitutes maintain the core receptacle, female socket, panel mount snap-in architecture while offering enhanced electrical specifications and active product status.

Parameter Comparison

Engineering Selection Recommendations

Qualtek 716W-X2/02 Selection Criteria:

• Maintains manufacturer continuity with same-brand substitute
• Active product status ensures ongoing availability and supply chain stability
• Expanded approval certifications (CSA, TUV, UL) provide broader regulatory coverage
• Panel cutout dimensions are within acceptable tolerance of original specification
• Supports higher current and voltage ratings (10A/250VAC) compared to unspecified original ratings

SCHURTER 6600.4215 Selection Criteria:

• Broader international approval coverage (CCC, cULus, ENEC) suitable for global applications
• IP30 ingress protection rating provides enhanced environmental sealing
• Light pipe feature enables status indication capability
• Panel cutout dimensions closely match original specification
• Active product status with established supply availability
• UL94 V-0 material flammability rating provides enhanced safety compliance

Both substitutes are suitable for applications requiring IEC 320-2-2 receptacle functionality with panel mount snap-in installation. Selection between them depends on specific regulatory requirements, environmental conditions, and indication feature requirements.

Frequently Asked Questions (FAQ)

Q: Can the 716W-X2/02 directly replace the 718-30/28 in existing panel designs? A: The 716W-X2/02 shares the same mounting type (panel mount, snap-in) and similar panel cutout dimensions (32.60mm x 25.30mm versus 32.26mm x 24.77mm). However, the termination connector size differs (0.189" versus 0.110"), requiring verification of mating connector compatibility before installation.

Q: What is the primary difference between the two substitute parts? A: The Qualtek 716W-X2/02 maintains manufacturer consistency with the original part. The SCHURTER 6600.4215 offers enhanced features including IP30 ingress protection, light pipe capability, and broader international certifications (CCC, cULus, ENEC). Both provide 10A/250VAC electrical ratings and ROHS3 compliance.

Q: Are panel cutout modifications required when substituting these parts? A: Panel cutout dimensions are comparable across all three parts (approximately 32-33mm x 24-25mm). Minor mechanical adjustments may be necessary depending on panel tolerance specifications and snap-in mechanism design variations.

Q: What is the significance of the position count difference (2 vs. 3)? A: The original 718-30/28 features 2 positions while both substitutes feature 3 positions. This indicates different IEC 320 connector variants (2/H versus 2/F). Compatibility depends on the mating connector type in the application.

Q: Do both substitutes meet the original approval requirements? A: The original part carries CSA and UL approvals. The 716W-X2/02 maintains these certifications plus TUV. The SCHURTER 6600.4215 carries CCC, cULus, and ENEC certifications. Verify that substitute certifications align with your specific regulatory requirements.

Q: What panel thickness range is supported by each substitute? A: The original part specifies 0.118" (3.00mm) panel thickness. The 716W-X2/02 supports 0.031" to 0.059" (0.79mm to 1.50mm). The SCHURTER 6600.4215 supports 0.059" (1.50mm). Panel thickness compatibility must be confirmed for your specific installation.
