710A205F UHF Connector Plug Equivalent & Substitute Parts

Part Overview

The 710A205F is an active UHF connector plug manufactured by Winchester Interconnect, designed for RF coaxial applications. This male pin connector features crimp termination for both contact and shield, operates at frequencies up to 500 MHz, and is compatible with RG-58 cable groups. The connector is rated for 750 V and supports 500 mating cycles. With 1123 pieces in current inventory and RoHS Compliant status, this component serves as a standard interface solution for RF signal transmission in free-hanging (in-line) configurations. Equivalent substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when procurement requirements necessitate alternative manufacturers.

Substiute Parts

710A205F

Winchester InterconnectIn Stock: 1161710A205F Datasheet

Current PartRFQ

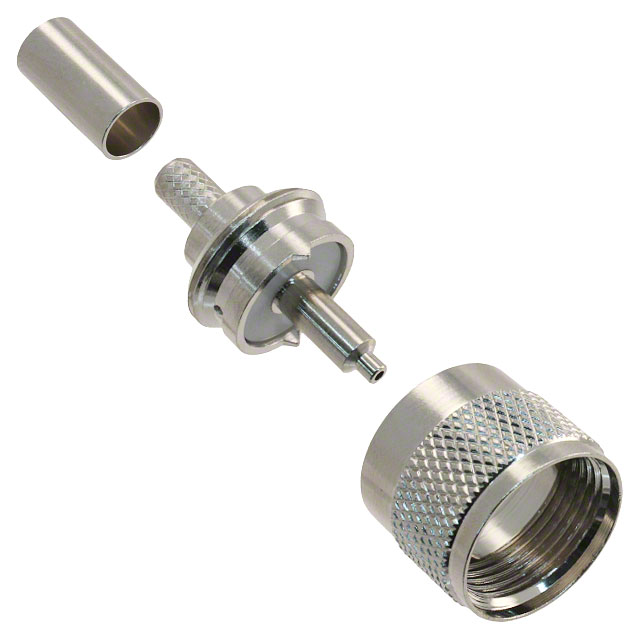

25-7307

Cinch Connectivity Solutions AIM-CambridgeIn Stock: 131825-7307 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 710A205F are identified based on strict equivalence across critical electrical and mechanical parameters. The substitution logic is based on the following matching criteria:

Primary Matching Parameters:

• Connector Style: UHF
• Connector Type: Plug, Male Pin
• Contact Termination: Crimp
• Shield Termination: Crimp
• Impedance: Non-Constant
• Mounting Type: Free Hanging (In-Line)
• Cable Group: RG-58
• Fastening Type: Threaded
• Frequency - Max: 500 MHz
• Number of Ports: 1
• Body Material: Brass
• Body Finish: Nickel
• Mating Cycles: 500
• MSL: 1 (Unlimited)

The substitute part 25-7307 (Cinch Connectivity Solutions AIM-Cambridge) meets all primary matching parameters and is therefore classified as a parametric equivalent. Both parts share identical connector style, termination methods, impedance characteristics, mounting configuration, and RF performance specifications. Both are active products with current inventory availability and regulatory compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

Both the 710A205F and 25-7307 are active products with current inventory and regulatory compliance certifications. The 710A205F carries RoHS Compliant status, while the 25-7307 carries ROHS3 Compliant status and is REACH Affected.

Selection Considerations Based on Provided Specifications:

The 710A205F operates across a wider temperature range (-55°C ~ 200°C) compared to the 25-7307 (-55°C ~ 85°C). Applications requiring operation above 85°C necessitate the 710A205F.

The 710A205F is rated for 750 V, while the 25-7307 is rated for 500 V. Applications requiring voltage ratings above 500 V necessitate the 710A205F.

The 710A205F uses PTFE dielectric material, while the 25-7307 uses Polyoxymethylene (POM) Acetal dielectric material. These materials have different electrical and thermal properties that may affect performance in specific RF applications.

Both parts share identical connector geometry, termination methods, impedance characteristics, and RF frequency specifications, making them mechanically and electrically compatible at the interface level for applications within the overlapping operational envelope.

Frequently Asked Questions (FAQ)

Q: Can the 25-7307 be used as a direct replacement for the 710A205F in all applications?

A: The 25-7307 is a parametric equivalent for connector style, type, termination, impedance, mounting, cable compatibility, and RF frequency specifications. However, applications operating above 85°C, above 500 V, or requiring PTFE dielectric properties must use the 710A205F. Verify application operating conditions against the specified parameter ranges.

Q: What are the key differences between these two UHF connector plugs?

A: The primary differences are: (1) Operating temperature range: 710A205F supports -55°C ~ 200°C versus 25-7307 at -55°C ~ 85°C; (2) Voltage rating: 710A205F is 750 V versus 25-7307 at 500 V; (3) Dielectric material: 710A205F uses PTFE versus 25-7307 uses POM Acetal; (4) Regulatory status: 710A205F is RoHS Compliant versus 25-7307 is ROHS3 Compliant and REACH Affected.

Q: Are the crimp termination specifications identical between these parts?

A: Both parts feature crimp termination for both contact and shield. Both are designed for RG-58 cable group compatibility with identical fastening type (threaded) and mating cycle rating (500 cycles).

Q: What packaging options are available?

A: The 710A205F packaging information is not specified in the provided data. The 25-7307 is available in Bulk packaging. Contact the respective manufacturers for detailed packaging options.

Q: Do both parts meet current regulatory requirements?

A: The 710A205F is RoHS Compliant. The 25-7307 is ROHS3 Compliant and is REACH Affected. Both carry MSL 1 (Unlimited) rating. Verify regulatory requirements for your specific application and region.

Q: What is the maximum frequency rating for these connectors?

A: Both the 710A205F and 25-7307 are rated for a maximum frequency of 500 MHz, making them suitable for RF applications within this frequency range.

Q: Are these connectors suitable for high-temperature applications?

A: The 710A205F operates from -55°C to 200°C and is suitable for high-temperature applications. The 25-7307 operates from -55°C to 85°C and is limited to lower temperature ranges. Select based on application temperature requirements.
