Toggle Switch SPDT 7103SD9AV2BE Equivalent & Substitute Parts

Part Overview

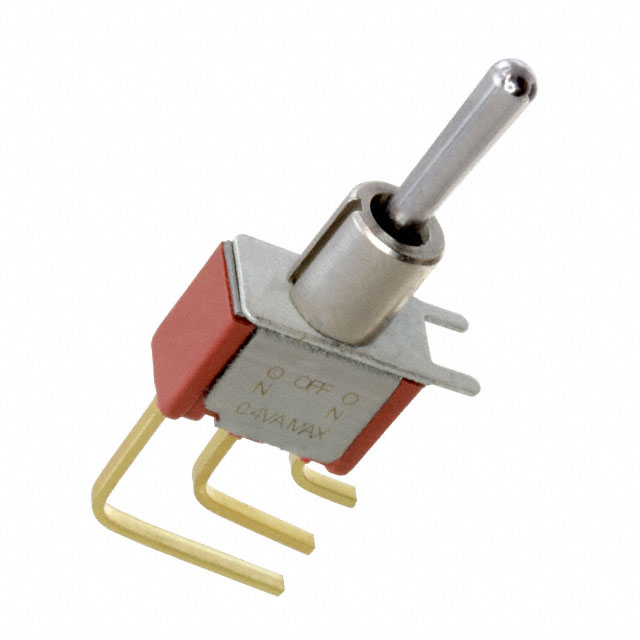

The C&K 7103SD9AV2BE is an active SPDT toggle switch designed for through-hole, right-angle vertical mounting applications. This switch operates at 0.4VA with voltage ratings of 20V AC/DC and features epoxy sealed terminals with a 40,000-cycle electrical life. The part is ROHS3 compliant and REACH affected, making it suitable for regulated industrial and commercial applications. Substitute parts are identified when equivalent functional performance can be maintained within the allowed electrical and mechanical parameters of this product category.

Substiute Parts

7103SD9AV2BE

C&KIn Stock: 10567103SD9AV2BE Datasheet

Current PartRFQ

100SP3T1B4M7QE

E-SwitchIn Stock: 1142100SP3T1B4M7QE Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for SPDT toggle switches is determined by the following critical parameters:

Circuit Configuration: Both the main part and substitute must maintain SPDT (Single Pole Double Throw) topology to preserve switching logic and contact arrangement.

Switch Function: On-Off-On operation must be preserved to ensure identical behavioral characteristics in the application.

Mounting Type: Through-hole, right-angle vertical orientation must be maintained for mechanical compatibility with existing PCB layouts and panel cutouts.

Termination Style: PC pin termination is required for direct compatibility with standard through-hole soldering processes.

Operating Temperature Range: The substitute must support the full -30°C to 85°C operating window to ensure reliability across the intended application environment.

Electrical Life: A minimum of 40,000 cycles is required to match the durability specification of the main part.

Compliance Status: Both ROHS3 compliance and active product status are mandatory for regulatory and supply chain continuity.

The E-Switch 100SP3T1B4M7QE meets these substitution criteria while offering enhanced electrical ratings, providing design margin for applications requiring higher current or voltage capacity.

Parameter Comparison

Engineering Selection Recommendations

Both the C&K 7103SD9AV2BE and E-Switch 100SP3T1B4M7QE are active products with ROHS3 compliance and identical ECCN/HTSUS classifications, ensuring regulatory and supply chain compatibility.

The E-Switch 100SP3T1B4M7QE provides higher electrical ratings (5A at 120V AC, 28V DC) compared to the main part (0.4VA at 20V AC/DC). This substitution is valid for applications operating within the main part's electrical envelope, as the substitute's higher ratings provide design margin without compromising functional compatibility.

Both parts share identical circuit topology (SPDT), switch function (On-Off-On), mounting configuration (through-hole right-angle vertical), termination style (PC pin), operating temperature range (-30°C to 85°C), and electrical life (40,000 cycles). The actuator length difference (12.45mm vs. 10.41mm) is a minor mechanical variation that does not affect electrical substitutability.

Selection between these parts should be based on supply availability, lead time, and cost considerations, as both meet the functional and compliance requirements for this product category.

Frequently Asked Questions (FAQ)

Q: Can the E-Switch 100SP3T1B4M7QE directly replace the C&K 7103SD9AV2BE in existing designs?

A: Yes, within the electrical operating parameters of the original design. Both parts maintain identical SPDT circuit topology, On-Off-On switch function, through-hole right-angle vertical mounting, PC pin termination, and operating temperature range. The substitute's higher current and voltage ratings do not create compatibility issues for applications designed for the main part's 0.4VA/20V specification.

Q: What is the significance of the actuator length difference between these parts?

A: The actuator length difference (12.45mm vs. 10.41mm) is a mechanical dimension that may affect panel engagement depth. Verify that the application's panel thickness and cutout design accommodate the substitute's 10.41mm actuator length to ensure proper mechanical fit and operation.

Q: Are both parts suitable for high-reliability applications?

A: Both parts are active products with ROHS3 compliance, epoxy sealed terminals, 40,000-cycle electrical life, and MSL rating of 1 (unlimited moisture sensitivity). These specifications support use in industrial and commercial applications. Compliance certifications (ROHS3, EAR99, HTSUS 8536.50.9065) are identical for both parts.

Q: What is the difference in REACH status between these parts?

A: The C&K 7103SD9AV2BE is REACH affected, while the E-Switch 100SP3T1B4M7QE is REACH unaffected. For applications subject to REACH regulations, verify that the substitute's REACH status aligns with your supply chain and regulatory requirements.

Q: Can these parts be used interchangeably in the same PCB assembly?

A: Electrical interchangeability is confirmed. Mechanical interchangeability requires verification of the actuator length compatibility with the panel cutout and mounting structure. Both parts use identical PC pin termination and through-hole mounting, supporting direct PCB soldering compatibility.
