C&K 7101SPCWZGE Toggle Switch SPDT Equivalent & Substitute Parts

Part Overview

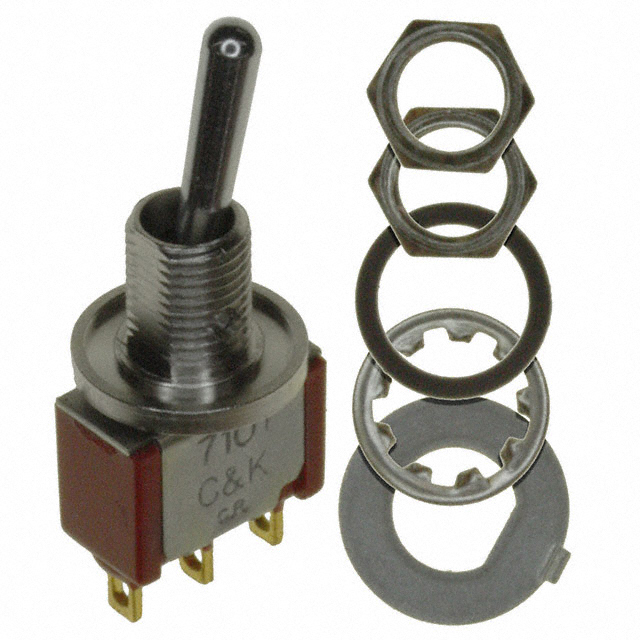

The C&K 7101SPCWZGE is an active production toggle switch featuring SPDT (Single Pole Double Throw) circuitry with panel mount configuration. This component operates at 5A AC/DC with 120V AC and 28V DC voltage ratings, designed for applications requiring reliable switching with IP67 ingress protection. Alternative equivalent parts may be required due to inventory availability, lead time considerations, or specific application constraints such as electrical life cycle requirements or packaging format preferences.

Substiute Parts

7101SPCWZGE

C&KIn Stock: 7807101SPCWZGE Datasheet

Current PartRFQ

100SP1T1B9M1QEH

E-SwitchIn Stock: 1517100SP1T1B9M1QEH Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the C&K 7101SPCWZGE is determined by strict alignment with the following critical parameters:

• Circuit Configuration: SPDT topology is mandatory for functional equivalence
• Current Rating: 5A AC/DC minimum requirement
• Voltage Ratings: 120V AC and 28V DC minimum specifications
• Mounting Interface: Panel mount with circular 6.35mm diameter cutout and 1/4-40 bushing thread
• Termination: Solder lug connection style
• Operating Temperature: -30°C to 85°C range
• Compliance: ROHS3 compliance required

The E-Switch 100SP1T1B9M1QEH meets all mandatory substitution criteria across circuit topology, electrical ratings, mechanical interface, and environmental specifications. Both components share identical voltage and current ratings, panel mount configuration, and temperature operating range.

Parameter Comparison

Engineering Selection Recommendations

Both components maintain active product status and ROHS3 compliance, establishing baseline qualification for substitution. The C&K 7101SPCWZGE provides extended electrical life at 100,000 cycles with specified IP67 ingress protection. The E-Switch 100SP1T1B9M1QEH delivers equivalent electrical performance with 40,000 cycle electrical life rating and unspecified ingress protection characteristics.

Selection between these components should be based on application-specific requirements for electrical cycle endurance and environmental sealing specifications. The C&K component is appropriate for applications demanding maximum cycle life and confirmed waterproof operation. The E-Switch component is suitable for applications where the specified cycle life is adequate and ingress protection requirements are less stringent.

Frequently Asked Questions (FAQ)

Q: Can the E-Switch 100SP1T1B9M1QEH directly replace the C&K 7101SPCWZGE in existing designs?

A: Direct mechanical and electrical substitution is possible. Both components share identical panel cutout dimensions (6.35mm circular), bushing thread (1/4-40), voltage ratings (120V AC / 28V DC), current rating (5A AC/DC), and solder lug termination. Verify application requirements for electrical cycle life and ingress protection before implementation.

Q: What are the differences in actuator design between these components?

A: The C&K 7101SPCWZGE features an anti-rotation actuator at 10.67mm length, while the E-Switch 100SP1T1B9M1QEH uses a standard round actuator at 10.41mm length. These variations may affect panel aesthetics and operator feel but do not impact electrical function or mechanical interface compatibility.

Q: How do electrical life ratings affect component selection?

A: The C&K component is rated for 100,000 switching cycles compared to 40,000 cycles for the E-Switch component. Applications requiring frequent switching operations should prioritize the C&K component to ensure extended service life. Applications with lower switching frequency may operate within the E-Switch component's cycle rating.

Q: What packaging considerations apply to these components?

A: The C&K 7101SPCWZGE is supplied in tray packaging, while the E-Switch 100SP1T1B9M1QEH is supplied in bulk packaging. Packaging format does not affect component performance or compatibility but may influence procurement, handling, and inventory management procedures.

Q: Are both components compliant with environmental regulations?

A: Both components are ROHS3 compliant. The C&K component is REACH Affected, while the E-Switch component is REACH Unaffected. Verify regulatory requirements for your specific application and geographic market before final component selection.
