C&K 7101P3CWAV2ME Toggle Switch SPDT 5A 120V - Equivalent & Substitute Parts

Part Overview

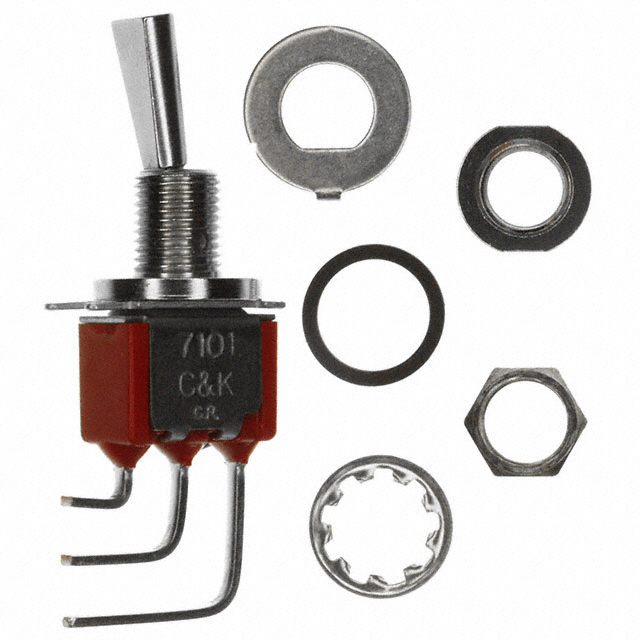

The C&K 7101P3CWAV2ME is a toggle switch with Single Pole Double Throw (SPDT) configuration rated for 5A at 120V AC. This panel-mount switch features a right-angle vertical orientation with a flat anti-rotation actuator and epoxy-sealed PC pin termination. The part is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new design implementations where this switch type is required.

Substiute Parts

7101P3CWAV2ME

C&KIn Stock: 7237101P3CWAV2ME Datasheet

Current PartRFQ

7101P3CWAV2SE

C&KIn Stock: 10267101P3CWAV2SE Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 7101P3CWAV2ME is determined by strict equivalence across the following critical parameters:

• Circuit Configuration: SPDT (Single Pole Double Throw)
• Switch Function: On-On operation
• Current Rating: 5A (AC/DC)
• Voltage Ratings: 120V AC / 28V DC
• Mounting Geometry: Panel Mount, Right Angle, Vertical orientation
• Actuator Specifications: Flat Anti-Rotation type, 11.43mm length
• Termination: PC Pin with epoxy-sealed terminals
• Panel Interface: Circular 6.35mm diameter cutout with 1/4-40 bushing thread
• Environmental Rating: IP67 ingress protection
• Temperature Range: -30°C to 85°C
• Mechanical Life: 100,000 electrical cycles

The substitute part 7101P3CWAV2SE meets all these criteria and is classified as an active product, providing functional and mechanical interchangeability with the obsolete 7101P3CWAV2ME.

Parameter Comparison

Engineering Selection Recommendations

The 7101P3CWAV2SE is the direct functional equivalent for the obsolete 7101P3CWAV2ME. Both parts share identical electrical ratings, mechanical dimensions, and operational specifications. The primary distinction is product status and regulatory compliance.

The 7101P3CWAV2SE is an active product with ROHS3 compliance, making it the appropriate selection for new designs and systems requiring current regulatory adherence. For legacy system maintenance where the original 7101P3CWAV2ME is no longer available, the 7101P3CWAV2SE provides complete electrical and mechanical interchangeability without design modification.

The difference in REACH status reflects regulatory classification changes and does not affect functional performance or compatibility in equivalent applications.

Frequently Asked Questions (FAQ)

Q: Can the 7101P3CWAV2SE directly replace the 7101P3CWAV2ME in existing installations?

A: Yes. Both parts are mechanically and electrically identical. The panel cutout dimensions, bushing thread size, actuator geometry, and electrical ratings are equivalent. Direct substitution requires no circuit or mechanical redesign.

Q: What is the significance of the RoHS compliance difference?

A: The 7101P3CWAV2ME is RoHS non-compliant, while the 7101P3CWAV2SE is ROHS3 compliant. For new designs or systems subject to RoHS regulations, the 7101P3CWAV2SE is the required selection. For legacy systems already deployed with the non-compliant version, no change is mandated unless regulatory requirements apply to the end application.

Q: Are the packaging differences between these parts relevant to substitution?

A: The 7101P3CWAV2ME is packaged with a dash designation, while the 7101P3CWAV2SE uses bulk packaging. Packaging does not affect component performance or mechanical compatibility. Selection depends on procurement quantity and inventory management requirements.

Q: What electrical parameters determine substitution eligibility?

A: The critical electrical parameters are SPDT circuit configuration, 5A current rating at both AC and DC, 120V AC and 28V DC voltage ratings, and 100,000 cycle electrical life. Any substitute must match all these specifications.

Q: Are there mechanical constraints for panel installation?

A: Both parts require a circular 6.35mm diameter panel cutout with a 1/4-40 bushing thread. The right-angle vertical mounting orientation and 11.43mm actuator length are fixed. Panel designs must accommodate these dimensions for either part.
