Equivalent & Substitute Parts for Coto Technology 7101-12-1001 Reed Relay

Part Overview

The Coto Technology 7101-12-1001 is a through-hole mounted reed relay with SPST-NO contact configuration, rated for 500 mA at 12 VDC coil voltage. This component is classified as obsolete product status. Locating equivalent and substitute parts is necessary due to the discontinued nature of the 7101 series, which may impact procurement availability and lead times for new designs or maintenance applications.

Substiute Parts

7101-12-1001

Coto TechnologyIn Stock: 6567101-12-1001 Datasheet

Current PartRFQ

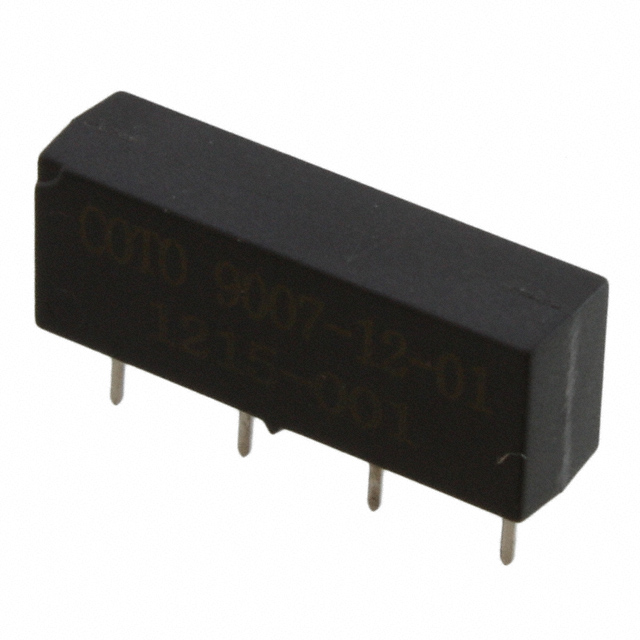

9007-12-01

Coto TechnologyIn Stock: 18219007-12-01 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 7101-12-1001 is determined by equivalence across the following critical parameters:

Mandatory Matching Parameters:

• Coil voltage: 12 VDC
• Contact form: SPST-NO (1 Form A)
• Contact rating: 500 mA minimum
• Switching voltage: 200 VAC, 200 VDC maximum or greater
• Mounting type: Through hole
• Termination style: PC pin
• Operating temperature range: -20°C to 85°C minimum
• Coil type: Non latching
• Integrated diode feature

The Coto Technology 9007-12-01 satisfies all mandatory matching parameters and qualifies as a direct substitute. Both components are manufactured by Coto Technology, share identical electrical specifications for coil voltage, contact configuration, current rating, and switching voltage limits, and maintain compatible through-hole PC pin termination.

Parameter Comparison

Engineering Selection Recommendations

The Coto Technology 9007-12-01 is a qualified substitute for the obsolete 7101-12-1001 based on the following factors:

Product Status Consideration: The 9007-12-01 maintains active product status, ensuring ongoing availability and supply chain continuity compared to the discontinued 7101-12-1001.

Electrical Equivalence: Both relays operate at identical coil voltage (12 VDC), contact configuration (SPST-NO), current rating (500 mA), and switching voltage limits (200 VAC/200 VDC maximum). Functional compatibility is established across all primary electrical parameters.

Compliance Alignment: Both components maintain ROHS3 compliance, REACH unaffected status, and identical ECCN and HTSUS classifications, ensuring regulatory and export control consistency.

Physical Compatibility: Through-hole mounting type and PC pin termination style are identical, supporting direct board-level replacement without layout modifications.

Operational Differences: The 9007-12-01 exhibits faster operate time (0.5 ms versus 1 ms) and slightly higher coil current draw (12 mA versus 7.5 mA). These differences do not prevent substitution but represent performance variations within the same functional class.

Frequently Asked Questions (FAQ)

Q: Can the 9007-12-01 directly replace the 7101-12-1001 in existing circuit designs?

A: Yes. Both relays share identical coil voltage, contact configuration, current rating, and switching voltage specifications. Through-hole mounting and PC pin termination are compatible. Direct substitution is supported at the circuit level.

Q: What are the differences in coil current between these two relays?

A: The 7101-12-1001 draws 7.5 mA coil current, while the 9007-12-01 draws 12 mA. This difference reflects design variations between the 7000 and 9000 series but does not prevent substitution. Circuit designs must accommodate the higher current draw of the 9007-12-01.

Q: Are there timing differences between these relays?

A: Yes. The 9007-12-01 operates faster (0.5 ms operate time versus 1 ms) and has a slightly longer release time (0.2 ms versus 0.1 ms). Applications with strict timing requirements must evaluate these performance variations.

Q: What is the packaging difference between these parts?

A: The 7101-12-1001 packaging is not specified in available data. The 9007-12-01 is supplied in tube packaging. Packaging format may affect handling and storage procedures but does not impact electrical or mechanical compatibility.

Q: Are both relays RoHS compliant?

A: Yes. Both the 7101-12-1001 and 9007-12-01 are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements.

Q: Why is the 7101-12-1001 classified as obsolete?

A: The 7101 series has been discontinued by Coto Technology. The 9000 series (Spartan) represents the current active product line for equivalent 12 VDC SPST-NO reed relay applications.
