Qualtek 707-00/28 AC Power Connector: Equivalent & Substitute Parts

Part Overview

The Qualtek 707-00/28 is an IEC 320-C16 power entry connector receptacle designed for panel mount applications with male blade termination. This active product features quick connect termination (0.110" / 2.8mm) and supports 10A at 250VAC, suitable for commercial unfiltered power inlet applications. Substitute parts are identified to provide alternative sourcing options with compatible electrical and mechanical specifications for IEC 320-C16 panel mount receptacle configurations.

Substiute Parts

707-00/28

QualtekIn Stock: 828707-00/28 Datasheet

Current PartRFQ

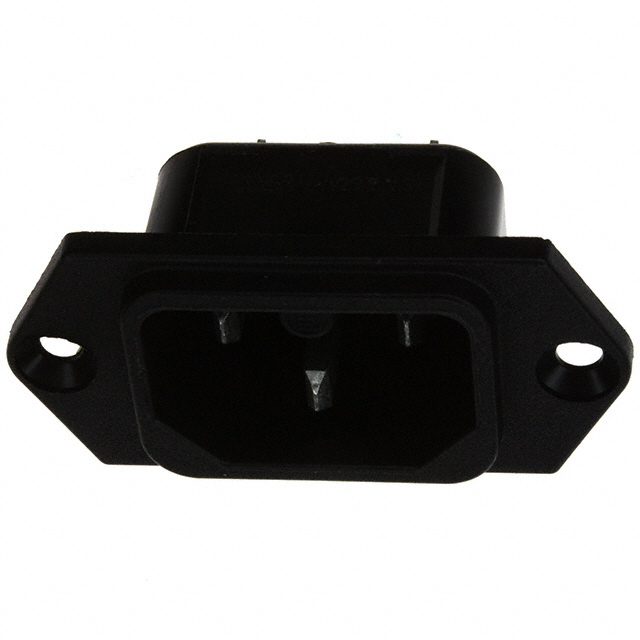

6110.3100

SCHURTER Inc.In Stock: 33386110.3100 Datasheet

MFR RecommendedRFQ

6182.0006

SCHURTER Inc.In Stock: 13556182.0006 Datasheet

MFR RecommendedRFQ

6182.0007

SCHURTER Inc.In Stock: 14036182.0007 Datasheet

MFR RecommendedRFQ

6182.0008

SCHURTER Inc.In Stock: 9886182.0008 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the Qualtek 707-00/28 are grouped based on the following critical parameters that determine functional compatibility:

Primary Compatibility Criteria:

• Connector Style: IEC 320-C16 or IEC 320-2-2/F
• Connector Type: Receptacle configuration
• Current Rating: 10A minimum
• Voltage Rating: 250VAC
• Number of Positions: 3
• Mounting Type: Panel Mount, Flange
• Filter Type: Unfiltered - Commercial
• Fuse Accommodation: No

Termination Variations: Substitute parts include alternative termination methods (Solder Eyelet, Quick Connect - 0.250") that differ from the main part's Quick Connect - 0.110" termination. These variations accommodate different circuit board or harness connection requirements while maintaining electrical performance.

Connector Gender Variation: Part 6110.3100 maintains IEC 320-C16 male blade configuration identical to the main part. Parts 6182.0006, 6182.0007, and 6182.0008 utilize IEC 320-2-2/F female socket configuration, representing a different connector gender while maintaining equivalent current and voltage ratings.

Parameter Comparison

Engineering Selection Recommendations

SCHURTER 6110.3100 provides the closest functional equivalent to the Qualtek 707-00/28, maintaining identical IEC 320-C16 male blade connector configuration and electrical ratings. The primary difference is termination method (Solder Eyelet vs. Quick Connect - 0.110"), which requires circuit board design compatibility assessment. This part carries CCC, cULus, and ENEC certifications and includes UL94 V-0 material flammability rating with IP40 ingress protection.

SCHURTER 6182.0006, 6182.0007, and 6182.0008 represent alternative configurations using IEC 320-2-2/F female socket connectors with Quick Connect - 0.250" termination. These parts maintain equivalent electrical performance (10A, 250VAC) and panel mount flange design. Selection of these alternatives requires confirmation that the female socket connector gender and larger quick connect termination (0.250" vs. 0.110") are compatible with the application's mating connector and circuit board layout. All three parts are functionally identical with varying inventory levels (1290, 1299, and 949 units respectively).

All substitute parts maintain active product status, ROHS3 compliance, and regulatory certifications suitable for commercial power inlet applications.

Frequently Asked Questions (FAQ)

Q: Can SCHURTER 6110.3100 directly replace the Qualtek 707-00/28?

A: Both parts share identical IEC 320-C16 male blade connector configuration, 10A current rating, 250VAC voltage rating, and panel mount flange design. The primary difference is termination: 6110.3100 uses Solder Eyelet while 707-00/28 uses Quick Connect - 0.110". Direct replacement requires verification that solder eyelet termination is compatible with your circuit board design.

Q: What is the difference between the SCHURTER 6182 series parts?

A: Parts 6182.0006, 6182.0007, and 6182.0008 are functionally identical IEC 320-2-2/F female socket receptacles with Quick Connect - 0.250" termination. They differ only in inventory availability (1290, 1299, and 949 units respectively). Selection among these three parts should be based on procurement quantity requirements and lead time considerations.

Q: Can I use a female socket connector (6182 series) in place of a male blade connector (707-00/28)?

A: No. The 6182 series uses IEC 320-2-2/F female socket configuration while the 707-00/28 uses IEC 320-C16 male blade configuration. These represent different connector genders and are not mechanically or electrically interchangeable. Connector gender selection must match the mating connector type in your application.

Q: What termination method should I select?

A: Termination selection depends on your circuit board design. Quick Connect - 0.110" (707-00/28) and Quick Connect - 0.250" (6182 series) accommodate different tab sizes. Solder Eyelet (6110.3100) requires direct soldering to circuit board pads. Verify your PCB layout and connector specifications before selection.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. The Qualtek 707-00/28 and all SCHURTER substitute parts (6110.3100, 6182.0006, 6182.0007, 6182.0008) are ROHS3 compliant and suitable for applications requiring RoHS compliance.

Q: What regulatory certifications apply to these parts?

A: The Qualtek 707-00/28 carries CSA, UL, and VDE certifications. SCHURTER 6110.3100 carries CCC, cULus, and ENEC certifications. SCHURTER 6182 series parts carry cCSAus, UL, and VDE certifications. Verify that the selected part's certification portfolio meets your application's regulatory requirements.
