Equivalent & Substitute Parts for LEDdynamics 7021-D-I-700 Constant Current LED Driver

Part Overview

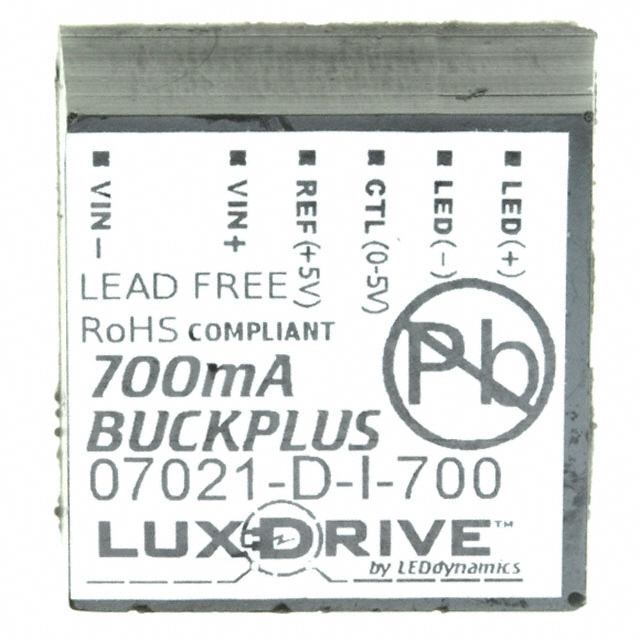

The LEDdynamics Inc. 7021-D-I-700 is a constant current LED driver utilizing buck topology. This model supports a maximum output current of 700mA and voltage up to 32V, accommodating a single output. Offered in a 7-SIP through-hole package, it features analog dimming, remote on/off capability, and short-circuit protection (SCP). The module operates over an input range of 7V to 32V with up to 95% efficiency and is suitable for use between -40°C and 80°C ambient conditions. With the product status marked as "Obsolete," engineers must identify suitable alternatives to maintain design continuity or support product repairs.

Substiute Parts

7021-D-I-700

LEDdynamics Inc.In Stock: 9077021-D-I-700 Datasheet

Current PartRFQ

3021-D-I-700

LEDdynamics Inc.In Stock: 11373021-D-I-700 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution is determined strictly based on matching the following parameters: constant current output (700mA), maximum output voltage (32V), buck topology, one output channel, analog dimming capability, remote on/off and SCP features, through-hole 7-SIP package, input voltage range (7V–32V), 95% efficiency, and mechanical dimensions within practical tolerance. Product status and compliance form the final filters for viable substitutes. The substitute part, LEDdynamics 3021-D-I-700, matches all these mandatory criteria.

Parameter Comparison

Engineering Selection Recommendations

Selection must be based on product status and available compliance information. The 7021-D-I-700 is obsolete, which necessitates substitution. The 3021-D-I-700 is active and matches all specified electrical and mechanical parameters. Both models share the same ECCN and HTSUS. The substitute part lists RoHS3 compliance, while RoHS information for the 7021-D-I-700 is not provided.

Frequently Asked Questions (FAQ)

Q1: Can the LEDdynamics 3021-D-I-700 be directly substituted for the 7021-D-I-700 in existing designs?
A1: Yes, based strictly on the provided electrical and mechanical parameters, the 3021-D-I-700 matches the functional requirements of the 7021-D-I-700.

Q2: Are the dimensions and mounting styles compatible between the two parts?
A2: Both use a through-hole 7-SIP module with very similar dimensions and are intended for direct mounting in compatible footprints.

Q3: Does the substitute part maintain feature parity, including analog dimming, remote on/off, and SCP functions?
A3: All listed features are present on both models as specified.

Q4: Is there any difference in compliance or product status that affects selection?
A4: The 7021-D-I-700 is obsolete, while the 3021-D-I-700 is active and RoHS3 compliant.

Q5: Does the difference in the number of leads within the 7-SIP module affect compatibility?
A5: Both devices are specified as 7-SIP modules, and compatibility should be confirmed by comparing the provided dimensions and package description.

Q6: Are operational temperature and efficiency parameters matched?
A6: Both models operate between -40°C and 80°C with 95% efficiency per the supplied data.
