LED YELLOW CLEAR 1208 SMD 7016X3 Equivalent & Substitute Parts

Part Overview

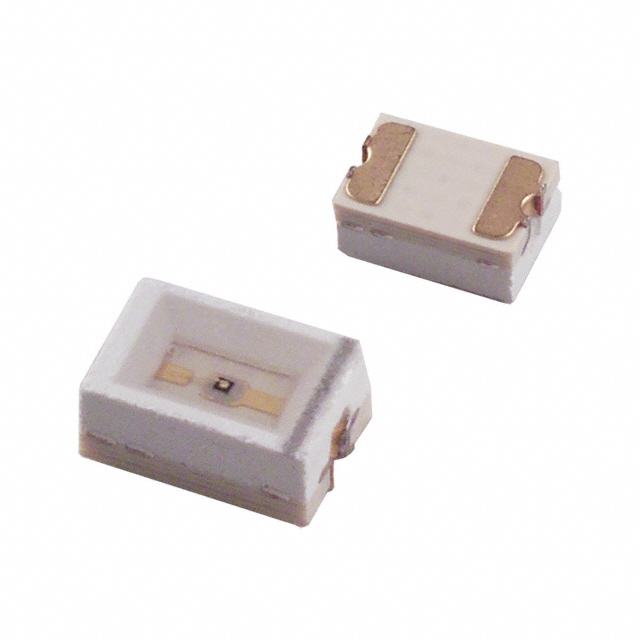

The 7016X3 is a yellow LED indication component in 1208 (3020 Metric) surface mount package manufactured by Visual Communications Company (VCC). This part operates at 2.1V forward voltage with a 20mA test current and delivers 6.3 millicandela brightness with a 110° viewing angle. The 7016X3 is classified as obsolete, making equivalent and substitute parts necessary for ongoing design support and procurement continuity. Substitute components must maintain compatibility across electrical characteristics, mechanical dimensions, and mounting requirements while meeting current product availability and compliance standards.

Substiute Parts

7016X3

Visual Communications Company - VCCIn Stock: 19647016X3 Datasheet

Current PartRFQ

LSM1208472V

Visual Communications Company - VCCIn Stock: 756LSM1208472V Datasheet

DirectRFQ

AA3020AYC

KingbrightIn Stock: 1020AA3020AYC Datasheet

SimilarRFQ

5973401507F

DialightIn Stock: 29185973401507F Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 7016X3 are classified into two categories based on substitution criteria:

Direct Manufacturer Equivalent (LSM1208472V): This VCC part maintains identical package geometry (1208/3020 Metric), forward voltage (2.1V), test current (20mA), and mounting type. The LSM1208472V is an active product with enhanced brightness (18mcd versus 6.3mcd) and improved viewing angle (120° versus 110°). Substitution is valid where the increased brightness and wider viewing angle do not create design conflicts. The part differs in wavelength specification (590nm dominant and peak versus 585nm peak for the original) and moisture sensitivity level (5A/24 Hours versus 2/1 Year).

Parametric Equivalent (5973401507F): This Dialight part provides identical electrical parameters (2.1V forward voltage, 20mA test current, 6.3mcd brightness, 110° viewing angle) and mechanical compatibility (1208 package, 3.00mm L x 2.00mm W, 1.50mm height). The 5973401507F is an active product suitable for direct functional replacement. Wavelength specifications are comparable (588nm dominant, 585nm peak versus 585nm peak for the original). Moisture sensitivity level differs (3/168 Hours versus 2/1 Year).

Similar Substitute (AA3020AYC): This Kingbright part shares electrical core parameters (2.1V forward voltage, 20mA test current, yellow color, clear lens) but operates in a different package format (2-SMD, J-Lead versus 1208). The AA3020AYC delivers 15mcd brightness with a 90° viewing angle. This part is suitable only where PCB layout and assembly equipment support the 2-SMD, J-Lead package configuration. Physical dimensions differ (2.70mm L x 2.00mm W, 1.65mm height versus 3.00mm L x 2.00mm W, 1.50mm height).

Parameter Comparison

Engineering Selection Recommendations

For Direct Package and Electrical Compatibility: The 5973401507F (Dialight) is the primary parametric equivalent. This part maintains identical brightness (6.3mcd), viewing angle (110°), package dimensions (1208, 3.00mm L x 2.00mm W, 1.50mm height), and electrical specifications (2.1V forward voltage, 20mA test current). The 5973401507F is an active product with ROHS3 compliance and REACH unaffected status, ensuring regulatory continuity. Moisture sensitivity level (3/168 Hours) is intermediate between the original specification and other alternatives.

For Enhanced Brightness Applications: The LSM1208472V (VCC) provides a direct manufacturer alternative with identical package geometry and electrical core parameters. This part delivers increased brightness (18mcd versus 6.3mcd) and wider viewing angle (120° versus 110°), suitable for applications requiring improved visibility. The LSM1208472V is an active VCC product maintaining ROHS3 compliance. Higher moisture sensitivity level (5A/24 Hours) requires verification against storage and assembly process conditions.

For Alternative Package Configurations: The AA3020AYC (Kingbright) is suitable only where PCB layout and assembly equipment support the 2-SMD, J-Lead package format. This part maintains electrical compatibility (2.1V forward voltage, 20mA test current) with moderate brightness (15mcd) and narrower viewing angle (90°). Physical dimensions differ from the 1208 package, requiring PCB redesign. The AA3020AYC is an active product with ROHS3 compliance and intermediate moisture sensitivity (4/72 Hours).

Frequently Asked Questions (FAQ)

Q: Can the LSM1208472V directly replace the 7016X3 in existing designs?

A: The LSM1208472V shares identical package geometry (1208/3020 Metric), forward voltage (2.1V), test current (20mA), and mounting type. Direct PCB-level substitution is mechanically and electrically compatible. However, the increased brightness (18mcd versus 6.3mcd) and wider viewing angle (120° versus 110°) may affect visual appearance in the application. Verify that enhanced brightness does not create glare or contrast issues in the intended use case.

Q: Is the 5973401507F a true equivalent to the 7016X3?

A: Yes. The 5973401507F provides parametric equivalence across all critical specifications: identical brightness (6.3mcd), viewing angle (110°), forward voltage (2.1V), test current (20mA), and package dimensions (1208, 3.00mm L x 2.00mm W, 1.50mm height). This Dialight part is an active product suitable for direct functional replacement without design modification.

Q: Why does the AA3020AYC have different package dimensions?

A: The AA3020AYC uses a 2-SMD, J-Lead package format (2.70mm L x 2.00mm W, 1.65mm height) instead of the 1208 package (3.00mm L x 2.00mm W, 1.50mm height). This package difference requires PCB footprint redesign and may require different assembly equipment. Substitution is valid only where the application design can accommodate the alternative package configuration.

Q: What is the impact of different moisture sensitivity levels?

A: Moisture sensitivity level (MSL) specifies the maximum time a component can be exposed to ambient conditions (typically 30°C, 60% relative humidity) after packaging before soldering. The 7016X3 specifies MSL 2 (1 Year), the LSM1208472V specifies MSL 5A (24 Hours), the 5973401507F specifies MSL 3 (168 Hours), and the AA3020AYC specifies MSL 4 (72 Hours). Higher MSL ratings require shorter storage windows and more controlled handling. Verify that substitute part MSL ratings align with your procurement, storage, and assembly process timelines.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. The 7016X3, LSM1208472V, 5973401507F, and AA3020AYC are all ROHS3 compliant and REACH unaffected. Regulatory compliance is maintained across all substitute options.

Q: Which substitute part should I select for a new design?

A: For new designs, the 5973401507F (Dialight) is recommended as the primary choice due to parametric equivalence, active product status, and balanced moisture sensitivity level. The LSM1208472V (VCC) is suitable where enhanced brightness is beneficial. The AA3020AYC (Kingbright) is appropriate only where the 2-SMD, J-Lead package is compatible with your PCB design and assembly capabilities.
