6LS102KNHCM Equivalent & Substitute Parts

Part Overview

The 6LS102KNHCM is a 1000 pF ceramic capacitor rated for 2000V (2kV) with Y5P temperature coefficient, manufactured by KYOCERA AVX in radial disc configuration. This part is classified as obsolete, making equivalent substitute parts necessary for ongoing design support and procurement. The substitute parts listed maintain identical electrical specifications while offering active product status and improved availability.

Key Parameters

Parameter	Value
Capacitance	1000 pF
Tolerance	±10%
Voltage Rating	2000V (2kV)
Temperature Coefficient	Y5P (B)
Operating Temperature Range	-40°C ~ 125°C (main part); -30°C ~ 125°C (substitutes)
Mounting Type	Through Hole
Package Type	Radial, Disc
Lead Style	Formed Leads

Substitute Part Grouping Explanation

Substitution eligibility for the 6LS102KNHCM is determined by the following mandatory parameters:

Capacitance value: 1000 pF (exact match required)
Tolerance: ±10% (exact match required)
Voltage rating: 2000V (2kV) minimum (exact match required)
Temperature coefficient: Y5P (B) (exact match required)
Mounting type: Through Hole (exact match required)
Package configuration: Radial, Disc (exact match required)

All three substitute parts meet these core electrical and mechanical requirements. Variations in physical dimensions (body diameter, height, lead spacing) and lead configuration (kinked vs. standard formed leads) are permitted within the radial disc package category and do not affect functional substitution. The substitute parts are manufactured by Vishay Beyschlag/Draloric/BC Components and maintain active product status with RoHS3 compliance.

Parameter Comparison

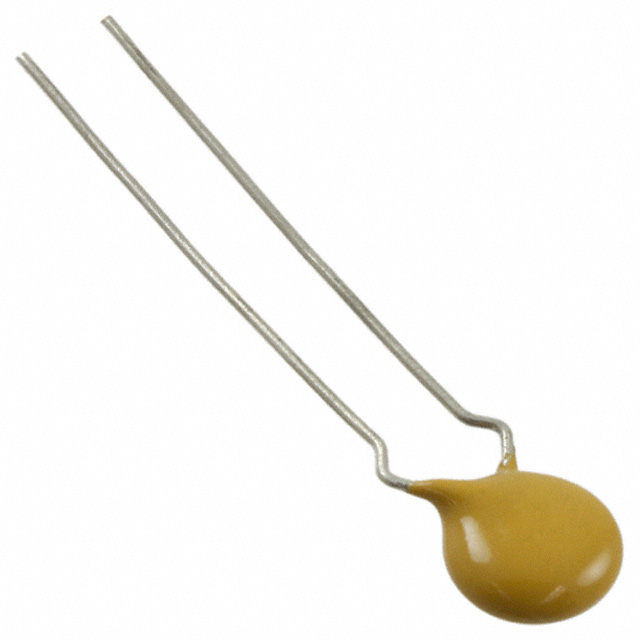

Parameter	6LS102KNHCM (Main)	S102K33Y5PP63K5R	S102K33Y5PP63L6R	S102K33Y5PP6UK5R
Manufacturer	KYOCERA AVX	Vishay Beyschlag/Draloric/BC Components	Vishay Beyschlag/Draloric/BC Components	Vishay Beyschlag/Draloric/BC Components
Capacitance	1000 pF	1000 pF	1000 pF	1000 pF
Tolerance	±10%	±10%	±10%	±10%
Voltage Rating	2000V (2kV)	2000V (2kV)	2000V (2kV)	2000V (2kV)
Temperature Coefficient	Y5P (B)	Y5P (B)	Y5P (B)	Y5P (B)
Operating Temperature	-40°C ~ 125°C	-30°C ~ 125°C	-30°C ~ 125°C	-30°C ~ 125°C
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Package Type	Radial, Disc	Radial, Disc	Radial, Disc	Radial, Disc
Body Diameter	0.433" (11.00mm)	0.335" (8.50mm)	0.335" (8.50mm)	0.335" (8.50mm)
Height (Seated Max)	0.197" (5.00mm)	0.492" (12.50mm)	0.492" (12.50mm)	0.492" (12.50mm)
Lead Spacing	0.197" (5.00mm)	0.197" (5.00mm)	0.252" (6.40mm)	0.197" (5.00mm)
Lead Style	Formed Leads	Formed Leads - Kinked	Formed Leads - Kinked	Formed Leads - Kinked
Product Status	Obsolete	Active	Active	Active
RoHS Status	Not specified	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Packaging	Not specified	Bulk	Bulk	Tape & Box (TB)

Engineering Selection Recommendations

All three substitute parts are functionally equivalent to the 6LS102KNHCM based on electrical parameters. Selection among substitutes should be based on the following criteria:

S102K33Y5PP63K5R is recommended for applications requiring 0.197" (5.00mm) lead spacing with standard kinked formed leads and bulk packaging. This part offers the highest inventory availability (70,486 pcs).

S102K33Y5PP63L6R is suitable for designs accommodating 0.252" (6.40mm) lead spacing with kinked formed leads and bulk packaging. This configuration may require PCB layout modification compared to the original part.

S102K33Y5PP6UK5R is appropriate for applications requiring 0.197" (5.00mm) lead spacing with kinked formed leads and tape & box packaging for automated assembly processes.

All substitute parts maintain ROHS3 compliance and active product status, ensuring long-term availability and regulatory compliance. The operating temperature range of -30°C ~ 125°C for substitutes is narrower than the original part's -40°C ~ 125°C range; designs operating below -30°C require confirmation of compatibility.

Frequently Asked Questions (FAQ)

Q: Can S102K33Y5PP63K5R, S102K33Y5PP63L6R, and S102K33Y5PP6UK5R be used interchangeably with 6LS102KNHCM?

A: Yes, all three parts are electrically equivalent. They share identical capacitance (1000 pF), tolerance (±10%), voltage rating (2000V), and temperature coefficient (Y5P). Physical differences in body diameter, height, and lead spacing may require PCB layout verification. Lead spacing differences between S102K33Y5PP63L6R (0.252") and the other two parts (0.197") are the primary mechanical consideration.

Q: What is the significance of the lead spacing difference in S102K33Y5PP63L6R?

A: S102K33Y5PP63L6R features 0.252" (6.40mm) lead spacing compared to 0.197" (5.00mm) in the other substitutes and the original part. This requires PCB footprint modification and is not a direct drop-in replacement without layout changes.

Q: Are the substitute parts RoHS compliant?

A: Yes, all three substitute parts are ROHS3 compliant. The original 6LS102KNHCM RoHS status was not specified in available documentation.

Q: What is the difference between bulk and tape & box packaging?

A: Bulk packaging (S102K33Y5PP63K5R and S102K33Y5PP63L6R) is suitable for manual assembly and general procurement. Tape & Box packaging (S102K33Y5PP6UK5R) is designed for automated pick-and-place assembly equipment and reel-based component handling.

Q: Does the operating temperature range difference affect substitution?

A: The substitute parts operate from -30°C ~ 125°C compared to the original part's -40°C ~ 125°C. Applications requiring operation below -30°C should not use these substitutes without additional thermal analysis.

Q: What is the impact of kinked formed leads on the substitute parts?

A: Kinked formed leads on the substitute parts provide improved mechanical stability during insertion into PCB holes compared to standard formed leads. This is a design improvement and does not affect electrical performance or compatibility.
