6EP1 LINE FILTER 250VAC 6A CHASSIS

Part Overview

The 6EP1 is a single-phase EMC/EMI line filter manufactured by TE Connectivity Corcom Filters, rated for 250VAC at 6A with 50/60Hz operation. This chassis-mounted filter features a two-stage configuration with quick connect termination and is designed for general-purpose applications requiring electromagnetic compatibility filtering.

The 6EP1 is classified as obsolete. Equivalent and substitute parts are necessary to maintain system functionality and ensure continued availability for applications currently utilizing this component. Substitute parts must maintain electrical compatibility across voltage, current, frequency, and mechanical mounting specifications.

Substiute Parts

6EP1

TE Connectivity Corcom FiltersIn Stock: 8226EP1 Datasheet

Current PartRFQ

2-6609037-4

TE Connectivity Corcom FiltersIn Stock: 8472-6609037-4 Datasheet

MFR RecommendedRFQ

AMI-M12B-1-6-B

Altran Magnetics, LLCIn Stock: 847AMI-M12B-1-6-B Datasheet

SimilarRFQ

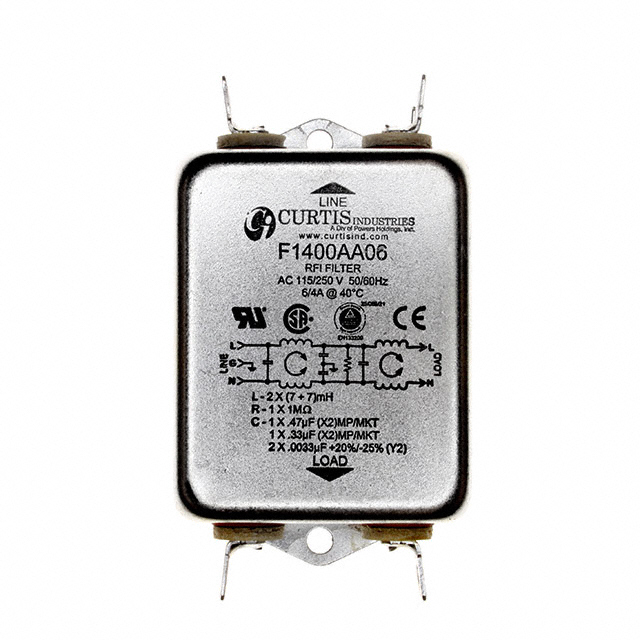

F1400AA06

Curtis IndustriesIn Stock: 922F1400AA06 Datasheet

SimilarRFQ

FN2070-6-06

Schaffner EMC Inc.In Stock: 1308FN2070-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 6EP1 is determined by the following critical parameters:

Mandatory Matching Parameters:

• Voltage - Rated AC: 250V
• Current: 6 A (minimum)
• Filter Type: Single Phase
• Configuration: Two Stage
• Mounting Type: Chassis Mount
• Termination Style: Quick Connect
• Frequency - Operating: 50/60Hz compatible

Acceptable Variation Parameters:

• Current rating may exceed 6A (higher current capacity provides operational margin)
• Operating temperature range may exceed the specified -10°C ~ 40°C
• Frequency operating range may exceed 50/60Hz (e.g., DC ~ 400Hz)
• Voltage rating may include additional voltage options (e.g., 110V/250VAC)

Substitute parts must maintain single-phase EMC/EMI filtering functionality with two-stage configuration and quick connect termination to ensure direct replacement capability in existing chassis-mounted applications.

Parameter Comparison

Engineering Selection Recommendations

Primary Substitute: 2-6609037-4

The 2-6609037-4 manufactured by TE Connectivity Corcom Filters is the manufacturer-recommended substitute. This part maintains identical voltage (250V), frequency (50/60Hz), mounting (chassis), and termination (quick connect) specifications. The current rating of 7A exceeds the 6A requirement, providing operational margin. Both parts share the same series designation (EP), approval agencies (CSA, UR, VDE), and RoHS3 compliance status. Active product status ensures continued availability and support.

Secondary Substitutes: AMI-M12B-1-6-B and F1400AA06

Both AMI-M12B-1-6-B (Altran Magnetics) and F1400AA06 (Curtis Industries) provide exact electrical equivalence with 250V, 6A, 50/60Hz, two-stage single-phase configuration, and quick connect termination. Both are active products with ROHS3 compliance. F1400AA06 includes additional approval certifications (CE, CSA, TUV, UR). These parts are suitable for direct replacement in applications where manufacturer source flexibility is acceptable.

Extended Compatibility: FN2070-6-06

The FN2070-6-06 manufactured by Schaffner EMC Inc. provides electrical compatibility with extended operational parameters. This part supports dual voltage operation (110V/250VAC) and extended frequency range (DC ~ 400Hz), enabling use in applications with broader operating requirements. Operating temperature range extends to -25°C ~ 100°C. This part is suitable for replacement in applications requiring enhanced environmental or frequency performance specifications.

Frequently Asked Questions (FAQ)

Q: Can the 2-6609037-4 (7A) be used as a direct replacement for the 6EP1 (6A)?

A: Yes. The 2-6609037-4 maintains all critical electrical and mechanical parameters: 250VAC, 50/60Hz operation, single-phase two-stage configuration, chassis mount, and quick connect termination. The higher current rating (7A vs. 6A) does not prevent substitution and provides additional operational margin.

Q: What is the difference between the AMI-M12B-1-6-B and F1400AA06 substitutes?

A: Both parts provide identical electrical specifications (250V, 6A, 50/60Hz, two-stage single-phase). The primary difference is manufacturer source and approval certifications. F1400AA06 includes CE, CSA, TUV, and UR certifications, while AMI-M12B-1-6-B does not specify approval agencies. Selection depends on application certification requirements.

Q: Why does the FN2070-6-06 support 110V and 250VAC?

A: The FN2070-6-06 is designed for multi-voltage applications. It operates at both 110V and 250VAC, providing flexibility for systems with variable input voltage requirements. For applications requiring only 250VAC operation, this extended capability does not affect compatibility.

Q: Are all substitute parts ROHS3 compliant?

A: Yes. All substitute parts listed (2-6609037-4, AMI-M12B-1-6-B, F1400AA06, and FN2070-6-06) are ROHS3 compliant, matching the compliance status of the original 6EP1.

Q: What packaging options are available for these substitutes?

A: Packaging varies by part: 2-6609037-4 is supplied in Bulk packaging, AMI-M12B-1-6-B in Box, F1400AA06 in Box, and FN2070-6-06 in Tray. Packaging selection does not affect electrical or mechanical compatibility; selection depends on inventory and handling requirements.

Q: Can the FN2070-6-06 be used in applications with operating temperatures below -10°C?

A: Yes. The FN2070-6-06 operates from -25°C ~ 100°C, extending the lower temperature limit by 15°C compared to the 6EP1 specification of -10°C ~ 40°C. This part is suitable for applications requiring enhanced low-temperature performance.

Q: Are all substitutes available in active product status?

A: Yes. All four substitute parts (2-6609037-4, AMI-M12B-1-6-B, F1400AA06, and FN2070-6-06) are classified as active products, ensuring continued manufacturing and availability.
