TE Connectivity Corcom Filters 6EDK3 LINE FILTER 250VAC 6A CHASSIS

Part Overview

The 6EDK3 is a single-phase EMC/EMI line filter rated for 250VAC at 6A, designed for general-purpose applications operating at 50/60Hz. This chassis-mounted filter features wire lead termination and is classified as obsolete. Due to its obsolete status, equivalent and substitute parts are necessary to maintain system functionality and ensure continued availability for replacement and new designs.

Substiute Parts

6EDK3

TE Connectivity Corcom FiltersIn Stock: 10136EDK3 Datasheet

Current PartRFQ

1-1609034-1

TE Connectivity Corcom FiltersIn Stock: 11621-1609034-1 Datasheet

MFR RecommendedRFQ

AMI-M11D-3-6-B-2

Altran Magnetics, LLCIn Stock: 984AMI-M11D-3-6-B-2 Datasheet

SimilarRFQ

FN2020-6-07

Schaffner EMC Inc.In Stock: 965FN2020-6-07 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the 6EDK3 is determined by the following critical parameters that must align with the original specification:

Core Electrical Parameters:

• Voltage rating: 250VAC minimum
• Current rating: 6A minimum
• Filter type: Single Phase
• Configuration: Single Stage
• Operating frequency: 50/60Hz compatibility

Mechanical Parameters:

• Mounting type: Chassis Mount
• Applications: General Purpose

Compliance Parameters:

• RoHS3 Compliance required
• Regulatory approvals: CSA, UR, VDE preferred

Substitute parts are grouped into two categories: MFR Recommended (direct replacement with enhanced specifications) and Similar (functionally equivalent with alternative termination or inductance characteristics).

Parameter Comparison

Engineering Selection Recommendations

1-1609034-1 (MFR Recommended Substitute)

The 1-1609034-1 is the manufacturer-recommended replacement for the 6EDK3. Both parts are manufactured by TE Connectivity Corcom Filters and maintain identical electrical ratings (250VAC, 6A, 50/60Hz). The substitute features enhanced DC voltage rating (250VDC/VAC), higher inductance (1mH vs. 516µH), and quick-connect termination. All regulatory approvals (CSA, UR, VDE) are maintained. This part is currently in active production status with higher inventory availability (1082 pcs vs. 938 pcs).

AMI-M11D-3-6-B-2 (Similar Substitute)

The AMI-M11D-3-6-B-2 from Altran Magnetics, LLC provides functional equivalence with identical electrical specifications (250VAC, 6A, 50/60Hz) and matching inductance (516µH). Wire lead termination matches the original 6EDK3. This part is active and in stock (950 pcs). Regulatory approval information is not specified for this substitute.

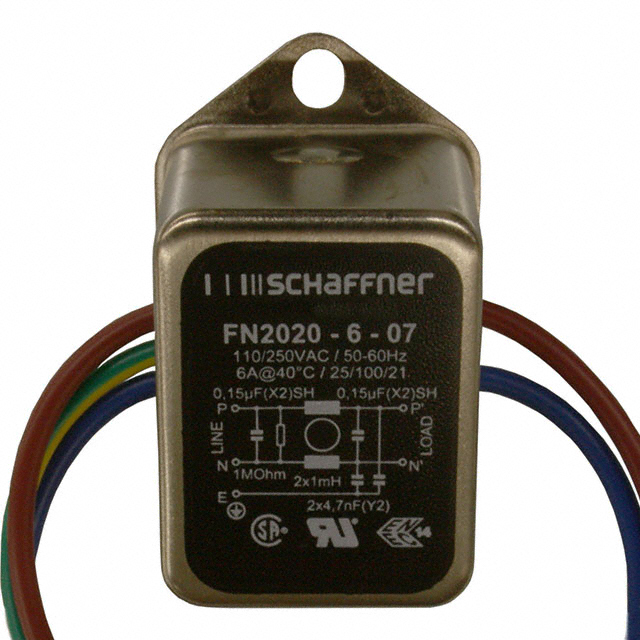

FN2020-6-07 (Similar Substitute)

The FN2020-6-07 from Schaffner EMC Inc. meets all core electrical requirements (250VAC, 6A) with extended frequency range (DC ~ 400Hz) and wider operating temperature range (-25°C ~ 100°C). Wire lead termination is compatible with the original design. Regulatory approvals include CSA, ENEC, and UR. Inductance is rated at 1mH. This part is active with 910 pcs in stock.

Frequently Asked Questions (FAQ)

Q: Can the 1-1609034-1 be used as a direct replacement for the 6EDK3?

A: Yes. The 1-1609034-1 is the manufacturer-recommended substitute. Both parts share identical AC voltage (250V), current (6A), frequency (50/60Hz), and regulatory approvals (CSA, UR, VDE). The primary difference is termination style: the substitute uses quick-connect terminals instead of wire leads. Installation method must be adapted accordingly.

Q: What is the difference between the MFR Recommended and Similar substitutes?

A: The 1-1609034-1 is designated MFR Recommended because it is manufactured by TE Connectivity Corcom Filters, the original manufacturer, and carries identical regulatory certifications. The AMI-M11D-3-6-B-2 and FN2020-6-07 are Similar substitutes from alternative manufacturers that meet the same electrical specifications but may have different inductance values, frequency ranges, or termination styles.

Q: Does the inductance difference between 516µH and 1mH affect compatibility?

A: Inductance is a specified parameter that affects filter performance characteristics. The 6EDK3 and AMI-M11D-3-6-B-2 both specify 516µH, while the 1-1609034-1 and FN2020-6-07 specify 1mH. Selection should be based on the system's EMI/EMI filtering requirements. Both values are within the single-stage filter category for this voltage and current rating.

Q: Are all substitute parts RoHS3 compliant?

A: Yes. All three substitute parts (1-1609034-1, AMI-M11D-3-6-B-2, and FN2020-6-07) are ROHS3 compliant, matching the original 6EDK3 specification.

Q: What is the impact of termination style differences?

A: The 6EDK3 and two similar substitutes (AMI-M11D-3-6-B-2 and FN2020-6-07) use wire leads. The MFR Recommended substitute (1-1609034-1) uses quick-connect termination. Wire lead connections require soldering or crimping, while quick-connect terminals use push-on or screw-down connections. Installation method must be selected based on the application's connection infrastructure.

Q: Which substitute offers the widest operating temperature range?

A: The FN2020-6-07 operates across -25°C ~ 100°C, compared to -10°C ~ 40°C for the original 6EDK3 and other substitutes. This extended range is suitable for applications requiring operation in extreme temperature environments.

Q: Can the FN2020-6-07 be used in applications requiring only 50/60Hz operation?

A: Yes. The FN2020-6-07 is rated for DC ~ 400Hz operation, which encompasses the 50/60Hz requirement. The extended frequency range does not restrict its use in standard 50/60Hz applications.
