Part Overview

The TE Connectivity Corcom Filters 6EC2 is an AC power entry connector receptacle designed for IEC 320-C14 panel mount applications. This filtered power entry connector integrates EMI and RFI filtering for commercial applications with a 6A current rating at 120/250VAC. The component features quick connect termination and is approved by CSA, UL, and VDE standards. As an active product with 911 units in stock, the 6EC2 serves as the primary reference for identifying functionally equivalent alternatives in the AC power connector category.

Substiute Parts

6EC2

TE Connectivity Corcom FiltersIn Stock: 10186EC2 Datasheet

Current PartRFQ

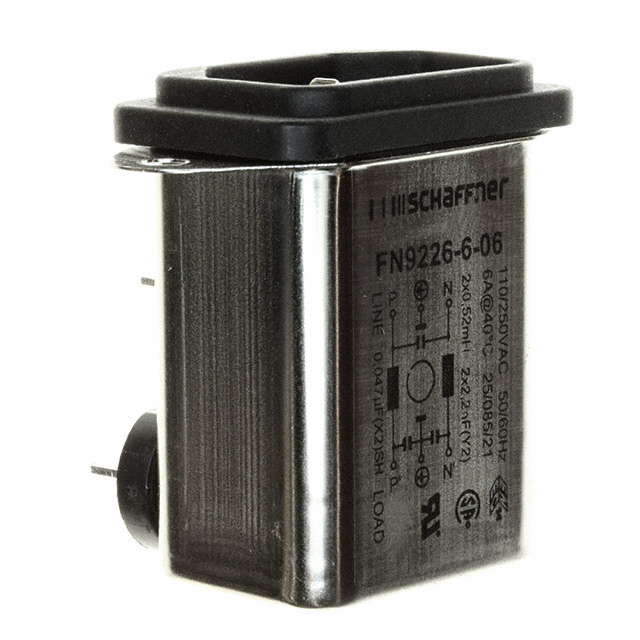

FN9226-6-06

Schaffner EMC Inc.In Stock: 1297FN9226-6-06 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the 6EC2 is determined by strict alignment with the following critical parameters:

Mandatory Matching Parameters:

• Connector Style: IEC 320-C14
• Connector Type: Receptacle, Male Blades
• Number of Positions: 3
• Filter Type: Filtered (EMI, RFI) - Commercial
• Current Rating - Filter: 6A
• Mounting Type: Panel Mount, Flange, Right Angle
• Termination: Quick Connect - 0.250" (6.3mm)
• Accommodates a Fuse: No

Compliance Parameters:

• RoHS3 Compliance required
• Active product status required

The Schaffner EMC Inc. FN9226-6-06 meets all mandatory matching parameters and compliance requirements, establishing it as a direct substitute for the 6EC2 in applications requiring IEC 320-C14 filtered power entry connectors with 6A filtering capacity and quick connect termination.

Parameter Comparison

Engineering Selection Recommendations

The Schaffner EMC Inc. FN9226-6-06 qualifies as a direct functional substitute for the TE Connectivity Corcom Filters 6EC2 based on complete alignment of electrical and mechanical specifications. Both components are active products with ROHS3 compliance and carry overlapping regulatory approvals including CSA and UL certification.

Selection Criteria:

The FN9226-6-06 maintains identical performance characteristics across all critical parameters: IEC 320-C14 connector style, 6A filtered current rating, 3-position configuration, and quick connect 0.250" termination. Both components provide commercial-grade EMI/RFI filtering without fuse accommodation.

Regulatory Compliance:

Both parts satisfy ROHS3 requirements and carry CSA and UL approvals. The FN9226-6-06 includes additional certifications (ENEC, SEMKO) and specifies IP40 ingress protection and UL94 V-2 material flammability rating, providing enhanced environmental specification documentation.

Physical Integration Considerations:

Panel cutout dimensions differ between the two components. The 6EC2 requires a 30.48mm x 22.86mm rectangular cutout, while the FN9226-6-06 requires a 34.40mm x 22.60mm rectangular cutout. Existing panel designs must accommodate the FN9226-6-06's larger horizontal dimension if substitution is implemented.

Inventory and Packaging:

The FN9226-6-06 is available in tray packaging with 1229 units in stock, compared to the 6EC2 in bulk packaging with 911 units available. Packaging format selection depends on assembly and procurement workflow requirements.

Frequently Asked Questions (FAQ)

Q: Can the Schaffner FN9226-6-06 directly replace the TE Connectivity 6EC2 in existing designs?

A: The FN9226-6-06 is electrically and mechanically equivalent to the 6EC2 across all functional parameters. However, panel cutout dimensions differ (30.48mm x 22.86mm for 6EC2 versus 34.40mm x 22.60mm for FN9226-6-06). Existing panel designs require modification to accommodate the FN9226-6-06's larger horizontal dimension.

Q: Are both components rated for the same current and voltage specifications?

A: Both components are rated for 6A filtered current and 120/250VAC operation. The 6EC2 explicitly specifies 6A appliance inlet current rating, while the FN9226-6-06 specifies 6A filter current rating. Both deliver equivalent performance in commercial filtered power entry applications.

Q: What are the regulatory approval differences between these components?

A: Both components carry CSA and UL approvals. The 6EC2 includes VDE certification, while the FN9226-6-06 includes ENEC and SEMKO certifications. Both satisfy ROHS3 compliance requirements. Selection depends on specific regional regulatory requirements for the end application.

Q: Do both components use the same termination method?

A: Yes. Both the 6EC2 and FN9226-6-06 use quick connect termination with 0.250" (6.3mm) blade spacing, ensuring compatibility with standard quick connect receptacles and wiring harnesses.

Q: What is the difference in packaging between these two parts?

A: The 6EC2 is supplied in bulk packaging, while the FN9226-6-06 is supplied in tray packaging. Packaging selection affects handling, storage, and assembly line integration but does not impact electrical or mechanical performance.

Q: Are both components suitable for EMI/RFI filtering in commercial applications?

A: Yes. Both components are specified as filtered (EMI, RFI) - Commercial grade connectors. Both provide equivalent filtering performance for commercial power entry applications requiring electromagnetic interference and radio frequency interference suppression.

Q: What is the ingress protection rating for each component?

A: The 6EC2 does not specify an ingress protection rating in the provided documentation. The FN9226-6-06 specifies IP40 ingress protection, indicating protection against solid objects larger than 1mm and water spray from any direction.
