Equivalent & Substitute Parts for Amphenol ICC 69830-006

Part Overview

The Amphenol ICC 69830-006 is a 6-position ribbon cable DIP header connector with IDC termination for 26-28 AWG wire. This connector features a through-hole mounting configuration with 0.050" cable pitch and 0.100" board-side pitch, designed for applications requiring feed-through connectivity in a dual-row arrangement.

The 69830-006 carries an obsolete product status. Identifying equivalent and substitute parts is necessary to ensure design continuity, maintain supply chain reliability, and support ongoing production or maintenance requirements for systems utilizing this connector type.

Key Parameters

Parameter	Value
Connector Type	Ribbon Cable, DIP Header
Number of Positions	6
Cable Pitch	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Through Hole
Cable Termination	IDC
Wire Gauge	26-28 AWG, Stranded or Solid
Features	Feed Through
Color	Blue
Number of Positions Loaded	All

Substitute Part Grouping Explanation

Substitution eligibility for the 69830-006 is determined by strict equivalence across the following critical parameters:

Connector type (Ribbon Cable, DIP Header)
Number of positions (6)
Cable pitch (0.050" / 1.27mm)
Board-side pitch (0.100" / 2.54mm)
Number of rows (2) and row spacing (0.100" / 2.54mm)
Mounting type (Through Hole)
Cable termination method (IDC)
Wire gauge compatibility (26-28 AWG, Stranded or Solid)
Feed-through feature requirement
Color specification (Blue)

Two substitute parts meet these criteria: the Amphenol ICC 69830-006LF and the TE Connectivity 1658525-4. Both maintain identical mechanical and electrical specifications while offering improved product status and compliance characteristics.

Parameter Comparison

Parameter	69830-006 (Main)	69830-006LF (Substitute)	1658525-4 (Substitute)
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity AMP Connectors
Connector Type	Ribbon Cable, DIP Header	Ribbon Cable, DIP Header	Ribbon Cable, DIP Header
Number of Positions	6	6	6
Cable Pitch	0.050" (1.27mm)	0.050" (1.27mm)	0.050" (1.27mm)
Board-Side Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole	Through Hole
Cable Termination	IDC	IDC	IDC
Wire Gauge	26-28 AWG, Stranded or Solid	26-28 AWG, Stranded or Solid	26-28 AWG, Stranded or Solid
Features	Feed Through	Feed Through	Feed Through
Color	Blue	Blue	Blue
Number of Positions Loaded	All	All	All
Contact Finish	Tin-Lead	Tin	Tin
Contact Finish Thickness	150.0µin (3.81µm)	150.0µin (3.81µm)	100.0µin (2.54µm)
Product Status	Obsolete	Active	Active
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

The 69830-006 is classified as obsolete, necessitating transition to an active equivalent for new designs and ongoing supply requirements.

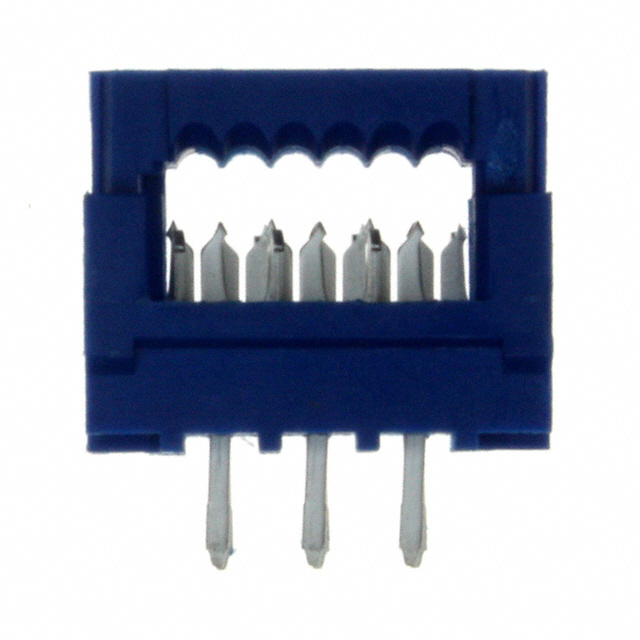

The Amphenol ICC 69830-006LF is a direct manufacturer equivalent offering identical mechanical and electrical specifications. This part maintains the same base product number (69830) and is available from the original manufacturer. The 69830-006LF achieves RoHS compliance and carries active product status, making it the preferred direct replacement. Inventory availability is significantly higher (3,477 units) compared to the original part.

The TE Connectivity 1658525-4 provides an alternative from a different manufacturer within the same connector category. This part maintains all critical mechanical and electrical parameters and carries active product status with RoHS compliance. The contact finish thickness is reduced to 100.0µin (2.54µm) compared to 150.0µin on the original part, which remains within acceptable engineering tolerances for this connector class.

Frequently Asked Questions (FAQ)

Q: Can the 69830-006LF be used as a direct replacement for the 69830-006?

A: Yes. The 69830-006LF maintains identical specifications across all critical parameters: connector type, position count, pitch dimensions, mounting configuration, cable termination method, and wire gauge compatibility. The primary differences are improved product status (active vs. obsolete) and RoHS compliance.

Q: What is the difference between the Amphenol ICC 69830-006LF and the TE Connectivity 1658525-4?

A: Both parts are mechanically and electrically equivalent across all critical parameters. The primary differences are manufacturer origin and contact finish thickness (150.0µin for Amphenol ICC versus 100.0µin for TE Connectivity). Both achieve RoHS compliance and carry active product status.

Q: Are there packaging differences between these parts?

A: Yes. The 69830-006LF is supplied in tube packaging, while the 1658525-4 is supplied in bulk packaging. Packaging selection should be based on assembly process requirements and inventory management practices.

Q: Does the reduced contact finish thickness on the 1658525-4 affect compatibility?

A: No. The contact finish thickness of 100.0µin (2.54µm) on the 1658525-4 remains within acceptable engineering tolerances for this connector class and does not affect electrical or mechanical compatibility with the original specification.

Q: What is the MSL rating for these connectors?

A: All three parts carry MSL 1 (Unlimited), indicating no moisture sensitivity restrictions for storage, handling, or assembly processes.
