TE Connectivity AMP Connectors 696372-1 Equivalent & Substitute Parts

Part Overview

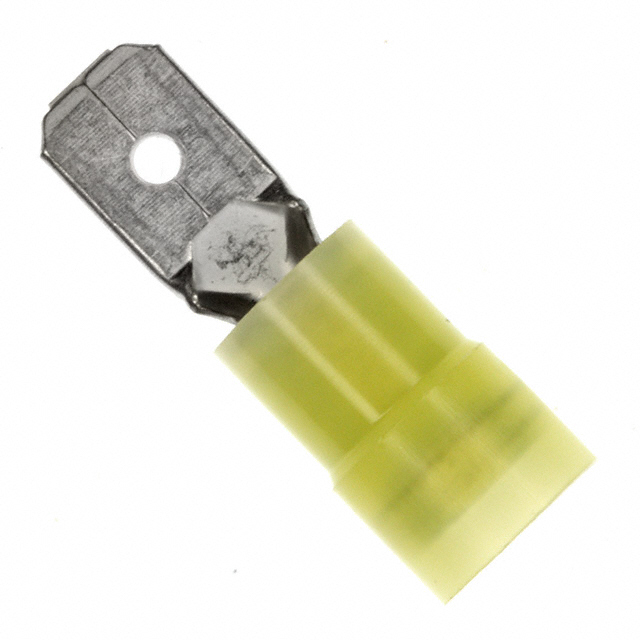

The TE Connectivity AMP Connectors 696372-1 is a 0.250" (6.35mm) Quick Connect Male crimp connector designed for 10-12 AWG wire gauges. This terminal features non-mating end insulation and is part of the Faston and PIDG series. The component is classified as obsolete, necessitating identification of active equivalent parts for ongoing procurement and system maintenance. Substitute parts must maintain electrical and mechanical compatibility while meeting current availability and compliance requirements.

Substiute Parts

696372-1

TE Connectivity AMP ConnectorsIn Stock: 1160696372-1 Datasheet

Current PartRFQ

141085-2

TE Connectivity AMP ConnectorsIn Stock: 5439141085-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 696372-1 is based on alignment of critical electrical and mechanical parameters that ensure functional compatibility within Quick Connect terminal applications. The substitute part 141085-2 qualifies as an equivalent based on the following criteria:

Critical Matching Parameters:

• Tab width: 0.250" (6.35mm) — identical across both parts
• Tab thickness: 0.032" (0.81mm) — identical across both parts
• Termination method: Crimp — identical across both parts
• Gender: Male — identical across both parts
• Insulation configuration: Non-Mating End Insulated — identical across both parts
• Contact material: Brass — identical across both parts
• Contact finish: Tin — identical across both parts
• Mounting type: Free Hanging (In-Line) — identical across both parts

Wire Gauge Compatibility: The 696372-1 accommodates 10-12 AWG wire, while the 141085-2 accommodates 10-11.5 AWG wire. The substitute part covers the lower end of the original specification range, providing compatibility for 10 AWG and 11 AWG applications. Applications requiring 12 AWG termination require evaluation of alternative substitutes.

Parameter Comparison

Engineering Selection Recommendations

The 141085-2 serves as an active equivalent for the obsolete 696372-1 in applications utilizing 10 AWG and 11 AWG wire gauges. The substitute part maintains identical tab dimensions, termination method, insulation configuration, and contact specifications. The 141085-2 is RoHS Compliant, providing regulatory advantage over the original part. Both components share identical MSL ratings and export classification codes.

For applications specifically requiring 12 AWG termination capability, the 141085-2 does not provide full backward compatibility. In such cases, alternative substitute parts must be evaluated to ensure wire gauge coverage.

The substitute part includes serrated termination features not specified in the original part documentation. This feature enhances mechanical retention during the crimp process and does not compromise compatibility with standard Quick Connect receptacles.

Frequently Asked Questions (FAQ)

Q: Can the 141085-2 directly replace the 696372-1 in all applications?

A: The 141085-2 provides direct replacement for applications using 10 AWG and 11 AWG wire gauges. Applications requiring 12 AWG termination require alternative substitutes, as the 141085-2 specification limits wire gauge to 10-11.5 AWG.

Q: What are the key compatibility factors between these parts?

A: Compatibility is determined by tab width (0.250"), tab thickness (0.032"), termination method (crimp), gender (male), insulation type (non-mating end insulated), contact material (brass), and contact finish (tin). Both parts meet these criteria identically.

Q: Does the serrated termination feature on the 141085-2 affect compatibility?

A: The serrated termination feature is an enhancement that improves mechanical retention during crimping. This feature does not affect compatibility with standard Quick Connect receptacles designed for 0.250" tab width terminals.

Q: What is the significance of the RoHS Compliance difference?

A: The 141085-2 is RoHS Compliant, while the 696372-1 is marked as "Not applicable." For applications subject to RoHS regulations, the 141085-2 provides compliance assurance. The original part's status reflects its obsolete classification prior to widespread RoHS implementation.

Q: Are there packaging differences between these parts?

A: The 696372-1 packaging is unspecified in available documentation. The 141085-2 is supplied in bulk packaging. Packaging configuration does not affect electrical or mechanical compatibility.

Q: What is the wire gauge overlap between these parts?

A: Both parts accommodate 10 AWG and 11 AWG wire gauges. The 696372-1 extends coverage to 12 AWG, while the 141085-2 specification terminates at 11.5 AWG. The overlap range (10-11 AWG) represents the fully compatible substitution window.
