TE Connectivity AMP Connectors 696303-2 Equivalent & Substitute Parts

Part Overview

The TE Connectivity AMP Connectors 696303-2 is a 0.250" (6.35mm) Quick Connect Female Crimp Connector rated for 10-12 AWG wire gauges with non-mating end insulation. This terminal is part of the Faston and PIDG series and is designed for free-hanging, in-line applications. The part is currently classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing procurement and system maintenance.

Substiute Parts

696303-2

TE Connectivity AMP ConnectorsIn Stock: 1140696303-2 Datasheet

Current PartRFQ

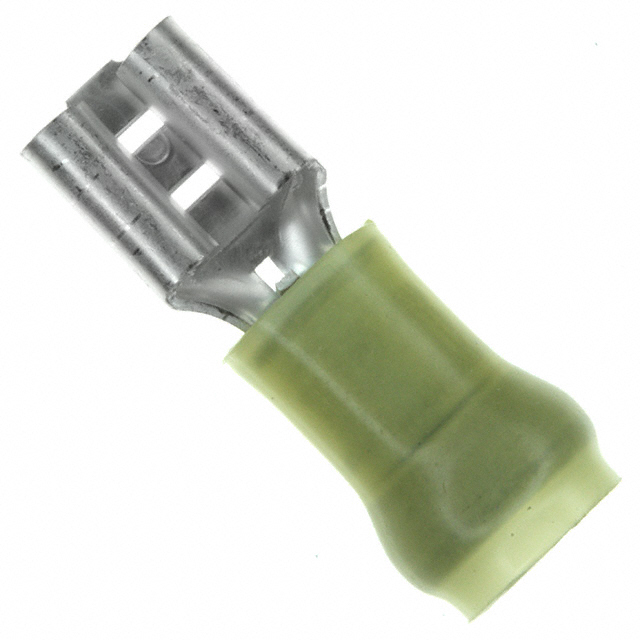

640907-2

TE Connectivity AMP ConnectorsIn Stock: 20970640907-2 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The substitute part TE Connectivity AMP Connectors 640907-2 is functionally equivalent to the 696303-2 based on the following critical parameters that determine substitution compatibility:

Matching Parameters:

• Tab Width: 0.250" (6.35mm)
• Tab Thickness: 0.032" (0.81mm)
• Wire Gauge: 10-12 AWG
• Gender: Female
• Termination: Crimp
• Insulation: Non-Mating End Insulated
• Contact Material: Brass
• Contact Finish: Tin
• Series: Faston, PIDG
• Mounting Type: Free Hanging (In-Line)

These parameters define the electrical and mechanical interface requirements for quick connect receptacle applications. The 640907-2 maintains dimensional and electrical compatibility with the 696303-2 across all critical connection interfaces.

Parameter Comparison

Engineering Selection Recommendations

The 640907-2 is the direct substitute for the obsolete 696303-2. Both parts share identical electrical and mechanical specifications across all critical interface parameters. The 640907-2 offers the following advantages for new designs and ongoing procurement:

Product Status: The 640907-2 maintains active product status, ensuring continued availability and manufacturer support, whereas the 696303-2 is obsolete.

Regulatory Compliance: The 640907-2 is ROHS3 compliant, meeting current environmental and regulatory requirements. The 696303-2 status is listed as not applicable.

Inventory Availability: The 640907-2 has significantly higher inventory levels (20900 Pcs) compared to the 696303-2 (1053 Pcs), supporting consistent supply chain operations.

Packaging: The 640907-2 is supplied in Cut Tape (CT) packaging, facilitating automated assembly processes.

Selection of the 640907-2 is appropriate for all applications currently using or specifying the 696303-2, with no functional or dimensional compromises.

Frequently Asked Questions (FAQ)

Q: Are the 696303-2 and 640907-2 mechanically interchangeable?

A: Yes. Both parts share identical tab width (0.250"), tab thickness (0.032"), and mounting type (free hanging, in-line). They interface identically with mating connectors and PCB receptacles.

Q: Can the 640907-2 be used in existing designs specified for the 696303-2?

A: Yes. The 640907-2 maintains full compatibility with all electrical and mechanical requirements of the 696303-2. No design modifications are required.

Q: What is the difference in overall length between these parts?

A: The 696303-2 has an overall length of 0.917" (23.30mm), while the 640907-2 measures 1.012" (25.70mm). This difference does not affect electrical performance or standard mounting applications. Physical space constraints should be evaluated for specific installations.

Q: Do both parts support the same wire gauge range?

A: Yes. Both the 696303-2 and 640907-2 are rated for 10-12 AWG wire gauges with identical crimp termination specifications.

Q: What is the significance of the RoHS3 compliance on the 640907-2?

A: ROHS3 compliance indicates the 640907-2 meets current European Union Restriction of Hazardous Substances regulations. This is required for many commercial and industrial applications and ensures the part meets modern environmental standards.

Q: Why is the 696303-2 listed as obsolete?

A: The 696303-2 has been superseded by the 640907-2 in the manufacturer's product line. The 640907-2 provides equivalent functionality with improved regulatory compliance and active product support.

Q: Does packaging format affect electrical performance?

A: No. The Cut Tape (CT) packaging of the 640907-2 is a supply format only and does not affect electrical or mechanical performance compared to the 696303-2.
