Amphenol ICC 69307-018LF Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

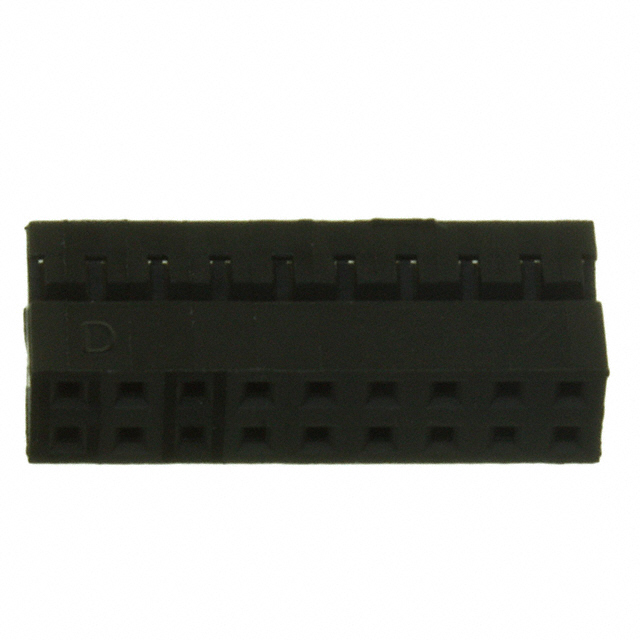

The Amphenol ICC 69307-018LF is an 18-position rectangular connector receptacle housing from the Minitek® MezzSelect™ series, designed for applications requiring 2.00mm pitch interconnection. This component is an active product with full RoHS compliance and unlimited moisture sensitivity rating. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling component interchangeability in system designs where connector housing compatibility is required.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	18
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Operating Temperature Range	-40°C to 105°C

Substitute Part Grouping Explanation

Substitution eligibility for the 69307-018LF is determined by strict alignment of the following critical parameters:

Connector type (Receptacle)
Contact type (Female Socket)
Number of positions (18)
Pitch specification (0.079" / 2.00mm)
Row configuration (2 rows with 0.079" spacing)
Mounting method (Free Hanging In-Line)
Contact termination method (Crimp)
Color (Black)
Operating temperature range (-40°C to 105°C)

The Molex 0511101850 meets all substitution criteria as a parametric equivalent from the Milli-Grid 51110 series, maintaining identical electrical and mechanical interface specifications.

Parameter Comparison

Parameter	Amphenol ICC 69307-018LF	Molex 0511101850	Match Status
Connector Type	Receptacle	Receptacle	Equivalent
Contact Type	Female Socket	Female Socket	Equivalent
Number of Positions	18	18	Equivalent
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	Equivalent
Number of Rows	2	2	Equivalent
Row Spacing	0.079" (2.00mm)	0.079" (2.00mm)	Equivalent
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Equivalent
Contact Termination	Crimp	Crimp	Equivalent
Color	Black	Black	Equivalent
Operating Temperature	-40°C to 105°C	-40°C to 105°C	Equivalent
Product Status	Active	Active	Equivalent
RoHS Compliance	RoHS Compliant	ROHS3 Compliant	Equivalent
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Equivalent

Engineering Selection Recommendations

Both the Amphenol ICC 69307-018LF and Molex 0511101850 are active products with current manufacturing status and full regulatory compliance. The 69307-018LF carries RoHS Compliant certification, while the 0511101850 carries ROHS3 Compliant certification, both meeting current environmental standards. Both components maintain unlimited moisture sensitivity rating (MSL 1) and operate across the identical temperature range of -40°C to 105°C. Selection between these parts may be based on supply availability, lead time, or existing supplier relationships, as all electrical and mechanical parameters are equivalent.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0511101850 be used as a direct replacement for the Amphenol ICC 69307-018LF?

A: Yes. Both components share identical connector type, contact configuration, position count, pitch specification, row arrangement, mounting method, and termination type. All critical electrical and mechanical parameters align, enabling direct substitution in applications designed for the 69307-018LF.

Q: Are there differences in insulation material between these parts?

A: The 69307-018LF uses Polyamide (PA66) Nylon 6/6 Glass Filled insulation, while the 0511101850 uses Polyester Glass Filled insulation. Both materials support the specified operating temperature range and moisture sensitivity rating.

Q: Do both parts require separate contact procurement?

A: Yes. Both the 69307-018LF and 0511101850 are connector housings supplied without contacts included. Contacts must be sourced separately and must be compatible with the 2.00mm pitch crimp termination specification.

Q: What is the significance of the different RoHS certifications?

A: The 69307-018LF carries RoHS Compliant certification while the 0511101850 carries ROHS3 Compliant certification. Both meet current environmental compliance requirements. ROHS3 represents the current regulatory standard, while RoHS Compliant indicates compliance with the original directive.

Q: Are these parts suitable for the same operating temperature applications?

A: Yes. Both components operate across the identical temperature range of -40°C to 105°C, making them suitable for equivalent thermal environments.
