Amphenol ICC 69307-014LF Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

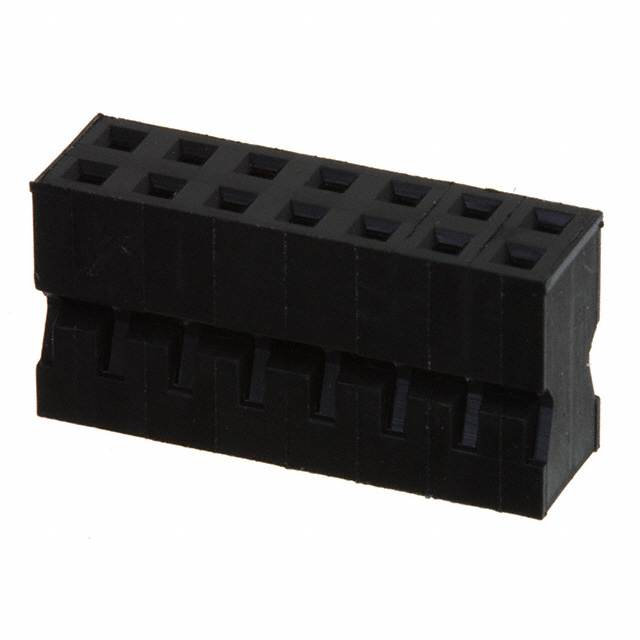

The Amphenol ICC 69307-014LF is a 14-position rectangular connector receptacle housing from the Minitek® MezzSelect™ series, designed for applications requiring 2.00mm pitch female socket connections. This component is actively manufactured and widely used in electronic assemblies requiring compact, reliable interconnection solutions. Identifying equivalent substitute parts is essential for supply chain continuity, design flexibility, and cost optimization when the primary part becomes unavailable or when alternative sourcing is required.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	14
Pitch	0.079" (2.00mm)
Number of Rows	2
Row Spacing	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Operating Temperature Range	-40°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the 69307-014LF are determined by strict equivalence across the following critical parameters: connector type (receptacle), contact type (female socket), number of positions (14), pitch (2.00mm), number of rows (2), row spacing (2.00mm), mounting type (free hanging in-line), and contact termination method (crimp). All identified substitutes maintain these core electrical and mechanical specifications, ensuring direct functional compatibility at the housing level.

The substitute parts identified are: Molex 0511101450 (Milli-Grid 51110 series), Hirose Electric A3B-14D-2C (A3 series), Harwin M22-3020700 (M22 series), and JST Sales America PHDR-14VS (PHD series). Each part meets the primary substitution criteria while originating from different manufacturers, providing design engineers with multiple sourcing options.

Parameter Comparison

Parameter	69307-014LF (Amphenol ICC)	0511101450 (Molex)	A3B-14D-2C (Hirose)	M22-3020700 (Harwin)	PHDR-14VS (JST)
Connector Type	Receptacle	Receptacle	Receptacle	Receptacle	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket	Female Socket	Female Socket
Number of Positions	14	14	14	14	14
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	2	2	2	2	2
Row Spacing	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp	Crimp	Crimp
Color	Black	Black	Black	Black	Natural
Operating Temperature Range	-40°C ~ 105°C	-40°C ~ 105°C	-55°C ~ 85°C	-25°C ~ 85°C	-25°C ~ 85°C
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant
REACH Status	REACH Affected	REACH Unaffected	REACH Unaffected	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

All identified substitute parts maintain active product status and comply with applicable regulatory requirements. The Molex 0511101450 provides the closest thermal performance match to the primary part, supporting the full -40°C ~ 105°C operating range. The Hirose A3B-14D-2C and Harwin M22-3020700 operate within reduced temperature ranges (-55°C ~ 85°C and -25°C ~ 85°C respectively), requiring thermal evaluation for applications demanding the full -40°C ~ 105°C specification. The JST PHDR-14VS differs in housing color (natural versus black) and operates within -25°C ~ 85°C limits. All parts carry MSL 1 rating and are suitable for unlimited moisture exposure conditions. REACH compliance status varies; the primary part is REACH Affected while all substitutes are REACH Unaffected, which may influence supply chain decisions for certain markets.

Frequently Asked Questions (FAQ)

Q: Can the Molex 0511101450 directly replace the Amphenol ICC 69307-014LF? A: Yes. Both parts share identical electrical and mechanical specifications: 14-position receptacle housings with 2.00mm pitch, 2-row configuration, female socket contacts, crimp termination, and equivalent operating temperature ranges (-40°C ~ 105°C). Both maintain MSL 1 rating.

Q: What is the primary difference between the Hirose A3B-14D-2C and the primary part? A: The Hirose part operates within a reduced temperature range (-55°C ~ 85°C versus -40°C ~ 105°C). All other electrical and mechanical parameters are equivalent. Applications requiring operation above 85°C or below -55°C must use the primary part or the Molex alternative.

Q: Why does the JST PHDR-14VS have a different color specification? A: The JST part is specified as natural color rather than black. This is a cosmetic difference only and does not affect electrical or mechanical function. Color selection depends on application requirements and assembly aesthetics.

Q: Are all substitute parts RoHS compliant? A: Yes. The primary part is RoHS Compliant, and all substitutes are ROHS3 Compliant or RoHS Compliant, meeting applicable environmental regulations.

Q: What does REACH Affected versus REACH Unaffected mean for part selection? A: The primary part (69307-014LF) is REACH Affected, indicating it may contain substances of concern under REACH regulations. All substitute parts are REACH Unaffected. For applications in REACH-regulated markets, substitute parts may offer simplified compliance documentation.

Q: Do these connector housings include contacts? A: No. All parts listed are housings only. Contacts must be sourced separately and must be compatible with the 2.00mm pitch and crimp termination specification.

Q: Which substitute part offers the best thermal performance? A: The Molex 0511101450 matches the primary part's full operating range of -40°C ~ 105°C, making it the optimal choice for applications requiring extended temperature operation.
