69305-010LF Equivalent & Substitute Parts

Part Overview

The 69305-010LF is a 10-position rectangular connector receptacle housing manufactured by Amphenol ICC (FCI) from the Minitek® MezzSelect™ series. This component is an active product designed for free-hanging, in-line applications with crimp termination contacts. The housing accommodates female socket contacts at a 0.079" (2.00mm) pitch and operates across a temperature range of -40°C to 105°C. Substitute parts are identified based on matching electrical and mechanical specifications including connector type, contact configuration, pitch, mounting style, and termination method.

Substiute Parts

69305-010LF

Amphenol ICC (FCI)In Stock: 95469305-010LF Datasheet

Current PartRFQ

1-175778-0

TE Connectivity AMP ConnectorsIn Stock: 7241-175778-0 Datasheet

Parametric EquivalentRFQ

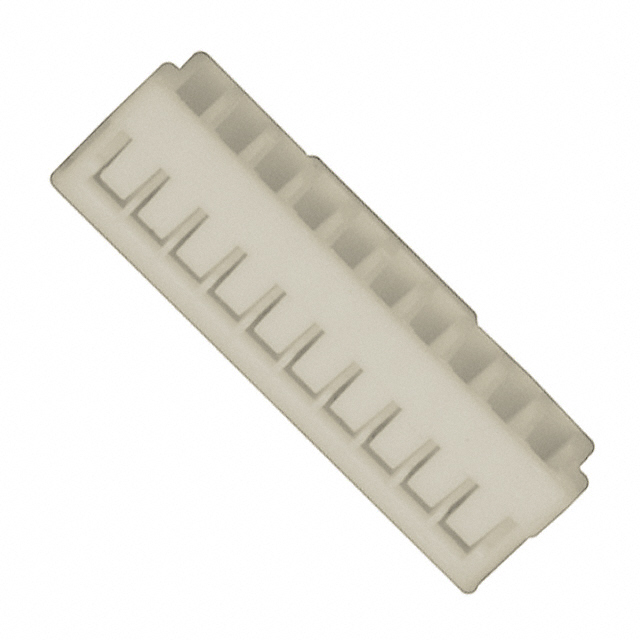

1-179228-0

TE Connectivity AMP ConnectorsIn Stock: 252021-179228-0 Datasheet

Parametric EquivalentRFQ

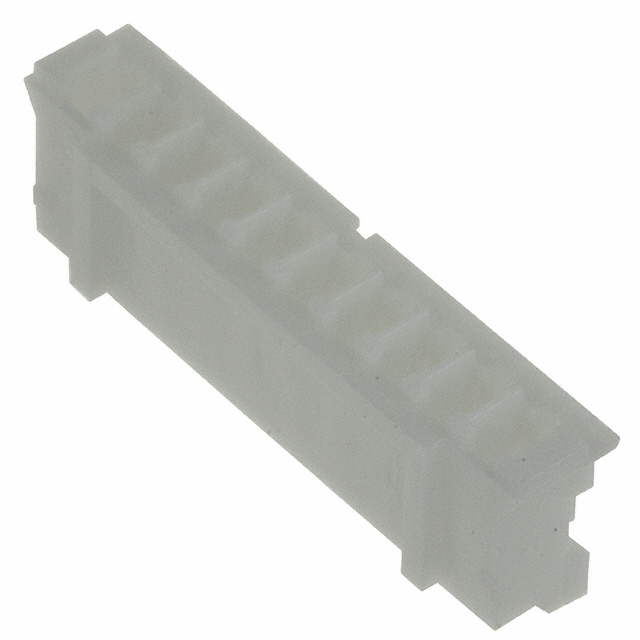

1-440129-0

TE Connectivity AMP ConnectorsIn Stock: 320921-440129-0 Datasheet

Parametric EquivalentRFQ

3-179228-0

TE Connectivity AMP ConnectorsIn Stock: 7643-179228-0 Datasheet

Parametric EquivalentRFQ

M22-3011000

Harwin Inc.In Stock: 1884M22-3011000 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the 69305-010LF are qualified based on the following critical parameters:

• Connector Type & Contact Configuration: All substitutes must be receptacle housings with female socket contacts
• Position Count & Pitch: All substitutes must accommodate 10 positions at 0.079" (2.00mm) pitch
• Mounting & Termination: All substitutes must support free-hanging, in-line mounting with crimp termination
• Electrical Compatibility: All substitutes must maintain the same contact interface for mating with standard 2.00mm pitch male connectors

The identified substitutes are grouped into two categories based on operating temperature capability:

Category A (Extended Temperature Range): Parts maintaining -40°C minimum operating temperature

• 69305-010LF (Amphenol ICC, Minitek® MezzSelect™ series)
• 1-175778-0 (TE Connectivity AMP, CT series)
• 1-179228-0 (TE Connectivity AMP, CT series)
• 3-179228-0 (TE Connectivity AMP, CT series)

Category B (Standard Temperature Range): Parts with -25°C minimum operating temperature

• 1-440129-0 (TE Connectivity AMP, HPI series)
• M22-3011000 (Harwin Inc., M22 series)

Parameter Comparison

Engineering Selection Recommendations

Selection of substitute parts must account for application-specific temperature requirements and compliance certifications:

For applications requiring extended low-temperature operation (-40°C minimum): The 69305-010LF, 1-175778-0, 1-179228-0, and 3-179228-0 are suitable. Among these, 1-179228-0 offers the highest inventory availability (25,100 pcs) while maintaining RoHS compliance and polyamide insulation material consistent with the original specification.

For applications operating within -25°C to 85°C range: The 1-440129-0 and M22-3011000 are qualified alternatives. Both parts carry ROHS3 compliance certification. The 1-440129-0 provides significantly higher inventory (32,076 pcs) compared to M22-3011000 (1,850 pcs).

For color-specific requirements: The 69305-010LF and M22-3011000 are available in black. The 1-175778-0, 1-179228-0, and 1-440129-0 are available in natural color. The 3-179228-0 is available in blue.

For insulation material consistency: Parts with polyamide (PA66) insulation include 69305-010LF, 1-175778-0, 1-179228-0, and 3-179228-0. Parts with thermoplastic insulation include 1-440129-0 and M22-3011000.

All identified substitutes maintain identical electrical and mechanical interfaces for 10-position, 2.00mm pitch crimp termination applications.

Frequently Asked Questions (FAQ)

Q: What determines if a part can substitute for the 69305-010LF?

A: Substitution is based on matching the following parameters: 10-position receptacle housing, female socket contacts, 0.079" (2.00mm) pitch, single row configuration, free-hanging in-line mounting, and crimp termination. All identified substitutes meet these criteria.

Q: Can I use 1-440129-0 or M22-3011000 in place of 69305-010LF in all applications?

A: These parts are suitable only for applications where the operating temperature range of -25°C to 85°C is acceptable. The 69305-010LF supports -40°C to 105°C. If your application requires operation below -25°C or above 85°C, use 1-175778-0, 1-179228-0, or 3-179228-0 instead.

Q: Does color affect electrical compatibility?

A: No. Color is a visual identifier only and does not affect electrical or mechanical compatibility. The 69305-010LF (black), 1-175778-0 (natural), 1-179228-0 (natural), 3-179228-0 (blue), 1-440129-0 (natural), and M22-3011000 (black) are all electrically equivalent for 10-position, 2.00mm pitch applications.

Q: What is the difference between polyamide and thermoplastic insulation materials?

A: Both materials are provided as specified in the part data. Polyamide (PA66) is used in 69305-010LF, 1-175778-0, 1-179228-0, and 3-179228-0. Thermoplastic is used in 1-440129-0 and M22-3011000. Material selection should be based on application requirements and design specifications.

Q: Are all substitutes RoHS compliant?

A: Yes. The 69305-010LF, 1-175778-0, 1-179228-0, and 3-179228-0 carry RoHS Compliant certification. The 1-440129-0 and M22-3011000 carry ROHS3 Compliant certification. Both certifications satisfy RoHS requirements.

Q: Which substitute has the best inventory availability?

A: The 1-179228-0 has the highest inventory at 25,100 pcs, followed by 1-440129-0 at 32,076 pcs. Availability should be confirmed with your supplier for current stock status.

Q: Can I mix different substitute parts in the same assembly?

A: All identified substitutes are electrically and mechanically compatible with each other and with the 69305-010LF for 10-position, 2.00mm pitch applications. Assembly design should account for any color or material differences if visual consistency or specific material properties are required.
