69305-009LF Rectangular Connector Housing - Equivalent & Substitute Parts

Part Overview

The 69305-009LF is a 9-position rectangular connector receptacle housing manufactured by Amphenol ICC (FCI) in the Minitek® MezzSelect™ series. This black polyamide housing accommodates female socket contacts with a 2.00mm pitch and operates across -40°C to 105°C. The part is actively produced and RoHS compliant. Substitute parts are identified when equivalent electrical and mechanical parameters are required for design flexibility, inventory management, or supply chain continuity.

Key Parameters

Parameter	Specification
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	9
Pitch	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Operating Temperature Range	-40°C ~ 105°C
Moisture Sensitivity Level	1 (Unlimited)
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitute parts for the 69305-009LF are qualified based on the following critical parameters that determine functional interchangeability:

Connector Type & Contact Configuration: All substitutes are receptacle housings with female socket contacts
Position Count & Pitch: All substitutes accommodate 9 positions at 0.079" (2.00mm) pitch
Row Configuration: All substitutes feature single-row layouts
Mounting & Termination: All substitutes use free-hanging in-line mounting with crimp termination
Moisture Sensitivity: All substitutes maintain MSL 1 (Unlimited) rating
Regulatory Compliance: All substitutes maintain RoHS compliance status

Four equivalent parts meet these criteria: 0513820900 (Molex MicroClasp 51382), 179228-9 (TE Connectivity CT series), 440129-9 (TE Connectivity HPI series), and M22-3010900 (Harwin M22 series).

Parameter Comparison

Manufacturer Part Number	Manufacturer	Series	Positions	Pitch	Color	Insulation Material	Operating Temperature	RoHS Status	Inventory (Pcs)
69305-009LF	Amphenol ICC (FCI)	Minitek® MezzSelect™	9	0.079" (2.00mm)	Black	Polyamide (PA66), Nylon 6/6, Glass Filled	-40°C ~ 105°C	RoHS Compliant	879
0513820900	Molex	MicroClasp 51382	9	0.079" (2.00mm)	White	Polyamide (PA66), Nylon 6/6	-40°C ~ 105°C	ROHS3 Compliant	9118
179228-9	TE Connectivity AMP Connectors	CT	9	0.079" (2.00mm)	Natural	Polyamide (PA66), Nylon 6/6	-55°C ~ 85°C	RoHS Compliant	1245
440129-9	TE Connectivity AMP Connectors	High Performance Interconnect (HPI)	9	0.079" (2.00mm)	Natural	Thermoplastic	-25°C ~ 105°C	RoHS Compliant	135205
M22-3010900	Harwin Inc.	M22	9	0.079" (2.00mm)	Black	Thermoplastic	-25°C ~ 85°C	ROHS3 Compliant	1841

Engineering Selection Recommendations

0513820900 (Molex MicroClasp 51382): Recommended as primary substitute. Matches the full operating temperature range (-40°C ~ 105°C) of the 69305-009LF. Includes latch lock fastening feature. ROHS3 compliant. Highest inventory availability (9118 units).

440129-9 (TE Connectivity HPI): Suitable for applications within -25°C ~ 105°C range. Highest inventory availability (135205 units) supports supply chain continuity. RoHS compliant. Thermoplastic insulation material differs from main part.

179228-9 (TE Connectivity CT): Suitable for applications within -55°C ~ 85°C range. RoHS compliant. Polyamide insulation material matches main part composition. Lower inventory (1245 units).

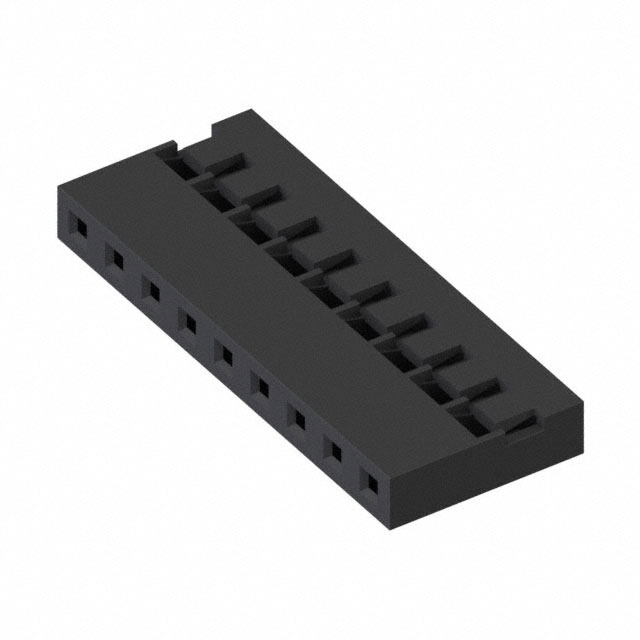

M22-3010900 (Harwin M22): Suitable for applications within -25°C ~ 85°C range. ROHS3 compliant. Black color matches main part. Lower inventory (1841 units). Thermoplastic insulation differs from main part.

Selection should prioritize application temperature requirements and supply chain availability.

Frequently Asked Questions (FAQ)

Q: Can 0513820900 directly replace 69305-009LF in all applications? A: Yes, within the specified operating temperature range. The 0513820900 maintains identical position count, pitch, mounting type, and termination method. The white color differs from the black 69305-009LF. The latch lock fastening feature on the 0513820900 provides additional mechanical retention.

Q: What is the temperature limitation when using 179228-9 as a substitute? A: The 179228-9 operates from -55°C to 85°C, compared to the 69305-009LF range of -40°C to 105°C. Applications requiring operation above 85°C or below -55°C cannot use this substitute.

Q: Are all substitutes compatible with the same contact pins? A: All substitutes are 9-position receptacles with 2.00mm pitch and crimp termination. Contact compatibility depends on the specific contact design and must be verified against the contact part number used in the assembly.

Q: What is the difference between polyamide and thermoplastic insulation materials in these housings? A: Both materials are used in connector housings. The 69305-009LF uses glass-filled polyamide (PA66). The 440129-9 and M22-3010900 use thermoplastic materials. Material selection affects mechanical properties and environmental resistance but does not affect electrical performance for these applications.

Q: Which substitute offers the best inventory availability? A: The 440129-9 (TE Connectivity HPI) has the highest inventory at 135205 units, followed by 0513820900 (Molex) at 9118 units.

Q: Are all substitutes RoHS compliant? A: Yes. The 69305-009LF, 179228-9, and 440129-9 are RoHS Compliant. The 0513820900 and M22-3010900 are ROHS3 Compliant, which represents an updated RoHS standard.
