Amphenol ICC 69192-572 Equivalent & Substitute Parts
Part Overview
The Amphenol ICC 69192-572 is a vertical through-hole rectangular connector header with 72 positions arranged in 2 rows at 0.100" (2.54mm) pitch. This BERGSTIK® II series component features male pins with kinked solder termination and push-pull fastening, designed for board-to-board applications. The part is currently active and available with 797 pieces in stock. Substitute parts are identified to address inventory requirements, alternative compliance certifications, or specific contact post length requirements for different PCB stack-up configurations.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | 69192-572 |
| Manufacturer | Amphenol ICC (FCI) |
| Category | Rectangular Connectors |
| Connector Type | Header |
| Contact Type | Male Pin |
| Number of Positions | 72 |
| Number of Rows | 2 |
| Pitch - Mating | 0.100" (2.54mm) |
| Row Spacing - Mating | 0.100" (2.54mm) |
| Mounting Type | Through Hole |
| Termination | Kinked Pin, Solder |
| Contact Length - Mating | 0.230" (5.84mm) |
| Contact Length - Post | 0.120" (3.05mm) |
| Overall Contact Length | 0.450" (11.43mm) |
| Contact Shape | Square |
| Contact Finish - Mating | Gold or Gold, GXT™ |
| Contact Material | Phosphor Bronze |
| Insulation Height | 0.100" (2.54mm) |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | RoHS non-compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Part Status | Active |
Substitute Part Grouping Explanation
Substitute parts for the 69192-572 are qualified based on the following critical parameters that must remain constant:
Fixed Parameters (No Variation Allowed):
- Number of Positions: 72
- Number of Rows: 2
- Pitch - Mating: 0.100" (2.54mm)
- Row Spacing - Mating: 0.100" (2.54mm)
- Contact Type: Male Pin
- Contact Shape: Square
- Contact Length - Mating: 0.230" (5.84mm)
- Insulation Height: 0.100" (2.54mm)
- Mounting Type: Through Hole
- Fastening Type: Push-Pull
- Material Flammability Rating: UL94 V-0
- Insulation Color: Black
Variable Parameters (Allowed Substitution Criteria):
- Contact Length - Post: 0.120" to 0.820" (3.05mm to 20.83mm) — varies by application stack-up
- Contact Finish - Mating: Gold or Tin — both acceptable for electrical performance
- Contact Finish - Post: Tin or Gold — both acceptable for solder joint formation
- Manufacturer: Amphenol ICC, Sullins Connector Solutions, or Samtec Inc.
- Connector Type: Header or Header, Breakaway — both compatible with board-to-board applications
- Insulation Material: Not specified in main part; PBT acceptable in substitutes
- RoHS Status: Non-compliant or ROHS3 Compliant — determined by application requirements
- Operating Temperature Range: -65°C to 125°C acceptable; -55°C to 125°C acceptable
Substitutes are grouped by contact post length to accommodate different PCB thicknesses and assembly requirements.
Parameter Comparison
| Parameter | 69192-572 (Main) | PBC36DAAN | PBC36DABN | PBC36DACN | PBC36DAHN | PEC36DAAN | PEC36DABN | TSW-136-07-G-D | TSW-136-07-L-D | TSW-136-07-S-D | TSW-136-07-T-D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Manufacturer | Amphenol ICC | Sullins | Sullins | Sullins | Sullins | Sullins | Sullins | Samtec | Samtec | Samtec | Samtec |
| Number of Positions | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 | 72 |
| Number of Rows | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| Pitch - Mating | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" |
| Contact Type | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin | Male Pin |
| Contact Length - Mating | 0.230" | 0.230" | 0.230" | 0.230" | 0.230" | 0.230" | 0.230" | 0.230" | 0.230" | 0.230" | 0.230" |
| Contact Length - Post | 0.120" | 0.120" | 0.230" | 0.320" | 0.820" | 0.120" | 0.230" | 0.100" | 0.100" | 0.100" | 0.100" |
| Overall Contact Length | 0.450" | 0.450" | 0.560" | 0.650" | 1.150" | 0.450" | 0.560" | 0.430" | 0.430" | 0.430" | 0.430" |
| Contact Shape | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square | Square |
| Contact Finish - Mating | Gold | Gold | Gold | Gold | Gold | Tin | Tin | Gold | Gold | Gold | Tin |
| Contact Finish - Post | Not specified | Tin | Tin | Tin | Tin | Tin | Tin | Gold | Tin | Tin | Tin |
| Contact Material | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze | Phosphor Bronze |
| Insulation Material | Not specified | PBT | PBT | PBT | PBT | PBT | PBT | PBT | PBT | PBT | PBT |
| Insulation Height | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" | 0.100" |
| Insulation Color | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black | Black |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Fastening Type | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull | Push-Pull |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Operating Temperature | Not specified | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 105°C |
| RoHS Status | Non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Part Status | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active | Active |
Engineering Selection Recommendations
Primary Substitutes (Identical Post Length 0.120"):

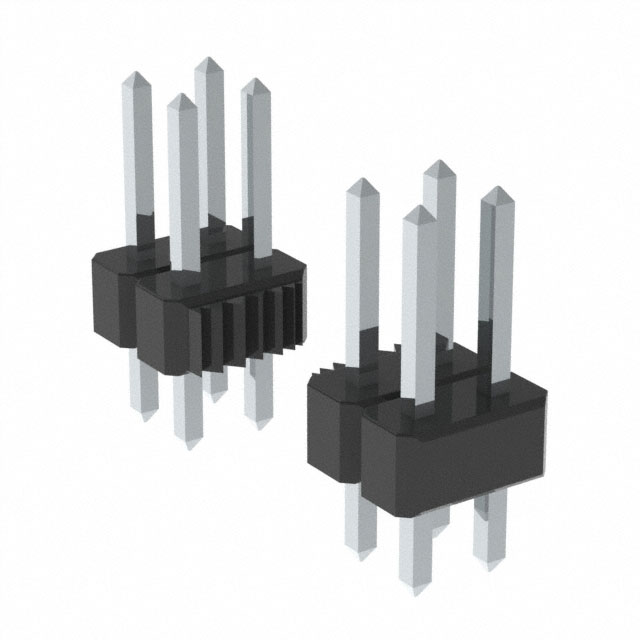

PBC36DAAN and PEC36DAAN are direct functional equivalents to the 69192-572 with matching contact post length of 0.120" (3.05mm). Both are manufactured by Sullins Connector Solutions and carry ROHS3 compliance certification. PBC36DAAN features gold mating contact finish with tin post finish, while PEC36DAAN provides tin mating contact finish with tin post finish. Selection between these depends on mating surface requirements and RoHS compliance mandates for the end application.
Extended Post Length Substitutes (0.230" to 0.820"):

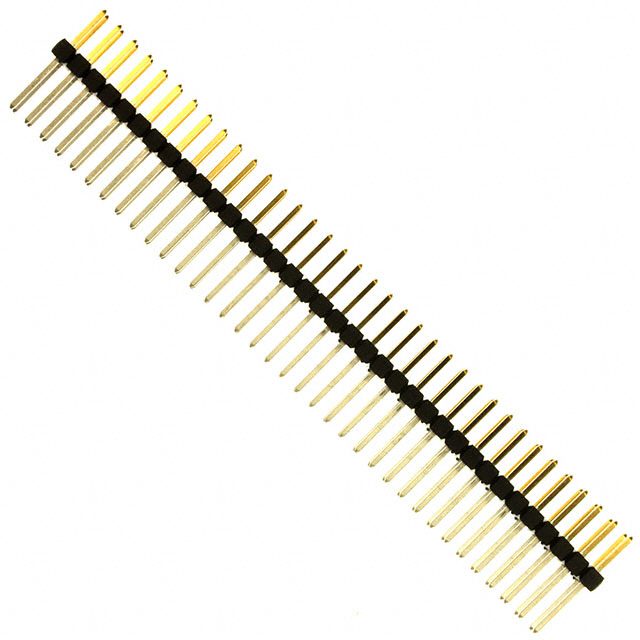

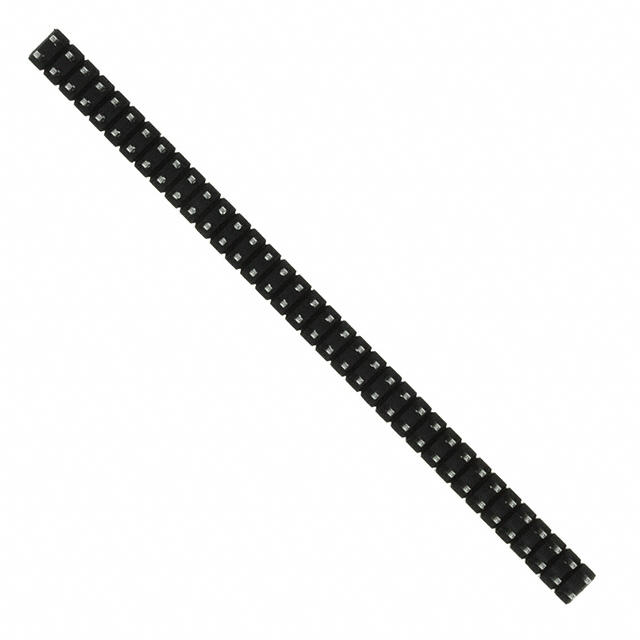

PBC36DABN (0.230"), PBC36DACN (0.320"), and PBC36DAHN (0.820") accommodate PCB assemblies requiring deeper solder penetration or thicker substrate stacks. These Sullins parts maintain all critical electrical and mechanical parameters while providing post length flexibility. PEC36DABN offers the same 0.230" post length with tin finish contacts.
Samtec TSW Series Substitutes (0.100" Post Length):
TSW-136-07-G-D, TSW-136-07-L-D, TSW-136-07-S-D, and TSW-136-07-T-D from Samtec Inc. provide shorter post lengths of 0.100" (2.54mm), suitable for applications with minimal PCB stack-up. These parts feature ROHS3 compliance and operating temperature ranges of -55°C to 125°C (or -55°C to 105°C for TSW-136-07-T-D). Contact finish variations include gold or tin mating surfaces with tin or gold post finishes.
Compliance Considerations:
All substitute parts carry ROHS3 compliance certification, whereas the original 69192-572 is RoHS non-compliant. Applications subject to RoHS directives must select from the compliant substitute options. Samtec TSW series parts maintain the narrowest operating temperature floor at -55°C compared to Sullins parts at -65°C; verify application requirements before selection.
Frequently Asked Questions (FAQ)
Q: Can I substitute the 69192-572 with any of these parts without PCB redesign?
A: Direct substitution without PCB modification is limited to parts with matching contact post length of 0.120" (3.05mm): PBC36DAAN and PEC36DAAN. Parts with different post lengths (0.100", 0.230", 0.320", or 0.820") require PCB hole depth verification and may necessitate solder paste volume adjustment.
Q: What is the difference between PBC36DAAN and PEC36DAAN?
A: Both parts have identical mechanical dimensions and post length (0.120"). The primary difference is contact finish: PBC36DAAN provides gold mating contacts with tin post finish, while PEC36DAAN provides tin mating contacts with tin post finish. Selection depends on connector mating surface specifications and contact resistance requirements.
Q: Are the Samtec TSW-136 series parts compatible with the same mating connectors?
A: Yes. All substitute parts maintain the same 72-position, 2-row configuration with 0.100" (2.54mm) pitch and identical contact mating length of 0.230" (5.84mm). Mating connector compatibility is determined by these parameters, not by post length. However, the TSW series features a shorter overall contact length (0.430" vs. 0.450"), which may affect mechanical clearance in confined spaces.
Q: Which substitute should I select for RoHS-compliant applications?
A: All listed substitutes carry ROHS3 compliance certification. The original 69192-572 is RoHS non-compliant. For RoHS-mandated applications, select from Sullins (PBC36 or PEC36 series) or Samtec (TSW-136 series) options based on post length requirements and operating temperature range.
Q: What post length should I use for my application?
A: Contact post length is determined by PCB thickness and solder joint formation requirements. Standard PCB thickness (1.6mm) typically uses 0.120" post length. Thicker substrates or applications requiring deeper solder penetration use 0.230", 0.320", or 0.820" post lengths. Consult PCB assembly guidelines and solder paste volume specifications for your manufacturing process.
Q: Do all substitutes have the same current rating?
A: The original 69192-572 does not specify a current rating. Sullins parts (PBC36 and PEC36 series) are rated for 3A per contact. Samtec TSW-136 series parts do not specify current rating in available documentation. Verify current requirements against manufacturer datasheets for your specific application.
Q: What is the operating temperature difference between manufacturers?
A: Sullins parts operate from -65°C to 125°C. Samtec TSW-136 series parts operate from -55°C to 125°C, except TSW-136-07-T-D which operates from -55°C to 105°C. Select based on application temperature extremes; Sullins parts provide wider low-temperature capability.
