Amphenol ICC 69192-126 Rectangular Connector Header — Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 69192-126 is a through-hole rectangular connector header from the BERGSTIK® II series, configured as a 26-position, 2-row male pin header with 0.100" (2.54mm) pitch. This connector is classified as obsolete, which necessitates identification of active equivalent and substitute parts for new designs and ongoing production requirements. The part features kinked pin solder termination, push-pull fastening, and gold-plated mating contacts suitable for board-to-board applications in industrial and commercial electronics.

Key Parameters

Parameter	Value
Manufacturer Part Number	69192-126
Manufacturer	Amphenol ICC (FCI)
Series	BERGSTIK® II
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Number of Positions	26
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Kinked Pin, Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold or Gold, GXT™
Contact Material	Phosphor Bronze
Operating Temperature	-65°C ~ 130°C
Current Rating	3A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS non-compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution of the 69192-126 is determined by strict adherence to the following electrical and mechanical parameters:

Critical Matching Parameters:

Number of Positions: 26
Number of Rows: 2
Pitch - Mating: 0.100" (2.54mm)
Row Spacing - Mating: 0.100" (2.54mm)
Connector Type: Header
Contact Type: Male Pin
Mounting Type: Through Hole
Fastening Type: Push-Pull
Current Rating: 3A
Material Flammability Rating: UL94 V-0

Acceptable Variation Parameters:

Contact Finish - Mating: Gold or Tin (both acceptable for electrical compatibility)
Contact Material: Phosphor Bronze or Copper Alloy (both acceptable)
Insulation Material: Varies by manufacturer (all UL94 V-0 rated)
Operating Temperature Range: Minimum -55°C to +105°C acceptable; 69192-126 operates to -65°C to +130°C
Contact Length - Mating: Variation within 0.100" to 0.250" acceptable
Contact Length - Post: Variation within 0.090" to 0.164" acceptable
Overall Contact Length: Variation acceptable within board-to-board assembly constraints

Substitute parts must maintain identical pitch, position count, row configuration, and fastening mechanism. Variations in contact finish, material composition, and insulation height are permissible provided electrical and mechanical interface compatibility is preserved.

Parameter Comparison

Parameter	69192-126 (Main)	69192-126HLF	2326-6121TB (3M)	450-10-226-00-013101 (Preci-Dip)	450-80-226-00-001101 (Preci-Dip)	450-80-226-00-013101 (Preci-Dip)	6-146254-3 (TE)	6-146256-3 (TE)	6-146257-3 (TE)	6-146261-3 (TE)	HMTSW-113-07-G-D-205 (Samtec)
Manufacturer	Amphenol ICC	Amphenol ICC	3M	Preci-Dip	Preci-Dip	Preci-Dip	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity	Samtec Inc.
Product Status	Obsolete	Active	Active	Active	Active	Active	Active	Active	Active	Active	Active
Number of Positions	26	26	26	26	26	26	26	26	26	26	26
Number of Rows	2	2	2	2	2	2	2	2	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Connector Type	Header	Header	Header	Header	Header	Header	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header, Breakaway	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Kinked Pin, Solder	Kinked Pin, Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Fastening Type	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull	Push-Pull
Contact Finish - Mating	Gold or Gold, GXT™	Gold or Gold, GXT™	Gold	Gold	Tin	Tin	Tin	Gold	Gold	Gold	Gold
Contact Material	Phosphor Bronze	Phosphor Bronze	Copper Alloy	Brass	Brass	Brass	Copper Alloy	Copper Alloy	Copper Alloy	Copper Alloy	Phosphor Bronze
Operating Temperature	-65°C ~ 130°C	-65°C ~ 130°C	-55°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-65°C ~ 105°C	-55°C ~ 125°C
Current Rating	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A	3A
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS non-compliant	RoHS Compliant	RoHS non-compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	Not Applicable	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	Not Applicable

Engineering Selection Recommendations

Direct Amphenol ICC Equivalent: The 69192-126HLF is the direct active equivalent from Amphenol ICC. This part maintains identical electrical and mechanical specifications to the obsolete 69192-126 while offering active product status and RoHS compliance. The HLF designation indicates bulk packaging and RoHS-compliant material composition. This is the preferred replacement for direct substitution in existing designs.

TE Connectivity AMPMODU Mod II Series (6-146254-3, 6-146256-3, 6-146257-3, 6-146261-3): These parts are active, RoHS-compliant alternatives from TE Connectivity. The AMPMODU Mod II series maintains the critical 26-position, 2-row, 0.100" pitch configuration with push-pull fastening. Variations exist in contact finish (tin or gold) and contact length specifications. Parts 6-146256-3 and 6-146257-3 feature gold mating contacts with higher inventory availability (1578 and 748 units respectively). Part 6-146261-3 offers a shorter post length (0.090") suitable for applications with reduced board-to-board stacking height requirements.

Preci-Dip 450 Series (450-10-226-00-013101, 450-80-226-00-001101, 450-80-226-00-013101): These ROHS3-compliant alternatives maintain the 26-position, 2-row configuration with 0.100" pitch. The 450-10 variant features gold mating contacts with circular contact geometry and brass material. The 450-80 variants offer tin-plated contacts. All three parts support 150VDC voltage rating and operate across -55°C to +125°C temperature range. Contact length variations accommodate different board thickness requirements.

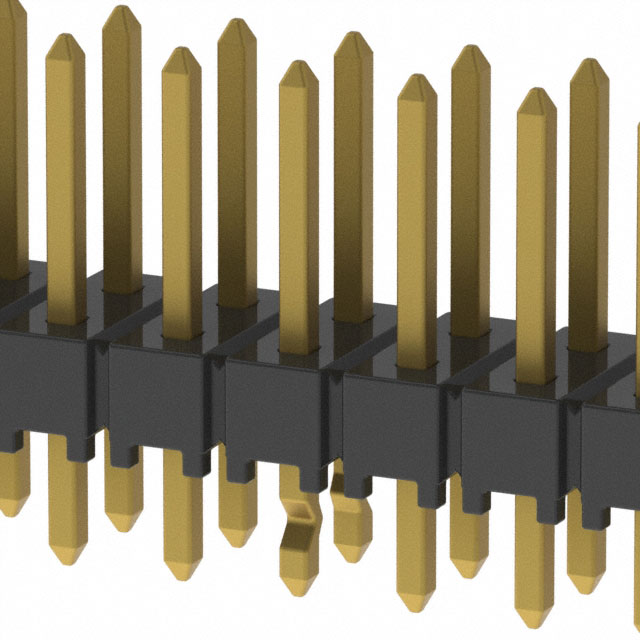

Samtec HMTSW Series (HMTSW-113-07-G-D-205): This ROHS3-compliant header from the Flex Stack HMTSW series provides a 26-position, 2-row configuration with 0.100" pitch and push-pull fastening. The part features gold-plated mating contacts on phosphor bronze material, matching the original 69192-126 contact material. Operating temperature range is -55°C to +125°C. The HMTSW series is designed for flexible stacking applications.

3M 2300 Series (2326-6121TB): The 3M 2300 series header maintains the 26-position, 2-row, 0.100" pitch configuration with push-pull fastening. This part is RoHS non-compliant but offers active product status. Operating temperature is limited to -55°C to +105°C. The 3M part is suitable for legacy applications where RoHS compliance is not required.

Frequently Asked Questions (FAQ)

Q: Can I use any of these substitute parts as a direct replacement for the 69192-126?

A: The 69192-126HLF from Amphenol ICC is the direct equivalent and recommended replacement. Other substitutes are electrically and mechanically compatible based on matching pitch (0.100"), position count (26), row configuration (2), and fastening type (push-pull), but may require PCB layout verification due to variations in contact length and insulation height.

Q: What is the difference between the TE Connectivity parts (6-146254-3, 6-146256-3, 6-146257-3, 6-146261-3)?

A: All four TE parts maintain identical pitch, position count, and row spacing. Differences include: contact finish (6-146254-3 uses tin; 6-146256-3 and 6-146257-3 use gold), contact finish thickness on mating surfaces (6-146256-3 has 15.0µin; 6-146257-3 has 30.0µin), and post length (6-146261-3 has 0.090" versus 0.120" on the others). Selection depends on contact finish requirements and available board-to-board stacking height.

Q: Are there RoHS compliance differences between these substitutes?

A: Yes. The 69192-126 is RoHS non-compliant. Active RoHS-compliant alternatives include 69192-126HLF (RoHS Compliant), all Preci-Dip 450 series parts (ROHS3 Compliant), TE parts 6-146256-3 and 6-146261-3 (ROHS3 Compliant), and Samtec HMTSW-113-07-G-D-205 (ROHS3 Compliant). The 3M 2326-6121TB remains RoHS non-compliant. Select based on your product's regulatory requirements.

Q: What is the difference between gold and tin contact finishes?

A: Both finishes are electrically acceptable for this connector type. Gold finishes (69192-126, 69192-126HLF, 3M 2326-6121TB, Preci-Dip 450-10, TE 6-146256-3, 6-146257-3, 6-146261-3, Samtec HMTSW-113-07-G-D-205) provide superior corrosion resistance and lower contact resistance. Tin finishes (Preci-Dip 450-80 variants) are cost-effective and suitable for standard industrial applications. Contact finish thickness varies; thicker plating (30.0µin) provides enhanced durability.

Q: Can I use the Preci-Dip 450-80 variants with tin finish instead of gold?

A: Yes. The tin-plated 450-80 variants (450-80-226-00-001101 and 450-80-226-00-013101) are electrically compatible substitutes. Tin finishes maintain adequate contact resistance and corrosion protection for standard applications. Selection depends on application environment and cost considerations. Both variants are ROHS3 compliant and support 150VDC voltage rating.

Q: What is the significance of the contact length variations?

A: Contact length affects board-to-board stacking height and mating depth. The original 69192-126 has mating contact length of 0.230" and post length of 0.120". Substitutes vary: TE 6-146261-3 offers reduced post length (0.090") for compact assemblies, while Preci-Dip 450-80-226-00-001101 offers extended post length (0.164") for thicker PCBs. Verify your PCB thickness and available stacking height before selection.

Q: Are the TE Connectivity AMPMODU Mod II parts with "Breakaway" designation compatible?

A: Yes. The "Breakaway" designation indicates the connector can be separated into individual positions if required, but this does not affect standard board-to-board mating compatibility. The electrical and mechanical interface remains identical to non-breakaway headers with matching pitch and position count.

Q: What is the operating temperature range consideration for substitution?

A: The original 69192-126 operates from -65°C to +130°C. Most substitutes operate within -55°C to +125°C, which covers standard industrial temperature ranges. If your application requires the full -65°C to +130°C range, verify the substitute part's temperature specification. The 69192-126HLF maintains the original -65°C to +130°C range.

Q: Can I mix contact finishes in a design using different substitute parts?

A: Mixing contact finishes (gold and tin) across different connector positions is not recommended. Maintain consistency within a single connector assembly to ensure uniform contact resistance and corrosion behavior. Select all 26 positions from parts with the same contact finish specification.
