Amphenol ICC 69190-102HTLF Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 69190-102HTLF is an active rectangular connector header designed for through-hole mounting in board-to-board applications. This BERGSTIK® II series component features a 2-position, single-row configuration with 0.100" (2.54mm) pitch and unshrouded design. The connector employs press-fit and solder termination with gold-plated phosphor bronze contacts rated for 3A continuous current and operating temperatures from -65°C to 130°C. Substitute parts are identified to address inventory availability, packaging preferences, or specific application requirements while maintaining functional compatibility.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	2
Number of Rows	1
Mounting Type	Through Hole
Termination	Press-Fit, Solder
Contact Material	Phosphor Bronze
Contact Finish - Mating	Gold or Gold, GXT™
Operating Temperature	-65°C ~ 130°C
Current Rating	3A
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)

Substitute Part Grouping Explanation

Substitution eligibility is determined by strict alignment with the following core parameters: connector type (header), contact type (male pin), mating pitch (0.100" / 2.54mm), number of positions (2), number of rows (1), mounting type (through hole), and fastening type (push-pull). All identified substitutes meet these baseline requirements.

Secondary compatibility factors include contact material composition, insulation material type, operating temperature range, current rating capacity, and regulatory compliance status (RoHS, REACH, UL94 V-0). Variations in contact length, insulation height, contact finish composition, and packaging format are permissible within the substitute group, as these parameters do not affect mating compatibility or fundamental electrical performance in standard board-to-board applications.

Parameter Comparison

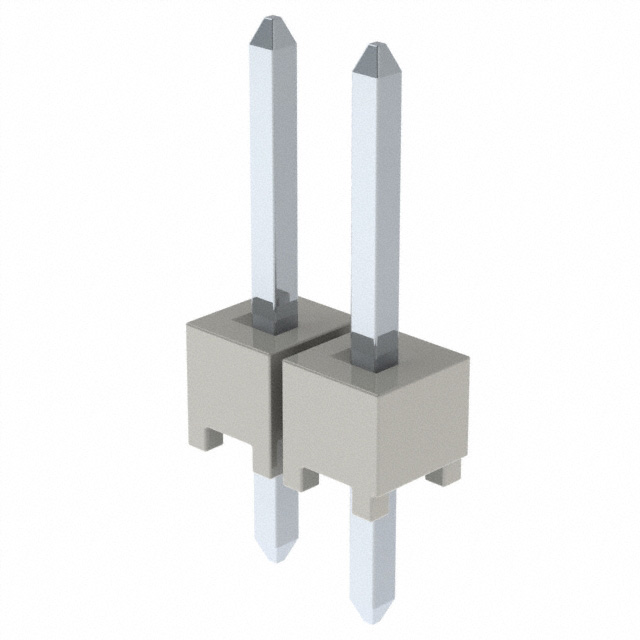

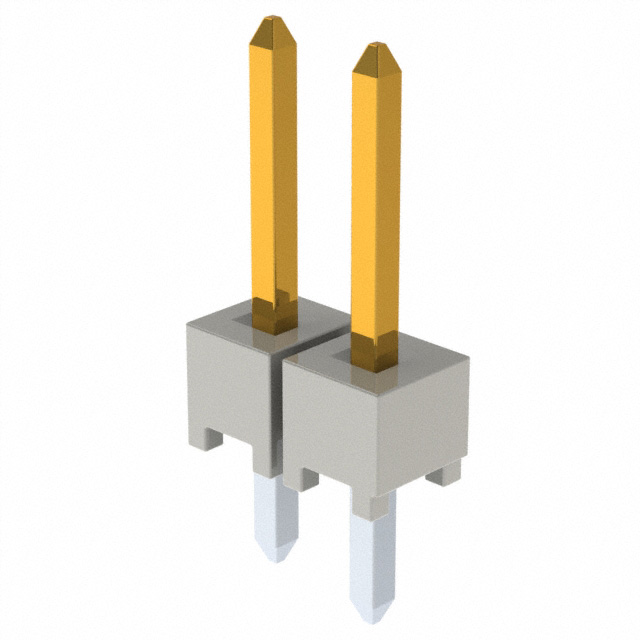

Parameter	69190-102HTLF (Main)	800-10-002-10-001000	929450-01-02-I	HTSW-102-07-F-S	HTSW-102-07-L-S	HTSW-102-07-T-S	HTSW-102-07-TM-S	MTLW-102-05-G-S-220	MTLW-102-06-G-S-225	MTLW-102-07-G-S-230	MTLW-102-07-L-S-250
Manufacturer	Amphenol ICC	Mill-Max	3M	Samtec	Samtec	Samtec	Samtec	Samtec	Samtec	Samtec	Samtec
Connector Type	Header	Header	Header, Breakaway	Header	Header	Header	Header	Header	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	2	2	2	2	2	2	2	2	2	2	2
Number of Rows	1	1	1	1	1	1	1	1	1	1	1
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Termination	Press-Fit, Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder	Solder
Contact Material	Phosphor Bronze	Brass Alloy	Copper Alloy	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish - Mating	Gold or Gold, GXT™	Gold	Gold	Gold	Gold	Tin	Tin	Gold	Gold	Gold	Gold
Operating Temperature	-65°C ~ 130°C	Not Specified	-40°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 105°C	-55°C ~ 105°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Current Rating	3A	Not Specified	2.5A	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	Varies by Wire Gauge	5.2A per Contact	5.2A per Contact	5.2A per Contact	5.2A per Contact
Material Flammability Rating	UL94 V-0	Not Specified	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	RoHS Compliant	ROHS3 Compliant	Not Specified	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	1 (Unlimited)	Not Applicable	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)	Not Applicable	1 (Unlimited)

Engineering Selection Recommendations

All substitute parts listed maintain active product status and comply with RoHS and REACH regulatory requirements. The Samtec HTSW series (HTSW-102-07-F-S, HTSW-102-07-L-S, HTSW-102-07-T-S, HTSW-102-07-TM-S) and Samtec Flex Stack MTLW series (MTLW-102-05-G-S-220, MTLW-102-06-G-S-225, MTLW-102-07-G-S-230, MTLW-102-07-L-S-250) provide UL94 V-0 flammability certification matching the main part specification. The HTSW variants employ phosphor bronze contacts with gold or tin finishes and operate across -55°C to 125°C or -55°C to 105°C ranges. The MTLW variants feature enhanced current capacity at 5.2A per contact with gold or mixed finishes and operate across -55°C to 125°C.

The Mill-Max 800-10-002-10-001000 provides a brass alloy contact alternative with circular contact geometry and operates at unspecified temperature limits. The 3M 929450-01-02-I offers a breakaway header variant with copper alloy contacts, UL94 V-0 rating, and -40°C to 105°C operating range with 2.5A current capacity.

Selection should prioritize parts with specified operating temperature ranges that encompass application requirements and current ratings that meet or exceed circuit demands. ROHS3 compliance across all substitutes ensures alignment with current regulatory standards.

Frequently Asked Questions (FAQ)

Q: Can the 69190-102HTLF be directly replaced with any of the listed substitutes?

A: Yes, all listed parts share the core mating parameters: 2-position, single-row header configuration with 0.100" (2.54mm) pitch, male pin contacts, through-hole mounting, and push-pull fastening. Physical mating compatibility is maintained across all substitutes.

Q: What are the key differences between the Samtec HTSW and MTLW series substitutes?

A: The HTSW series maintains contact geometry and dimensions closely aligned with the main part, with operating temperatures from -55°C to 125°C (or -55°C to 105°C for tin-finish variants) and current ratings varying by wire gauge. The MTLW Flex Stack series features reduced insulation height (0.060" versus 0.100"), shorter overall contact lengths, and higher current capacity at 5.2A per contact, with operating temperatures from -55°C to 125°C.

Q: Does packaging format affect electrical performance?

A: No. Packaging format (tube, bulk, or bag) does not affect electrical or mechanical performance. Selection should be based on procurement volume requirements and inventory management practices.

Q: Are tin-finish variants (HTSW-102-07-T-S, HTSW-102-07-TM-S) suitable replacements for gold-finish applications?

A: Tin-finish variants provide equivalent mating performance within their specified operating temperature range (-55°C to 105°C). Application requirements for contact finish material should be evaluated based on corrosion resistance, solderability, and environmental exposure conditions.

Q: What is the significance of the MTLW series reduced insulation height?

A: The MTLW series insulation height of 0.060" (1.52mm) versus the main part's 0.100" (2.54mm) results in lower overall connector profile. This dimensional difference may affect board layout and stacking height considerations in multi-connector applications.

Q: How do current ratings compare across substitutes?

A: The main part is rated for 3A continuous current. The 3M 929450-01-02-I is rated for 2.5A. Samtec HTSW variants specify current as varying by wire gauge. Samtec MTLW variants provide 5.2A per contact capacity. Application current requirements should be matched to the selected substitute's rating.

Q: Are all substitutes RoHS compliant?

A: All listed substitutes carry ROHS3 compliance certification. The main part carries RoHS Compliant status. Both designations satisfy current regulatory requirements for restricted substance elimination.
