Amphenol ICC 69168-416 Rectangular Connector - Equivalent & Substitute Parts

Part Overview

The Amphenol ICC 69168-416 is a shrouded vertical header connector with 16 positions arranged in 2 rows at 0.100" (2.54mm) pitch. This through-hole connector is designed for board-to-cable/wire applications with solder termination and friction lock fastening. The part is currently obsolete, making identification of compatible substitutes essential for ongoing system support and new design implementations.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Number of Positions	16
Number of Rows	2
Pitch - Mating	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)
Shrouding	Shrouded - 2 Wall
Mounting Type	Through Hole
Termination	Solder
Contact Shape	Square
Material Flammability Rating	UL94 V-0
Insulation Color	Black

Substitute Part Grouping Explanation

Substitution eligibility for the 69168-416 is determined by strict alignment with the following core parameters:

Connector Type & Contact Configuration: Header with male pins
Position Count & Arrangement: 16 positions in 2-row configuration
Pitch Specifications: 0.100" (2.54mm) mating pitch and row spacing
Shrouding & Mounting: Shrouded 2-wall design with through-hole mounting
Termination Method: Solder termination
Contact Shape & Material: Square contacts in phosphor bronze
Flammability Compliance: UL94 V-0 rating

Substitute parts must maintain these electrical and mechanical parameters to ensure form, fit, and functional compatibility. Variations in contact finish, insulation material, fastening mechanism, or operating temperature do not preclude substitution when core parameters align.

Parameter Comparison

Parameter	69168-416 (Main)	69168-416HLF (Direct)	826469-8 (MFR Recommended)
Manufacturer	Amphenol ICC (FCI)	Amphenol ICC (FCI)	TE Connectivity AMP Connectors
Series	Mini-PV™, Basics+	Mini-PV™, Basics+	AMPMODU Mod II
Product Status	Obsolete	Active	Active
Connector Type	Header	Header	Header
Contact Type	Male Pin	Male Pin	Male Pin
Number of Positions	16	16	16
Number of Rows	2	2	2
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Row Spacing - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Shrouding	Shrouded - 2 Wall	Shrouded - 2 Wall	Shrouded - 2 Wall
Mounting Type	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder
Contact Shape	Square	Square	Square
Contact Material	Phosphor Bronze	Phosphor Bronze	Phosphor Bronze
Contact Finish - Mating	Tin	Tin	Gold
Insulation Height	0.386" (9.80mm)	0.386" (9.80mm)	0.394" (10.00mm)
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
Insulation Color	Black	Black	Black
RoHS Status	RoHS non-compliant	RoHS Compliant	ROHS3 Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
ECCN	EAR99	EAR99	EAR99
HTSUS	8536.69.4040	8536.69.4040	8536.69.4040

Engineering Selection Recommendations

69168-416HLF (Direct Amphenol ICC Substitute)

The 69168-416HLF is the direct successor within the Amphenol ICC Mini-PV™ series. It maintains identical electrical and mechanical specifications to the obsolete 69168-416 while offering active product status and RoHS compliance. This part is the preferred choice for applications requiring minimal design modification and continued support within the same manufacturer ecosystem.

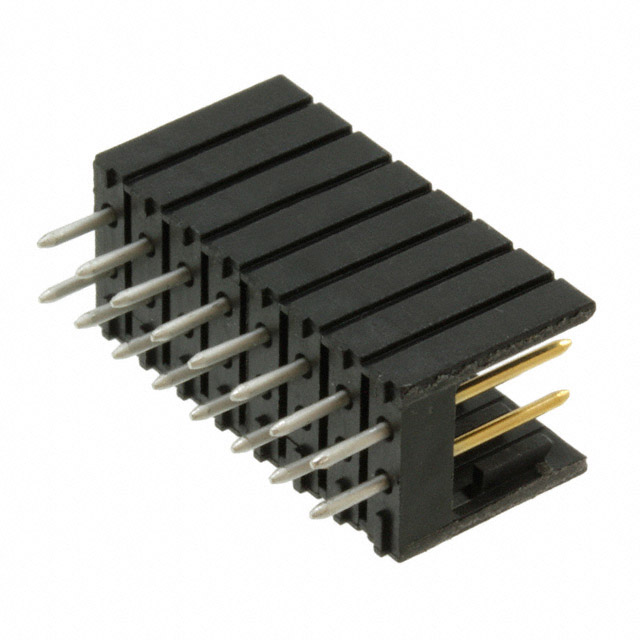

826469-8 (TE Connectivity Cross-Manufacturer Substitute)

The TE Connectivity 826469-8 from the AMPMODU Mod II series provides full functional equivalence with measurable differences in secondary parameters. The gold mating contact finish (versus tin) and slightly increased insulation height (0.394" versus 0.386") represent minor variations that do not affect core connector functionality. This part is suitable for applications where cross-manufacturer sourcing is acceptable and offers ROHS3 compliance with active product status.

Both substitutes maintain the critical parameters: 16-position, 2-row configuration at 0.100" pitch, shrouded 2-wall design, through-hole solder termination, and UL94 V-0 flammability rating.

Frequently Asked Questions (FAQ)

Q: Can the 69168-416HLF be used as a direct replacement for the obsolete 69168-416?

A: Yes. The 69168-416HLF maintains identical connector type, position count, pitch, shrouding, mounting method, and termination specifications. The primary difference is product status (active versus obsolete) and RoHS compliance.

Q: What is the functional difference between tin and gold mating contact finishes?

A: Both finishes provide adequate electrical conductivity for standard applications. Tin finish (69168-416 and 69168-416HLF) offers cost efficiency. Gold finish (826469-8) provides enhanced corrosion resistance in high-humidity or harsh environments. Contact finish selection does not affect mechanical compatibility.

Q: Are there dimensional compatibility concerns between the Amphenol ICC and TE Connectivity substitutes?

A: The insulation height differs by 0.008" (0.20mm): Amphenol ICC parts measure 0.386" while the TE Connectivity 826469-8 measures 0.394". This minor variation is within typical PCB design tolerances and does not preclude substitution in standard applications. Verify clearance in space-constrained designs.

Q: Does the fastening mechanism difference (friction lock versus latch holder) affect compatibility?

A: Fastening mechanism differences do not affect mating compatibility with standard 0.100" pitch connectors. Both mechanisms secure the mated connection. Verify mating connector specifications to ensure compatibility with the selected substitute.

Q: What compliance certifications should I verify for new designs?

A: Both active substitutes (69168-416HLF and 826469-8) carry UL94 V-0 flammability ratings and MSL 1 moisture sensitivity levels. The 69168-416HLF is RoHS Compliant; the 826469-8 is ROHS3 Compliant. Confirm compliance requirements for your specific application and regulatory jurisdiction.
