Amphenol ICC 69168-218 Rectangular Connector Header - Equivalent & Substitute Parts

Part Overview

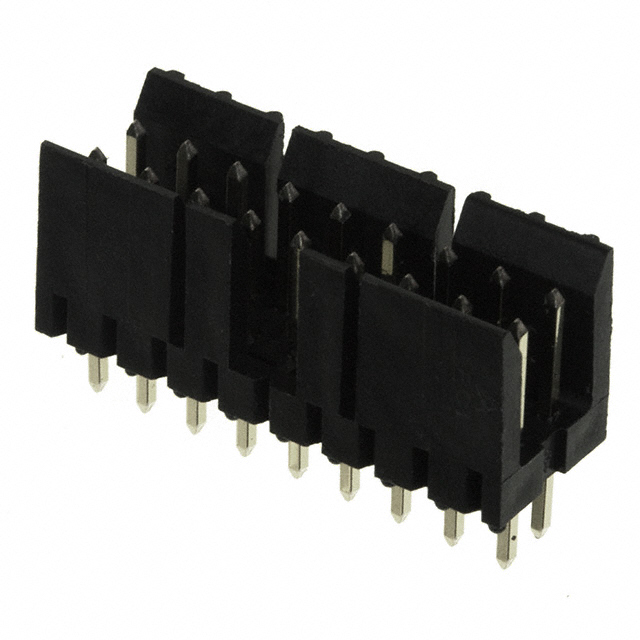

The Amphenol ICC 69168-218 is a shrouded rectangular connector header designed for through-hole mounting applications. This 18-position, 2-row connector with 0.100" (2.54mm) pitch provides board-to-cable/wire connectivity using solder termination and friction lock fastening. The part is currently listed as obsolete, making identification of suitable substitutes necessary for ongoing design support and component procurement.

Substiute Parts

69168-218

Amphenol ICC (FCI)In Stock: 92169168-218 Datasheet

Current PartRFQ

69168-218HLF

Amphenol ICC (FCI)In Stock: 73469168-218HLF Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the 69168-218 is based on electrical and mechanical compatibility within the Mini-PV™ and Basics+ series. The critical parameters determining substitutability are:

• 18-position, 2-row configuration
• 0.100" (2.54mm) mating pitch and row spacing
• Shrouded 2-wall design
• Through-hole solder termination
• Friction lock fastening mechanism
• Gold-plated phosphor bronze contacts
• UL94 V-0 flammability rating

The substitute part 69168-218HLF maintains identical electrical and mechanical specifications while differing in product status and regulatory compliance classification.

Parameter Comparison

Engineering Selection Recommendations

The 69168-218HLF serves as the direct substitute for the obsolete 69168-218. Both parts are electrically and mechanically identical across all functional parameters. The primary distinction is product lifecycle status: the 69168-218HLF is actively manufactured and carries RoHS compliance certification, whereas the original 69168-218 is obsolete and RoHS non-compliant.

For new designs or ongoing production requiring this connector configuration, the 69168-218HLF is the appropriate selection. For legacy systems currently using the 69168-218, the 69168-218HLF provides direct functional replacement with enhanced regulatory compliance.

Frequently Asked Questions (FAQ)

Q: Are the 69168-218 and 69168-218HLF mechanically interchangeable?

A: Yes. Both parts share identical mechanical specifications including pitch, row spacing, shrouding design, mounting type, and contact geometry. They are directly interchangeable in PCB layouts and mating applications.

Q: What is the difference between these two part numbers?

A: The primary differences are product status and regulatory compliance. The 69168-218HLF is the active production variant with RoHS compliance, while the 69168-218 is obsolete and RoHS non-compliant. Electrical and mechanical performance are identical.

Q: Can I use the 69168-218HLF as a replacement in existing assemblies?

A: Yes. The 69168-218HLF maintains full compatibility with applications designed for the 69168-218. No design modifications are required.

Q: What does the "HLF" suffix indicate?

A: The HLF suffix denotes the bulk packaging variant and active production status within the Mini-PV™ series.

Q: Are there any compliance considerations when switching from 69168-218 to 69168-218HLF?

A: The 69168-218HLF provides improved regulatory compliance with RoHS certification and REACH affected status, making it suitable for applications with stricter environmental and safety requirements.
