Würth Elektronik 691373500007B Terminal Block Plug Equivalent & Substitute Parts

Part Overview

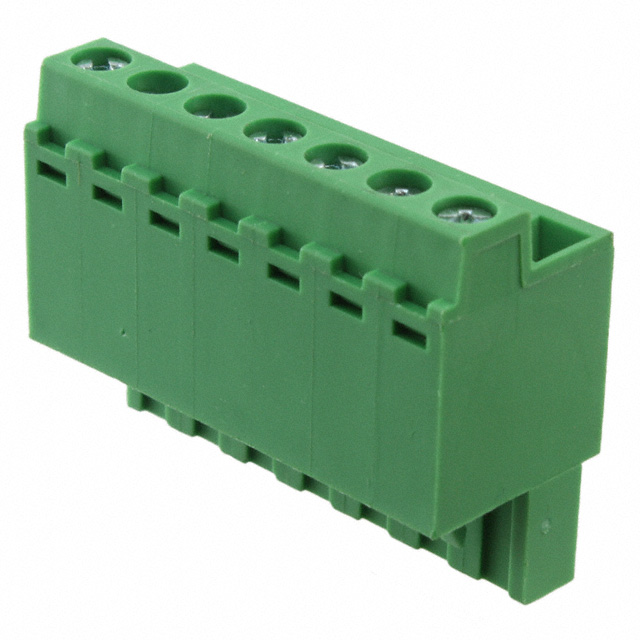

The Würth Elektronik 691373500007B is a 7-position terminal block plug with female sockets, designed for 0.200" (5.08mm) pitch applications. This component features 180° free-hanging in-line mounting with screw-pressure clip termination, rated for 16 A at 300 V (UL). The part is currently active in production with 671 units in stock. Substitute parts are identified when equivalent electrical ratings, mechanical dimensions, and termination methods align within acceptable tolerances for the WR-TBL Series 373B product line.

Key Parameters

Parameter	Specification
Number of Positions	7
Pitch	0.200" (5.08mm)
Plug Wire Entry	180°
Termination Style	Screw - Pressure Clip
Mounting Type	Free Hanging (In-Line)
Current Rating (UL)	16 A
Voltage Rating (UL)	300 V
Wire Gauge Range	12-24 AWG (0.2-3.3mm²)
Operating Temperature	-40°C ~ 105°C
Housing Material	Polyamide (PA66), Nylon 6/6
Flammability Rating	UL94 V-0

Substitute Part Grouping Explanation

Substitution eligibility for the 691373500007B is determined by strict alignment of the following critical parameters:

Mandatory Matching Parameters:

Number of positions: 7
Pitch: 0.200" (5.08mm)
Plug wire entry orientation: 180°
Termination method: Screw-pressure clip
Mounting configuration: Free hanging (in-line)
Flammability rating: UL94 V-0
Housing material family: Polyamide/Nylon

Acceptable Variation Parameters:

Current rating: UL rating of 15-16 A is acceptable
Voltage rating: UL rating of 300 V or higher is acceptable
Wire gauge range: Overlap of 12-24 AWG with substitute part range
Screw size: M2.5-M2.6 with torque specifications 0.45-0.6 Nm
Insulation height: Tolerance of ±0.010" (0.25mm)

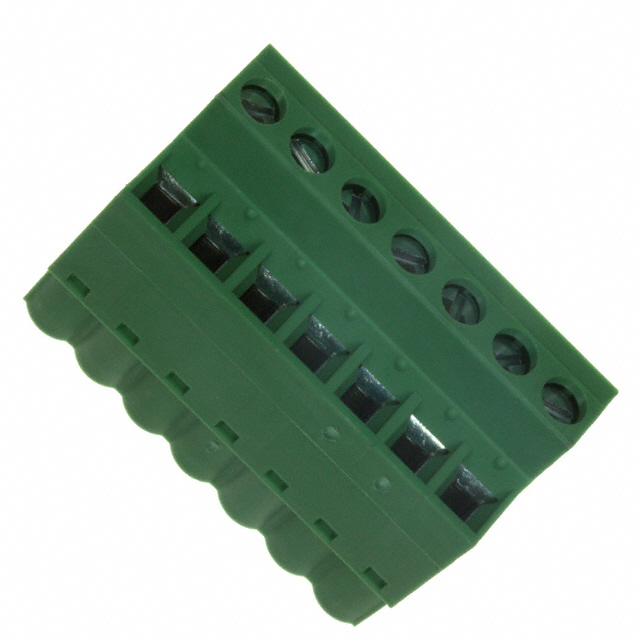

The Phoenix Contact 1777332 meets all mandatory matching parameters and falls within acceptable variation ranges for electrical and mechanical specifications.

Parameter Comparison

Parameter	691373500007B (Würth Elektronik)	1777332 (Phoenix Contact)	Compatibility
Number of Positions	7	7	Match
Pitch	0.200" (5.08mm)	0.200" (5.08mm)	Match
Plug Wire Entry	180°	180°	Match
Termination Style	Screw - Pressure Clip	Screw - Pressure Clip	Match
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Match
Current Rating (UL)	16 A	15 A	Acceptable
Voltage Rating (UL)	300 V	300 V	Match
Wire Gauge Range (AWG)	12-24	12-30	Acceptable
Wire Gauge Range (mm²)	0.2-3.3	0.2-2.5	Acceptable
Color	Green	Green	Match
Flammability Rating	UL94 V-0	UL94 V-0	Match
Housing Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA), Nylon	Match
Screw Size	M2.6	M2.5	Acceptable
Torque Specification	0.45 Nm (4.0 Lb-In)	0.5-0.6 Nm (4.4-5.3 Lb-In)	Acceptable
Insulation Height	0.587" (14.91mm)	0.591" (15.00mm)	Acceptable
RoHS Status	ROHS3 Compliant	RoHS Compliant	Match
ECCN	EAR99	EAR99	Match

Engineering Selection Recommendations

Both the Würth Elektronik 691373500007B and Phoenix Contact 1777332 are active production components with full RoHS and export compliance (EAR99). Selection between these parts should be based on:

Würth Elektronik 691373500007B: Select when WR-TBL Series 373B compatibility is required or when the higher wire gauge capacity (up to 3.3mm²) is necessary for applications using larger conductor sizes.

Phoenix Contact 1777332: Select when COMBICON FRONT-MSTB series integration is preferred or when the extended wire gauge range (12-30 AWG) provides additional flexibility for smaller gauge applications. The IEC current rating of 12 A provides additional specification data for international applications.

Both parts support identical pitch, position count, termination method, and mounting configuration. The 1 A difference in UL current rating (16 A vs. 15 A) and the 0.09mm difference in insulation height are within acceptable engineering tolerances for standard terminal block applications.

Frequently Asked Questions (FAQ)

Q: Can the Phoenix Contact 1777332 be used as a direct replacement for the Würth Elektronik 691373500007B?

A: Yes. Both parts share identical pitch (5.08mm), position count (7), wire entry orientation (180°), termination method (screw-pressure clip), and mounting type (free hanging in-line). Electrical ratings and mechanical dimensions are within acceptable tolerances.

Q: What is the significance of the wire gauge range difference?

A: The Würth part supports 12-24 AWG (0.2-3.3mm²), while the Phoenix Contact part supports 12-30 AWG (0.2-2.5mm²). The Würth part accommodates larger conductors up to 3.3mm², whereas the Phoenix Contact part extends the lower gauge range to 30 AWG. Selection depends on the specific wire sizes used in your application.

Q: Are there packaging differences between these parts?

A: Yes. The Würth Elektronik 691373500007B is supplied in Tray packaging (671 units in stock), while the Phoenix Contact 1777332 is supplied in Bulk packaging (972 units in stock). Packaging format may affect procurement, handling, and storage requirements.

Q: Do both parts meet the same compliance standards?

A: Both parts are RoHS compliant and classified as EAR99 for export control. The Würth part carries ROHS3 certification, while the Phoenix Contact part carries standard RoHS certification. Both achieve UL94 V-0 flammability rating and are suitable for applications requiring equivalent safety compliance.

Q: What is the difference in screw specifications?

A: The Würth part uses M2.6 screws with 0.45 Nm torque specification, while the Phoenix Contact part uses M2.5 screws with 0.5-0.6 Nm torque specification. These minor differences do not affect functional compatibility but should be noted during assembly and maintenance procedures.
